Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

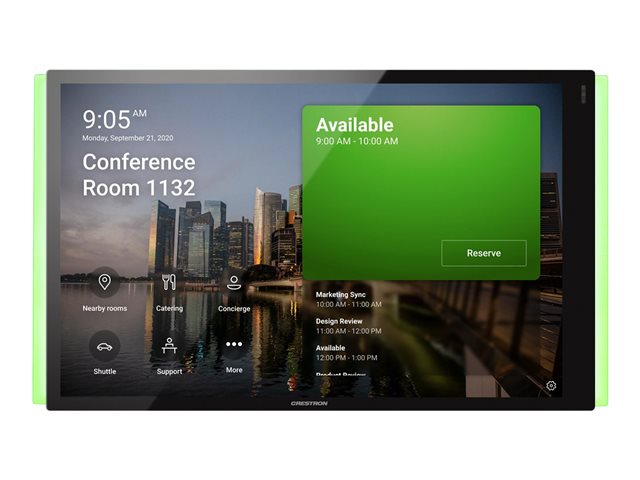

A stylish and versatile 10.1" wall-mount touch screen designed specifically to run the Microsoft Teams Panels scheduling application. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming. Includes one TSW-1070-LB series room availability light bar with the touch screen for a complete room scheduling solution.


Features Summary

  • Functional
    The TSS-1070 provides a compact unit for scheduling applications that mounts over a standard electrical box or cutout. The TSS-1070 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected to the network over Wi‑Fi communications via a local wireless access point (WAP).
  • Versatile
    Crestron offers a variety of mounting options for mounting the TSS-1070 to drywall, masonry, glass, mullions, and other surfaces. Optional light bar and hallway sign accessories are available to increase the visibility of the room availability status.
  • Reliable
    The TSS-1070 is purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the latest features are available, the TSS-1070 checks nightly for app updates and loads the latest version automatically.
  • Secure
    The TSS-1070 employs enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions.
  • Manageable
    The TSS-1070 features cloud‑based provisioning and management, which streamlines configuring, monitoring, and updating the touch screen on the network. The TSS-1070 also supports SNMP, so it can be monitored by your IT administrator.

Specification Summary

Product Description
Crestron Room Scheduling Touch Screen TSS-1070-T-B-S-LB KIT - for Microsoft Teams - room manager - 802.11a/b/g/n/ac, Bluetooth - smooth black
Product Type
Room manager
Integrated Sensors
Proximity sensor
Integrated Components
Speaker, Bluetooth proximity detection beacon
Power Source
PoE
Package Content
TSW-1070-LB-B-S light bar
Connectivity
Wireless, wired - 802.11a/b/g/n/ac, Bluetooth - 10/100 Ethernet
Frequency Band
2.4 Ghz, 5 GHz
Input Type
Touch screen
Display
10.1" - TFT - colour - Yes
Colour
Smooth black
Dimensions (WxDxH)
25.9 cm x 5.8 cm x 14.9 cm

Specifications

EAN / GTIN:
8592978328139
General
Product Type
Room manager
Integrated Components
Speaker, Bluetooth proximity detection beacon
Integrated Sensors
Proximity sensor
Power Source
PoE
Package Content
TSW-1070-LB-B-S light bar
Connectivity Technology
Wireless, wired - Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth
Max Range Open Space
15 m
Frequency Band
2.4 Ghz, 5 GHz
Display
10.1" - TFT - colour
Display Resolution
1920 x 1200 pixels
Touchscreen
Yes
Interfaces Details
LAN/power ¦ 2 x USB 2.0
Features
Wall mountable, auto brightness control, capacitive touch screen, reset button, surface mountable, projected capacitive touch screen, PoE+, cloud managed, auto-negotiation, DHCP support, power over Ethernet (PoE), SSH support, SNMP support, IPv6 support, IPv4 support, half duplex mode, full duplex mode, PoE+
Control Unit
Input Type
Touch screen
Miscellaneous
Product Material
Plastic
Colour
Smooth black
Encryption Algorithm
SSL, TLS, 128-bit WEP, 64-bit WEP, WPA, WPA2-PSK, TKIP, AES
Compliant Standards
IEEE 802.1x, IEEE 802.3at, IEEE 802.3af, IC, FCC Part 15 B
Dimensions & Weight
Width
25.9 cm
Depth
5.8 cm
Height
14.9 cm
Weight
730 g
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
