Crestron Room Scheduling Touch Screen TSS-1070-B-S

Images Manuals

Images for illustrative purposes

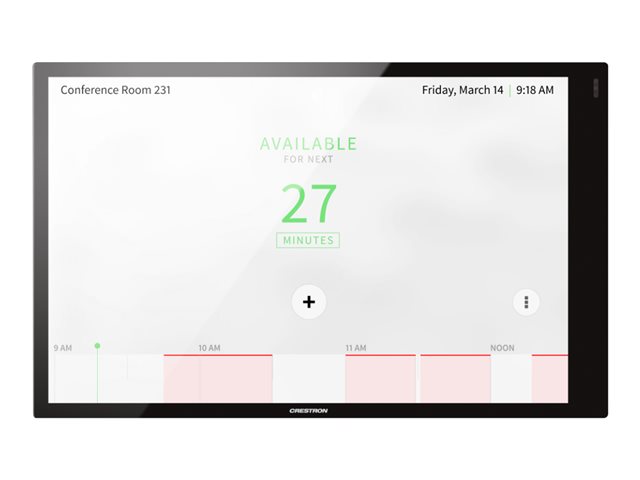

Crestron Room Scheduling Touch Screen TSS-1070-B-S

- Visit the CRESTRON ELECTRONICS Store (TSS-1070-B-S) - (ECE6759111)

Crestron Room Scheduling Touch Screen TSS-1070-B-S - Room manager - wired, wireless - 802.11a/b/g/n/ac, Bluetooth - 2.4 Ghz, 5 GHz - 10/100 Ethernet - smooth black

Functional
Versatile
Reliable
Secure
Manageable
Cost‑effective

FREE Delivery on orders over €250

0 Available to Ship
Restock 11-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€2098.38~~

€1229.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

A stylish and versatile wall mount touch screen designed specifically for enterprise room scheduling applications. Integrates directly with various room scheduling services. Installs quickly and easily, with simple web-based configuration and cloud-based management and requires no control system or programming. The TSS-1070 is compatible with Wall-Smart flush wall-mounting accessories.

Features Summary

Functional
The TSS-1070 provides everything needed for scheduling applications in one compact unit that mounts over a standard electrical box or cutout. The TSS-1070 offers high‑speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected the network over Wi‑Fi communications via a local wireless access point (WAP).
Versatile
Crestron offers a variety of mounting options for mounting the TSS-1070 to drywall, masonry, glass, mullions, and other surfaces. Optional light bar and hallway sign accessories are available to increase the visibility of the room availability status.
Reliable
Consumer tablets are meant for mobile handheld use and not permanent installs. By contrast, Crestron touch screens are purpose‑built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the touch screen is using the latest features, the TSS-1070 checks nightly for app updates and loads the latest version automatically.
Secure
Crestron touch screens employ enterprise-grade networking with robust security features such as 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration. These features protect your network against service interruptions and malicious intrusions and ensure compliance with your organization's network policies.
Manageable
Crestron touch screens feature cloud‑based provisioning and management to streamline the process of configuring and monitoring every touch screen on the network and keeping them updated. They also support SNMP, so they can be monitored by your IT administrator alongside every other device on the network.
Cost‑effective
Crestron touch screens offer clear advantages over other alternatives, but that doesn't mean they cost more. The TSS-1070 series delivers a comparable or lower cost solution compared to buying tablets with all the extra peripherals and maintenance they require.

Specification Summary

Product Description

Crestron Room Scheduling Touch Screen TSS-1070-B-S - room manager - 802.11a/b/g/n/ac, Bluetooth - smooth black

Product Type

Room manager

Power Source

PoE

Connectivity

Wired, wireless - 802.11a/b/g/n/ac, Bluetooth - 10/100 Ethernet

Frequency Band

2.4 Ghz, 5 GHz

Input Type

Touch screen

Display

10.1" - TFT - 24-bit colour

Colour

Smooth black

Dimensions (WxDxH)

24 cm x 5.1 cm x 14.9 cm

Specifications

EAN / GTIN:

8592978343354

General

Product Type

Room manager

Power Source

PoE

Connectivity Technology

Wired, wireless - Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Bluetooth

Max Range Open Space

15 m

Frequency Band

2.4 Ghz, 5 GHz

Display

10.1" - TFT - 24-bit colour

Display Resolution

1920 x 1200 pixels

Interfaces Details

LAN/power ¦ 2 x USB 2.0

Features

400 cd/m2 brightness, brightness control, capacitive touch screen, edge-to-edge, reset button, 1000:1 contrast, PoE+, auto-negotiation, auto-switching, CIP support, DHCP support, full duplex mode, half duplex mode, IPv4 support, IPv6 support, SNMP support, TCP support, UDP support, SSH support

Control Unit

Input Type

Touch screen

Miscellaneous

Product Material

Plastic

Colour

Smooth black

Encryption Algorithm

SSL, TLS, 64-bit WEP, 128-bit WEP, WPA, WPA2-PSK, TKIP, AES

Compliant Standards

IEEE 802.1x, IC, FCC Part 15 Class B, BS 4662, DIN 49073, IEEE 802.3at

Dimensions & Weight

Width

24 cm

Depth

5.1 cm

Height

14.9 cm

Weight

730 g

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

10 - 95% (non-condensing)
