EAN / GTIN:
4713213518847
Host Connectivity
2.5 Gigabit Ethernet
Total Storage Capacity
0 GB
Installed Devices / Modules Qty
0 (installed) / 4 (max)
Built-in Devices
Led panel
Processors Installed
1 x AMD Ryzen Embedded V1500B 2.2 GHz
Number of Cores
Quad-Core
RAM
8 GB (installed) / 64 GB (supported) - DDR4
Flash Memory Installed
5 GB
Interface Type
SATA 6Gb/s
Data Link Protocol
100Mb LAN, 1GbE, 2.5GbE
Features
Jumbo Frames support, WOL, hardware encryption, reset button, USB One Touch Copy, AES encryption
Encryption Algorithm
AES-NI
Expansion Bays
4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
2 (total) / 1 (free) x SO-DIMM 260-pin ¦ 2 (total) / 2 (free) x M.2 2280 ¦ 2 (total) / 2 (free) x PCI Express 3.0 x4

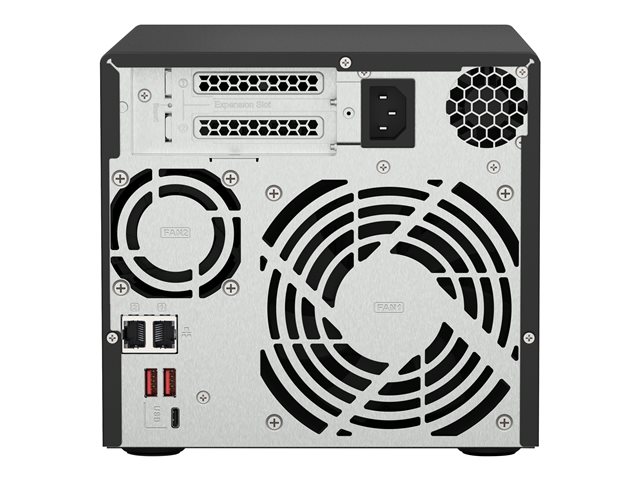

Interfaces
2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 3 x USB 3.2 Gen 2 - Type A ¦ 1 x USB 3.2 Gen 1 - Type C
Cables Included
1 x network cable
Features
Dual boot, alarm buzzer, built-in 2 cooling fans
Compliant Standards
ISO 7779
Included Accessories
12 x flat head screws (for 2.5" HDD), 12 x flat head screws (for 3.5" HDD), 2 x hard drive security key, 2 x M.2 SSD heatsink, power cable
Power Device
Internal power supply
Voltage Required
AC 100 - 240 V
Power Consumption Operational
29.792 Watt
Power Consumption Stand by
19.576 Watt
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
