Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The TS-464eU is powered by Intel Celeron N5095/5105 quad-core processor (burst up to 2.9 GHz). The space-efficient short depth design makes it easy to install in small media cabinets or places with a lot of cabling. With expandable storage capacity and feature-rich apps, the TS-464eU surpasses the previous generation.


Features Summary

  • 2.5GbE connectivity
    Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
  • HDMI Output
    Supports 4K media playback and real-time transcoding.
  • NVMe SSD application
    Two M.2 PCIe NVMe SSD slots support Qtier auto-tiering technology and SSD caching.
  • USB interface
    Two USB 3.2 Gen 2 10Gbps ports for faster data transfer.
  • Backup and data recovery
    Protects PC/Macs, virtual machines, software containers, cloud data, and SaaS services.
  • Hybrid cloud applications
    Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
  • Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB
    The TS-464eU is powered by Intel Celeron N5095/N5105 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.
  • Build a High-Speed 2.5GbE Network Environment
    QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
  • Future-proof your IT infrastructure for high-speed networks
    The TS-464eU is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows /Linux workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
  • Enhance productivity with multiple USB ports
    With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-464eU. UPS, printers, and other compatible USB devices can also be connected for greater functionality and application potential.
  • SSD Caching and Auto Tiering for Optimized Storage Efficiency
    The TS-464eU supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier Technology empowers the TS-464eU with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Specification Summary

Product Description

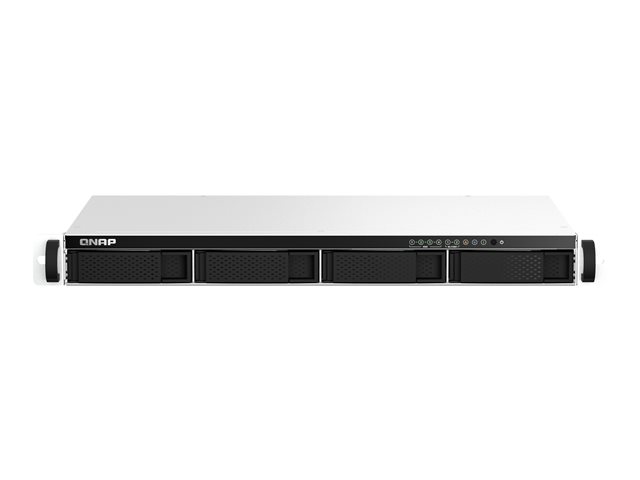

QNAP TS-464eU - NAS server
Device Type
NAS server
Host Connectivity
2.5 Gigabit Ethernet
Enclosure Type
Rack-mountable - 1U
Installed Devices / Modules Qty
0 (installed) / 4 (max)
Dimensions (WxDxH)
48.26 cm x 32.133 cm x 4.33 cm
Weight
4.35 kg ()
Processor
1 x Intel Celeron N5095 (Quad-Core)
Storage Controller
RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD
Networking
10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Performance
Concurrent connections (CIFS): 1500 - (with maximum memory) ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum number of targets LUN: 256 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32 ¦ Maximum volume size: 250 TB ¦ Maximum LUN size: 250 TB
RAM
8 GB
Power
AC 100-240 V
Storage Operating System
QNAP QTS 5.0.1
System Requirements
Apple MacOS X 10.10 or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11, IBM AIX 7, Oracle Solaris 10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
4711103082034
General
Device Type
NAS server
Host Connectivity
2.5 Gigabit Ethernet
Enclosure Type
Rack-mountable - 1U
Total Storage Capacity
0 GB
Installed Devices / Modules Qty
0 (installed) / 4 (max)
Width
48.26 cm
Depth
32.133 cm
Height
4.33 cm
Weight
4.35 kg ()
Processor / Memory
Processors Installed
1 x Intel Celeron N5095
Number of Cores
Quad-Core
Max Supported Qty
1
Max Turbo Speed
2.9 GHz
RAM
8 GB
Flash Memory Installed
4 GB
Storage Controller
Type
RAID
Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD
Networking
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Network / Transport Protocol
QuFTP, FTP, SFTP, TFTP, IPv4, IPv6, DDNS, QBelt, PPTP, L2TP, IPSec, WireGuard
Remote Management Protocol
SNMP 3, SNMP 2, SSH, Telnet, HTTPS, RADIUS
Network Services Compatibility
Microsoft CIFS, Apple File Protocol (AFP), Server Message Block (SMB), Network File System v3 (NFS v3), Network File System v4 (NFS v4), Web-based Distributed Authoring and Versioning (WebDAV)
Performance
Concurrent connections (CIFS): 1500 - (with maximum memory) ¦ Maximum pool size: 308 TB ¦ Maximum number of storage pool: 128 ¦ Maximum number of volume: 128 ¦ Maximum shared folder size: 250 TB ¦ Maximum number of shared folder: 512 ¦ Maximum number of targets LUN: 256 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32 ¦ Maximum volume size: 250 TB ¦ Maximum LUN size: 250 TB
Features
Floating point unit, built-in hardware transcoding, SSD cache acceleration support, WOL, Jumbo Frames support, built-in buzzer, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, MPIO, online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, EXT4 file system, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD Cache RAID, SSD profiling tool, External Device Management, MTP, FXP support, file station, Object Storage, domain security, Domain Controller, shared folder permission, advanced folder permission, Windows ACL, group quota, folder quota, home folder, Resource Monitor, Network Recycle Bin, Smart Fan, schedule on/off, Virtual Switch, port trunking, VLAN support, DHCP server, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, firewall protection, Qsync, HybridMount, Hyper Data Protector, Qsirch, QuMagie, HD Station, LDAP server, RADIUS support, SQL Server, DA Driver Analyzer, QuWAN, QmailAgent, Boxafe
Encryption Algorithm
AES-NI, 256-bit AES, FIPS 140-2, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
Expansion / Connectivity
Expansion Bays
4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
Expansion Slots
2 (total) / 2 (free) x M.2 2280
Interfaces
2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 1 x HDMI output
Miscellaneous
Cables Included
1 x network cable
Features
Dual boot, built-in 3 cooling fans, Secure Erase
Included Accessories
Power cable, 16 x flat head screws (for 3.5" HDD), 12 x flat head screws (for 2.5" HDD), 2 x hangers, 2 x holders
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V
Power Consumption Operational
35.297 Watt (with drives fully populated)
Power Consumption Stand by
21.105 Watt
Power Provided
100 Watt
Software / System Requirements
Storage Operating System
QNAP QTS 5.0.1
Software Included
IronWolf Health Management, McAfee
OS Required
Apple MacOS X 10.10 or later, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows 7 / 8 / 10 / 11, IBM AIX 7, Oracle Solaris 10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - accessories - 1 year
Dimensions & Weight (Shipping)
Shipping Weight
5.91 kg
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
