EAN / GTIN:
4711103082171
Host Connectivity
2.5 Gigabit Ethernet
Total Storage Capacity
0 GB
Installed Devices / Modules Qty
0 (installed) / 2 (max)
Built-in Devices
Led panel
Localisation
Danish, Hungarian, Czech, Thai, Chinese (traditional), Brazilian Portuguese, English, German, French, Italian, Norwegian, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Romanian, Japanese, Korean
Processors Installed
1 x Intel Celeron J6412
Number of Cores
Quad-Core
RAM
8 GB (installed) / 8 GB (supported)
Flash Memory Installed
4 GB
Interface Type
SATA 6Gb/s
RAID Level
RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Data Link Protocol
10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Network / Transport Protocol
PPTP, L2TP, IPSec, iSCSI, DDNS, IPv4, IPv6, CIFS, WireGuard, QBelt, QuFTP, OpenVPN
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, RADIUS
Network Services Compatibility
Microsoft CIFS, FTP, Apple File Protocol (AFP), HTTP, HTTPS, SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance
Concurrent connections (CIFS): 1500 ¦ Maximum number of storage pool: 128 ¦ Maximum number of volume: 128 ¦ Maximum volume size: 250 TB ¦ Maximum pool size: 308 TB ¦ Maximum LUN size: 250 TB ¦ Maximum number of targets LUN: 256 ¦ Minimum snapshot interval: 5 min ¦ Maximum FTP connection: 1024 ¦ Local user account: 4096 ¦ Local group account: 512 ¦ Domain user/group account: 200000 ¦ Log recording: 3000 events per second ¦ Virtual hosts: 32
Features
VLAN support, WOL, Jumbo Frames support, DHCP server, FTP server, Domain Controller, built-in hardware transcoding, file station, WebDAV server support, port trunking, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Qsirch, Q'center (NAS CMS), SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, MTP, Object Storage, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, MPIO, online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, schedule on/off, iSCSI service, SSD Cache RAID, network drive mount, user quota management
Encryption Algorithm
SSL, TLS, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2, AES-NI, TLS 1.3
Expansion Bays
2 (total) / 2 (free) x hot-swap - 2.5" / 3.5"

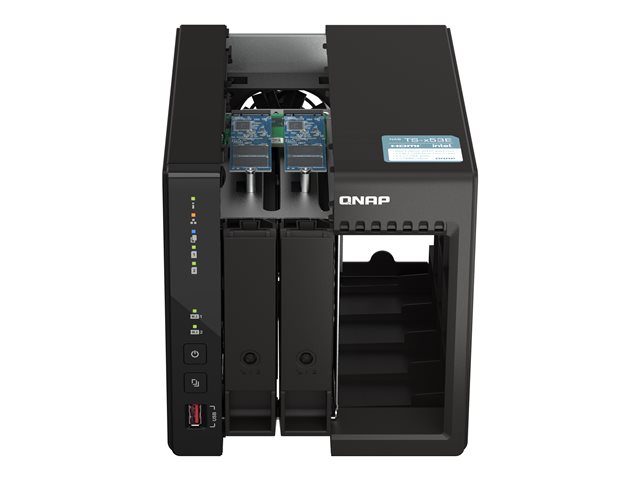

Expansion Slots
2 (total) / 0 (free) x M.2 2280

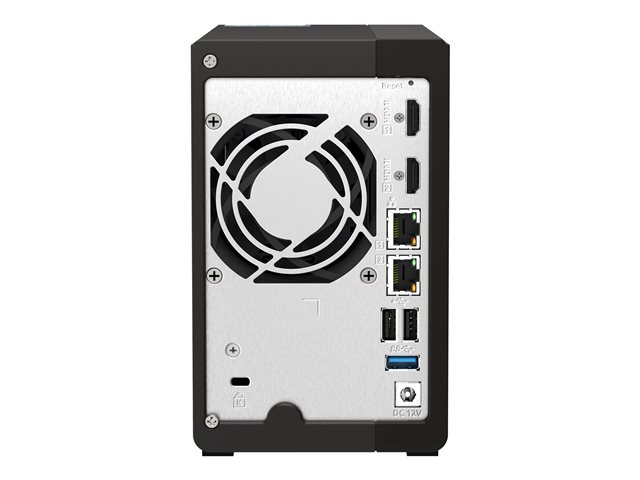

Interfaces
2 x 2.5 Gigabit Ethernet - RJ-45 ¦ 2 x USB 2.0 - Type A ¦ 2 x USB 3.2 Gen 2 - Type A ¦ 2 x HDMI output
Cables Included
1 x network cable
Features
Security lock slot (cable lock sold separately), built-in firewall, Secure Erase, Smart Fan, 70mm cooling fan
Security Slot Type
Kensington security slot
Compliant Standards
FIPS 140-2
Included Accessories
Power cable
Power Device
External power adapter
Voltage Required
AC 100-240 V
Power Consumption Operational
18.09 watt
Software / System Requirements
Storage Operating System
QNAP QTS 5.0.0
Software Included
McAfee AntiVirus, Windows Update Agent, vSphere plug-in for VMware, QNAP Virtualization Station, IronWolf Health Management
OS Required
Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, QNAP QVR Pro, Microsoft Windows 7 / 8 / 10 / 11, Ubuntu Linux 14.4 (64-bit), QNAP QVR Elite
Service & Support
Limited warranty - 3 years
Dimensions & Weight (Shipping)
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% RH (non-condensing)
