Viewsonic TeamJoin TRS10-UB

Name: Viewsonic TeamJoin TRS10-UB
Brand: VIEWSONIC
SKU: ECE11451265
Price: 2199.74 EUR
Availability: InStock

View all VIEWSONIC Video Conferencing - Visit the VIEWSONIC Store (TRS10-UB) - (ECE11451265)

Model: Viewsonic TeamJoin

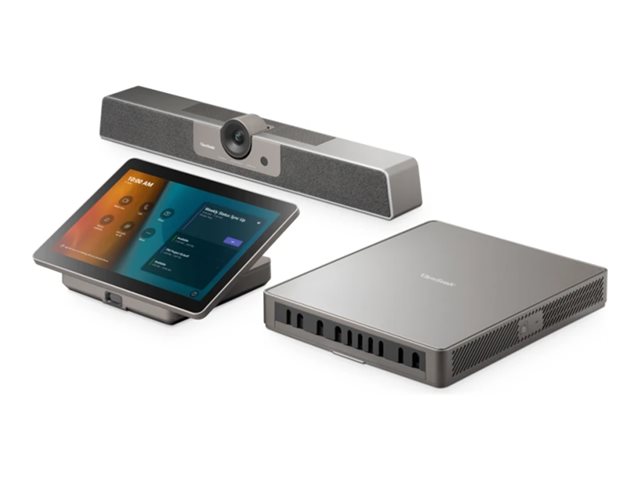

TeamJoin TRS10-UB - For Microsoft Teams Rooms - video conferencing kit (Viewsonic TeamJoin MPC310-W31-TU computing engine, Viewsonic TeamJoin MRC1010-TN touch console, ViewSonic UMB202 4K Video Bar System) - Certified for Microsoft Teams Rooms

High-resolution display
Efficient audio capture
Comprehensive connectivity
Dynamic video capabilities
Smart presence detection

FREE Delivery on orders over €250

8 Available to Ship
Order within 8Hrs 26Mins for: FREE Delivery (8 Jun or 9 Jun)

€2199.74 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ViewSonic TeamJoin TRS10-UB offers an integrated solution ideal for Microsoft Teams Rooms, combining multiple high-performance components into a single, intuitive system. The device features a 10.1-inch touchscreen display with a native resolution of 1920 x 1200, ensuring clear visuals that enhance collaborative experiences. With impressive brightness and anti-glare technology, it provides an optimal viewing experience in diverse environments. Equipped with a comprehensive audio and video setup, the TRS10-UB incorporates built-in microphones, speakers, and a camera, designed to facilitate natural interaction during meetings. The device features beamforming microphones that capture audio from multiple directions, complemented by an array capable of picking up sound from up to 8 m away. Networking is seamless with wired and wireless options supported, making it versatile for different setups and configurations.

Features Summary

High-resolution display
The 10.1-inch TFT active matrix display boasts a native resolution of 1920 x 1200, providing clarity and detail for all visual content.
Efficient audio capture
The integrated 6 beam-forming microphones operate in a way that focuses on sound sources, ensuring clear communication even in noisy environments.
Comprehensive connectivity
Offering multiple connectivity options, including USB-C, HDMI, and Ethernet, it enables easy integration into existing setups.
Dynamic video capabilities
With digital video capture resolutions up to 3840 x 2160, the system supports high-quality video conferencing with various frame rates.
Smart presence detection
Incorporating a presence sensor and motion detection, the TRS10-UB adapts to meeting scenarios, enhancing user experience and functionality.

Specification Summary

Product Description

Viewsonic TeamJoin TRS10-UB - for Microsoft Teams Rooms - video conferencing kit

Device Type

Video conferencing kit

Kit Content

Viewsonic TeamJoin MPC310-W31-TU computing engine, Viewsonic TeamJoin MRC1010-TN touch console, ViewSonic UMB202 4K Video Bar System

Display

10.1" TFT / 1920 x 1200

Video Input

Digital camera - SuperSpeed USB 3.0

Audio Input

6 beam-forming microphones - beamforming

Audio Output

Speaker(s)

Input Device

10.1" touchscreen (wired)

PC Configuration

Core i3-1220P, 8GB RAM, 128GB SSD

Networking

Network adapter - Gigabit Ethernet, Bluetooth 5.3

Software Certification

Certified for Microsoft Teams Rooms

System Requirements

Windows 11, Windows 10, Windows 8.1, Microsoft Windows 7

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

766907027778

General

Device Type

Video conferencing kit

Kit Content

Viewsonic TeamJoin MPC310-W31-TU computing engine, Viewsonic TeamJoin MRC1010-TN touch console, ViewSonic UMB202 4K Video Bar System

Dimensions & Weight Details

Compute system - Width 23 cm Depth 27.55 cm Height 4.3 cm Weight 1.86 kg ¦ Touch screen - Width 24.5 cm Depth 9.8 cm Height 16 cm Weight 930 g ¦ Sound bar - Width 46.17 cm Depth 9.3 cm Height 7.64 cm

Built-in Devices

Presence sensor, motion sensor, antenna, speaker, camera, microphone array

Display

Technology

TFT active matrix

Diagonal Size

10.1"

Native Resolution

1920 x 1200

Image Brightness

300 cd/m²

Image Contrast Ratio

1000:1

Colour Gamut

72% NTSC

Monitor Features

Anti-glare, edge-lit LED backlight, LED-backlit, 10-point multi-touch, 25 ms touch down latency

Video Input

Type

Digital camera

Interface Type

SuperSpeed USB 3.0

Digital Video Capture Resolution

3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 800 x 600, 640 x 480, 640 x 360, 480 x 270, 352 x 288, 320 x 240

Digital Zoom

Features

Direction-of-Arrival (DOA) voice tracking technology, auto-framing, 8 m microphone pick up range, 120° diagonal field of view (DFOV), 109° horizontal field of view (HFOV), 74.4° vertical field of view (VFOV), ePTZ, digital noise reduction, white balance, exposure mode, voice tracking, 12 megapixels

Video Output

PC Configuration

Core i3-1220P, 8GB RAM, 128GB SSD

Audio Input

Type

6 beam-forming microphones - integrated

Microphone Operation Mode

Beamforming

Audio Output

Type

Speaker(s)

Output Power / Channel

11 Watt

Input Device

Type

10.1" touchscreen

Connectivity Technology

Wired

Features

1920 x 1200 resolution, LED backlight, multi-touch, security slot (Kensington security lock compatible)

Networking

Type

Network adapter

Connectivity Technology

Wired, wireless

Data Link Protocol

Gigabit Ethernet, Bluetooth 5.3

Compliant Standards

Bluetooth 5.3, IEEE 802.3at

Expansion / Connectivity

Interfaces

3 x USB-C 3.0 - 24 pin USB-C ¦ USB 2.0 - 4 pin USB Type A ¦ Display / video - HDMI input - 19 pin HDMI Type A ¦ 2 x audio out - 3.5mm audio jack ¦ 3 x network / power - 10/100/1G Ethernet - RJ-45 ¦ 2 x display / video - HDMI output - 19 pin HDMI Type A ¦ 4 x USB 3.0 downstream

Miscellaneous

Cables Included

1 x USB-C cable - 1.8 m

Mounting Kit

Included

Included Accessories

Mounting bracket, remote control, screws, wall mount component, lens cover

Software Certification

Certified for Microsoft Teams Rooms

Software / System Requirements

Software Included

Windows 11 IoT Enterprise
