EAN / GTIN:
6935364052553
Device Type

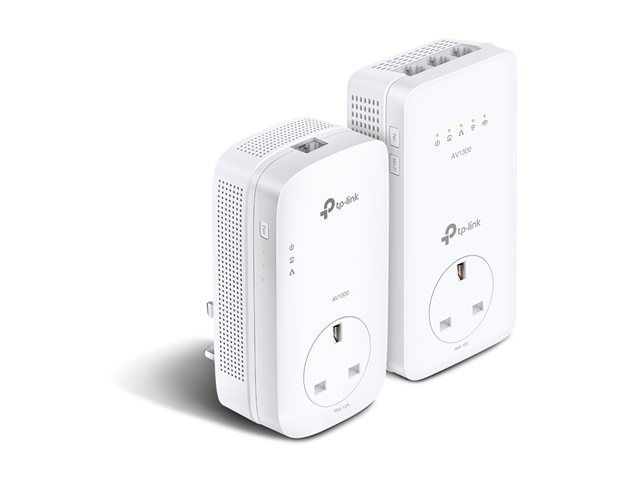

Powerline adapter kit
Kit Content
TL-WPA8631P powerline adapter, TL-PA8010P powerline adapter
Enclosure Type
Wall-pluggable
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 1901
Frequency Band
2.4 GHz / 5 GHz
Data Transfer Rate
1300 Mbps
Performance
Maximum data rate (2.4 GHz): 300 Mbps ¦ Maximum data rate (5 GHz): 867 Mbps
Routing Protocol
IGMP, IGMPv2, IGMPv3
Encryption Algorithm
WPA-PSK, WPA2-PSK, WEP, 128-bit AES
Authentication Method
Radio Service Set ID (SSID)
Features
OneMesh support, 2x2 MIMO technology, pair button, reset button, Wi-Fi on/off button, LED on/off button, Wi-Fi Auto-Sync, Smart Roaming, parental control, integrated power socket, beamforming technology, IPTV support, One-Touch Connect
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, HomePlug AV, HomePlug AV 2.0, IEEE 1901, Plug and Play, RoHS
Status Indicators
Power, powerline, LAN, 2.4/5 GHz
Interfaces
1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - on extender ¦ 1 x HomePlug AV 2.0 ¦ 1 x HomePlug AV 2.0 - on extender
Power Device
Internal power supply
Cables Included
2 x network cable
Software / System Requirements
OS Required
Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Apple MacOS, Linux
Dimensions & Weight Details
Extender - Width 7.5 cm Depth 4.2 cm Height 15.2 cm ¦ Adapter - Width 7.2 cm Depth 4.2 cm Height 13.1 cm
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
