Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.

TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.


Specification Summary

Product Description

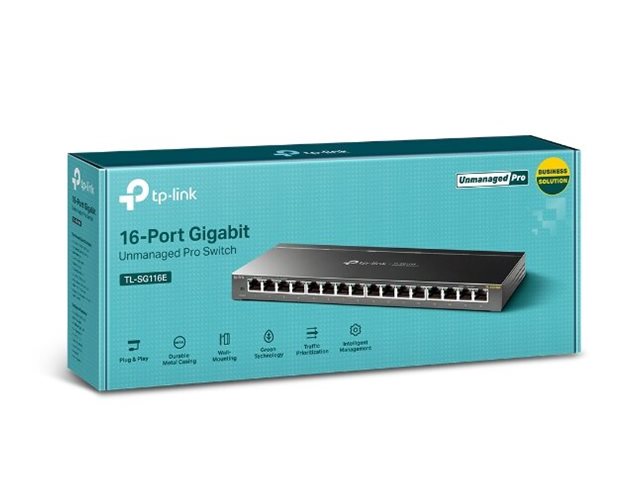

TP-Link TL-SG116E Unmanaged Pro - switch - 16 ports - unmanaged
Device Type
Switch - 16 ports - unmanaged
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000
Performance
Packet forwarding rate: 23.81 Mpps ¦ Switching capacity: 32 Gbps
Capacity
VLAN IDs: 4000 ¦ VLANs supported: 32
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Features
Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Cable Diagnostics Function, fanless, loop prevention, Storm Control, rate limit, Static Link Aggregation
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Dimensions (WxDxH)
28.6 cm x 11.17 cm x 2.54 cm

Specifications

EAN / GTIN:
6935364084318
General
Device Type
Switch - 16 ports - unmanaged
Enclosure Type
Desktop
Subtype
Gigabit Ethernet
Ports
16 x 10/100/1000
Performance
Packet forwarding rate: 23.81 Mpps ¦ Switching capacity: 32 Gbps
Capacity
VLAN IDs: 4000 ¦ VLANs supported: 32
MAC Address Table Size
8K entries
Jumbo Frame Support
9KB
Features
Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Cable Diagnostics Function, fanless, loop prevention, Storm Control, rate limit, Static Link Aggregation
Compliant Standards
IEEE 802.3u, IEEE 802.3i, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x
Expansion / Connectivity
Interfaces
16 x 1000Base-T RJ-45
Power
Power Device
External power adapter
Power Consumption Operational
9.3 watt
Miscellaneous
Included Accessories
Rubber feet
Compliant Standards
FCC, RoHS
Dimensions & Weight
Width
28.6 cm
Depth
11.17 cm
Height
2.54 cm
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
