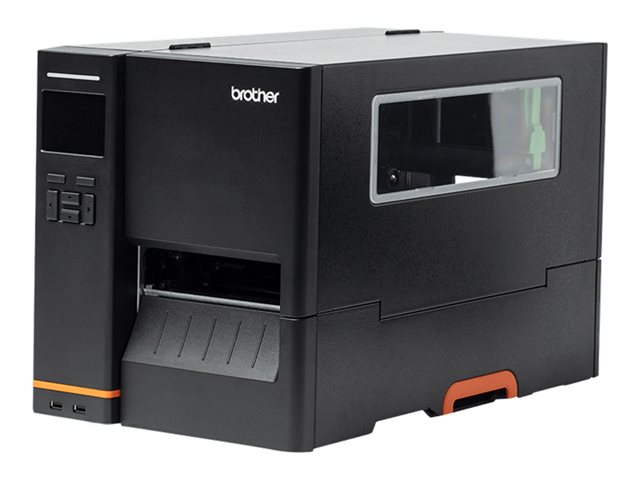

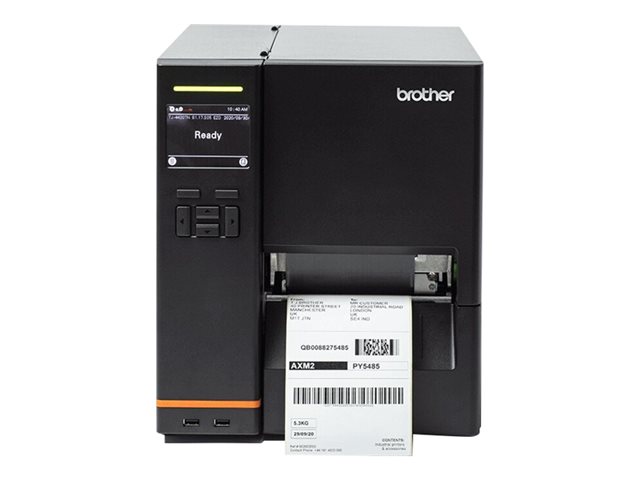

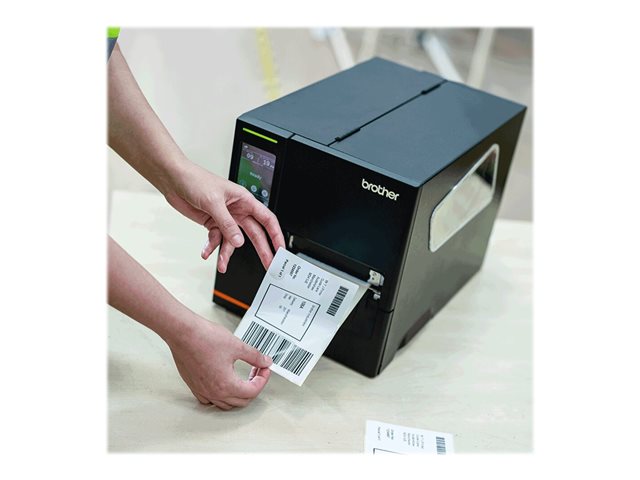

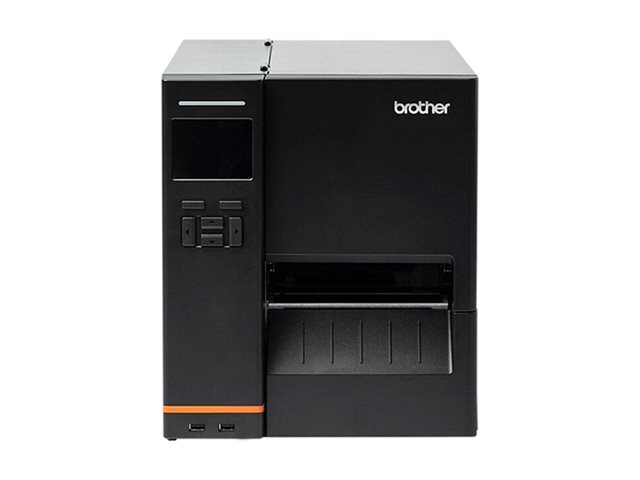

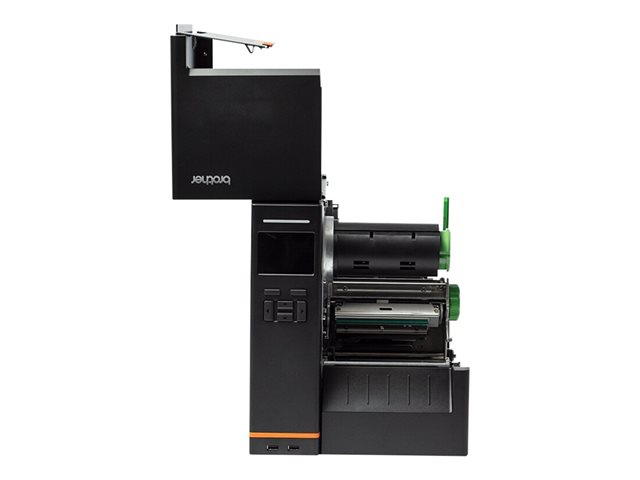

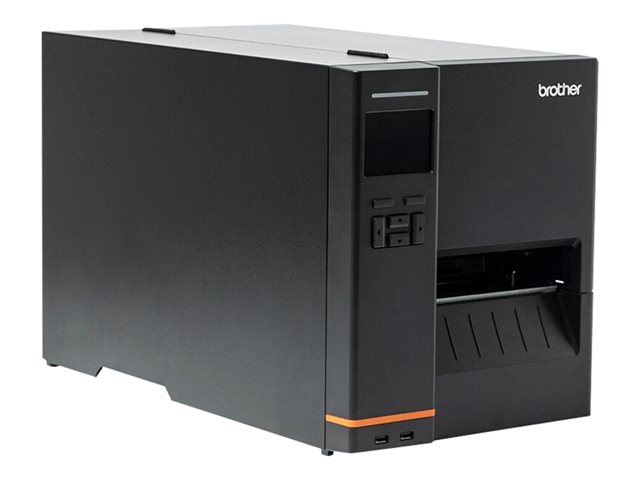

Brother Titan Industrial Printer TJ-4520TN

Images for illustrative purposes

Brother Titan Industrial Printer TJ-4520TN

Name: Brother Titan Industrial Printer TJ-4520TN
Brand: BROTHER
SKU: MMECB71757
Price: 1475.48 EUR
Availability: InStock

View all BROTHER Label Printers - Visit the BROTHER Store (TJ4520TNZU1) - (MMECB71757)

Model: Brother Titan

Titan Industrial Printer TJ-4520TN - label printer - B/W - direct thermal / thermal transfer

High-quality thermal transfer printing
Industry standard printer commands as standard
Fast print speed and processing to improve efficiency
Connectivity to suit your requirements

FREE Delivery on orders over €250

1 Available to Ship
Order within 0Hrs 59Mins for: FREE Delivery (8 Jun or 9 Jun)

€1475.48 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4520TN industrial label printer.

With fast print speeds, ZPL2 emulation compatibility and high ribbon capacity - this durable industrial printer has been built with you in mind.

Experience efficient labelling solutions and performance you can rely on with the TJ-4520TN industrial label printer.

As well as 3 years return-to-base warranty included as standard on this product, Brother offers a range of

to suit your requirements - including onsite.

Features Summary

High-quality thermal transfer printing
The 300dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so can the Brother TD-4520TN label printer.
Industry standard printer commands as standard
Print from Windows using the standard printer driver, or integrate the Brother TD-4520TN label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.
Fast print speed and processing to improve efficiency
A fast print speed of 127 mm/second (5 inches per second) means less time waiting for your labels to print and more time being productive.
Connectivity to suit your requirements
With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4520TN will have no problems connecting to your existing equipment and infrastructure.

Specification Summary

Product Description

Brother Titan Industrial Printer TJ-4520TN - label printer - B/W - direct thermal / thermal transfer

Printer Type

Label printer - direct thermal / thermal transfer - B/W

Weight

15.35 kg

Max Media Size

Roll (11.4 cm)

Max Media Size (Custom)

114 mm

Print Speed

Up to 305 mm/sec - max speed

Max Resolution (B&W)

300 dpi

Interface

LAN, serial, USB host, USB 2.0

RAM Installed (Max)

256 MB

Flash Memory Installed (Max)

512 MB

Language Simulation

EPL2, ZPL II, DPL, FBPL-EZD

Barcodes

Code 11, Code 39, Code 93, Code 128, UPC-A, UPC-E, EAN-13, EAN-8, EAN-128, GS1-128, Postnet, MSI, Plessey, Interleaved 2 of 5, Industrial 2 of 5, ITF-14, EAN-14, LOGMARS, Codabar, Telepen, PLANET, Deutsche Post Identcode, Deutsche Post Leitcode, Datalogic 2 of 5, China Post, Codablock F, PDF417, Code 49, GS1 DataMatrix, MaxiCode, QR code, MicroPDF417, TLC39, GS1 DataBar, Aztec code

Media Type

Continuous labels, black mark labels, die cut labels, fanfold labels, tags

Features

Open head sensor, reflective/black mark sensor, ribbon encode sensor, ribbon end sensor, transmissive/gap sensor, label detection sensor

Networking

Print server

Power

AC 100-240 V

System Requirements

Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2008, Microsoft Windows Server 2008 R2, Windows 8.1, Microsoft Windows 7, Windows 10, Windows 8, Microsoft Windows Vista, Android 5.0 or later, Apple iOS 9 or later

Manufacturer Warranty

3-year warranty

Dimensions (WxDxH)

27.6 cm x 50.2 cm x 32.6 cm

Specifications

EAN / GTIN:

5023821214468

General

Printer Type

Label printer - direct thermal / thermal transfer - monochrome

Printer

Print Speed

Up to 305 mm/sec - max speed

Built-in Devices

3.5 inch LCD display

Connectivity Technology

Wired

Interface

LAN, serial, USB host, USB 2.0

Max Resolution (B&W)

300 dpi

Language Simulation

EPL2, ZPL II, DPL, FBPL-EZD

Features

Open head sensor, reflective/black mark sensor, ribbon encode sensor, ribbon end sensor, transmissive/gap sensor, label detection sensor

Barcodes

RAM

RAM Installed (Max)

256 MB

Flash Memory

512 MB

Media Handling

Media Type

Continuous labels, black mark labels, die cut labels, fanfold labels, tags

Max Media Size

Roll (11.4 cm)

Max Media Size (Custom)

114 mm

Media Sizes

Roll (11.4 cm)

Max Printing Width

104 mm

Max Printing Length

11430 mm

Networking

Print server

Expansion / Connectivity

Connections

1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB 2.0 ¦ 1 x LAN - RJ-45 ¦ 1 x USB host

Miscellaneous

Cables Included

1 x USB cable

Power

Power Device

Power supply - internal

Voltage Required

AC 100-240 V

Frequency Required

50/60 Hz

Software / System Requirements

Software Included

Bartender UltraLite (free download), Software Development Kit (SDK)

OS Required

Manufacturer Warranty

Service & Support

Limited warranty - 3 years - pick-up and return

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

25 - 85% (non-condensing)

Dimensions & Weight

Width

27.6 cm

Depth

50.2 cm

Height

32.6 cm

Weight

15.35 kg

Essential Bundles

Options

Printer Consumables
	(ECE7434764 - BWS1D450110) Availability: 0 BROTHER - Standard - Black - 110 mm x 450 m - print ink ribbon refill (thermal transfer) (pack of 8) - for Brother TJ-4020TN, TJ-4120TN	€57.80
(ECE7434764 - BWS1D450110) Availability: 0 BROTHER - Standard - Black - 110 mm x 450 m - print ink ribbon refill (thermal transfer) (pack of 8) - for Brother TJ-4020TN, TJ-4120TN
	(WCEBWP1D450110 - BWP1D450110) Availability: 1 BROTHER - Premium - black - print ink ribbon refill (thermal transfer) (pack of 8)	€69.75
(WCEBWP1D450110 - BWP1D450110) Availability: 1 BROTHER - Premium - black - print ink ribbon refill (thermal transfer) (pack of 8)
	(ECE7439285 - BSP1D450110) Availability: 0 BROTHER - Premium - Black - original - 110 mm x 450 m - print ribbon (pack of 8) - for Brother TJ-4020TN, TJ-4120TN	€135.89
(ECE7439285 - BSP1D450110) Availability: 0 BROTHER - Premium - Black - original - 110 mm x 450 m - print ribbon (pack of 8) - for Brother TJ-4020TN, TJ-4120TN
	(ECE7233744 - BCS1J150102203) Availability: 0 BROTHER - Premium - Top coated - white - 102 x 150 mm 1440 label(s) (1 roll(s) x 1440 die cut labels (pack of 4) - for Brother TJ-4020TN, TJ-4120TN, TJ-4520TN, TJ-4522TN	€166.12
(ECE7233744 - BCS1J150102203) Availability: 0 BROTHER - Premium - Top coated - white - 102 x 150 mm 1440 label(s) (1 roll(s) x 1440 die cut labels (pack of 4) - for Brother TJ-4020TN, TJ-4120TN, TJ-4520TN, TJ-4522TN
	(WCEBCS1J074102203 - BCS1J074102203) Availability: 3 BROTHER - Premium - die cut labels - semi-glossy - 2940 label(s) - 102 x 74 mm (pack of 4)	€169.75
(WCEBCS1J074102203 - BCS1J074102203) Availability: 3 BROTHER - Premium - die cut labels - semi-glossy - 2940 label(s) - 102 x 74 mm (pack of 4)
	(ECE7233738 - BUS1J150102203) Availability: 0 BROTHER - Uncoated - white - 102 x 150 mm 1500 label(s) (1 roll(s) x 1500 die cut labels (pack of 4) - for Brother TJ-4020TN, TJ-4120TN, TJ-4520TN, TJ-4522TN	€169.75
(ECE7233738 - BUS1J150102203) Availability: 0 BROTHER - Uncoated - white - 102 x 150 mm 1500 label(s) (1 roll(s) x 1500 die cut labels (pack of 4) - for Brother TJ-4020TN, TJ-4120TN, TJ-4520TN, TJ-4522TN
	(ECE7439303 - BRS1D450110) Availability: 0 BROTHER - Standard - Black - 110 mm x 450 m - print ink ribbon refill (thermal transfer) (pack of 8) - for Brother TJ-4020TN, TJ-4120TN	€232.48
(ECE7439303 - BRS1D450110) Availability: 0 BROTHER - Standard - Black - 110 mm x 450 m - print ink ribbon refill (thermal transfer) (pack of 8) - for Brother TJ-4020TN, TJ-4120TN
	(ECE7439282 - BRP1D450110) Availability: 0 BROTHER - Premium - Black - 110 mm x 450 m - print ribbon (pack of 8) - for Brother TJ-4020TN, TJ-4120TN	€269.75
(ECE7439282 - BRP1D450110) Availability: 0 BROTHER - Premium - Black - 110 mm x 450 m - print ribbon (pack of 8) - for Brother TJ-4020TN, TJ-4120TN
Output Accessories
	(MMECA64842 - PALP006) Availability: 5 BROTHER - Label Peeler - peel-off module	€375.67
(MMECA64842 - PALP006) Availability: 5 BROTHER - Label Peeler - peel-off module
