iiyama ProLite TF1634MC-B8X

Name: iiyama ProLite TF1634MC-B8X
Brand: IIYAMA
SKU: ECE6384051
Price: 509.75 EUR
Availability: OutOfStock

View all IIYAMA Monitors - Visit the IIYAMA Store (TF1634MC-B8X) - (ECE6384051)

Model: iiyama ProLite

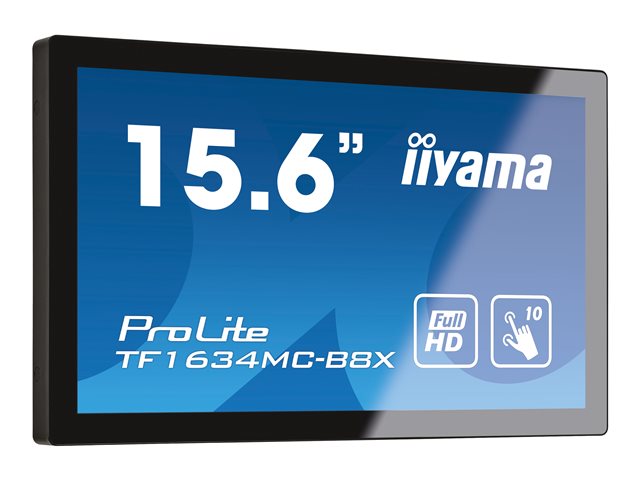

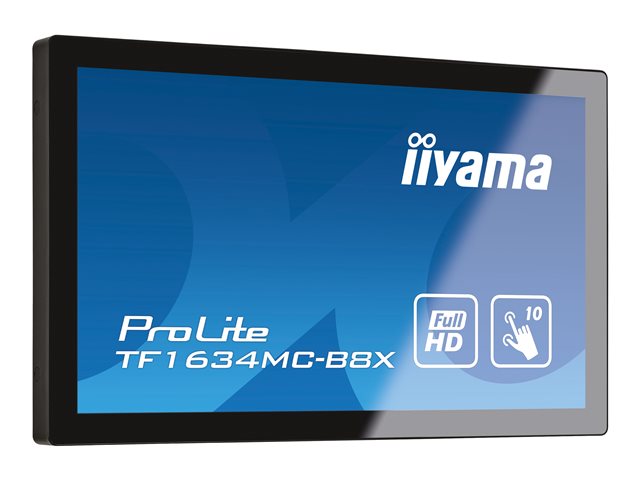

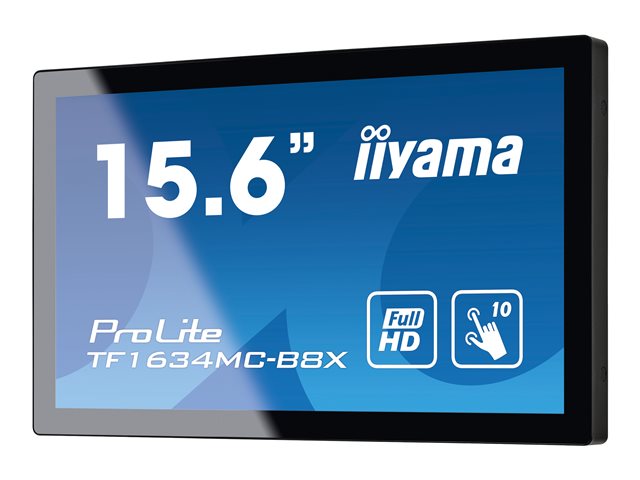

ProLite TF1634MC-B8X - LED monitor - 15.6" - open frame - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - IPS - 450 cd/m² - 700:1 - 25 ms - HDMI, VGA, DisplayPort - black, matte

Full HD
Touch technology - capacitive
IPS technology
Code IP
Touch Through-Glass

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

0 Available to Ship
Restock 17-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€509.75 Incl Vat

Bulk Pricing from €502.10

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ProLite TF1634MC-B8X uses projective capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS Panel Technology and Full HD (1920x1080) resolution, it offers natural, highly accurate colors and wide viewing angles. The Touch-Through-Glass function guarantees a seamless and accurate touch response for interactive behind-glass-retail applications. In addition to the superb image quality, the screen comes with an IP65 rating, which means the screen and bezel is totally dust and water resistant, making it a perfect solution for demanding kiosk installations. For ease of integration, the TF1634MC-B8X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.

Features Summary

Full HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
Touch technology - capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IPS technology
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Code IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Specification Summary

Product Description

iiyama ProLite TF1634MC-B8X - LED monitor - Full HD (1080p) - 15.6"

Device Type

LED-backlit LCD monitor - 15.6" - touchscreen

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/391713

Energy Class

Class F

Power Consumption (On mode)

12.4 W

Features

Touch-screen

Panel Type

IPS

Aspect Ratio

16:9

Native Resolution

Full HD (1080p) 1920 x 1080 at 60 Hz

Pixel Pitch

0.17925 mm

Brightness

450 cd/m²

Contrast Ratio

700:1

Response Time

25 ms

Colour Support

16.2 million colours

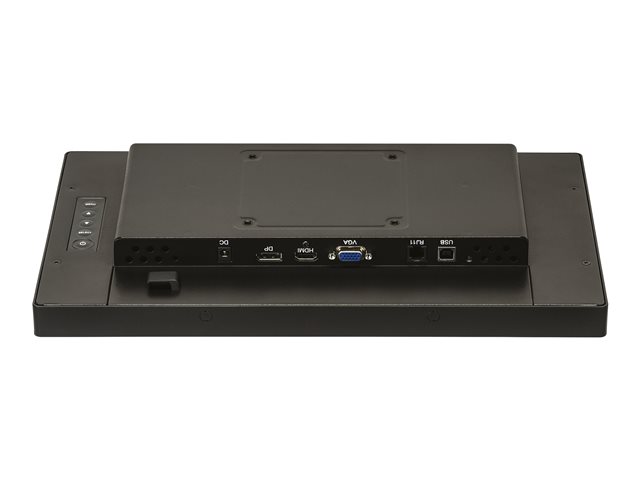

Input Connectors

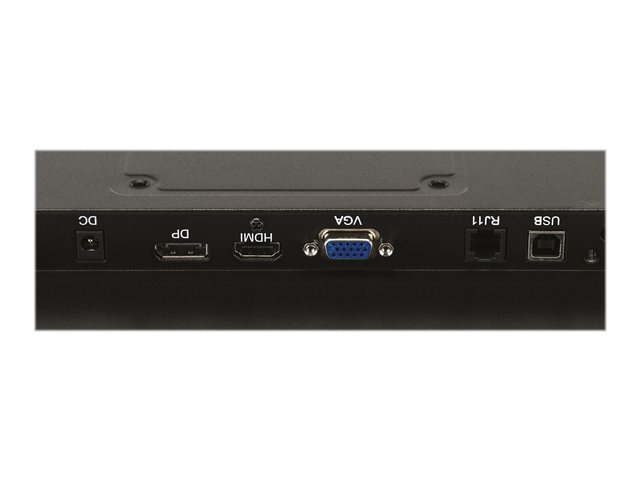

HDMI, VGA, DisplayPort

Screen Coating

7H Hard Coating

Voltage

AC 100 - 240 V (50/60 Hz)

Colour

Black, matte

Dimensions (WxDxH)

38.1 cm x 4.6 cm x 23.05 cm

Weight

2 kg

Compliant Standards

Plug and Play, DDC-2B, RoHS, WEEE, cULus, REACH, ERP, EAC, IP65 front

Specifications

EAN / GTIN:

4948570118342

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/391713

Energy Class

Class F

Diagonal Size

15.6"

Panel Type

IPS

Aspect Ratio

16:9

Native Resolution

Full HD (1080p) 1920 x 1080 at 60 Hz

Pixel Pitch

0.17925 mm

Brightness

450 cd/m²

Brightness w/touchscreen

405 cd/m²

Contrast Ratio

700:1

Colour Support

16.2 million colours

Response Time

25 ms

Vertical Refresh Rate

56 - 76 Hz

Horizontal Refresh Rate

30 - 84 kHz

Horizontal Viewing Angle

178

Vertical Viewing Angle

178

Screen Coating

7H Hard Coating

Backlight Technology

LED backlight

OSD Languages

English, German, French, Italian, Spanish, Japanese, Chinese

Features

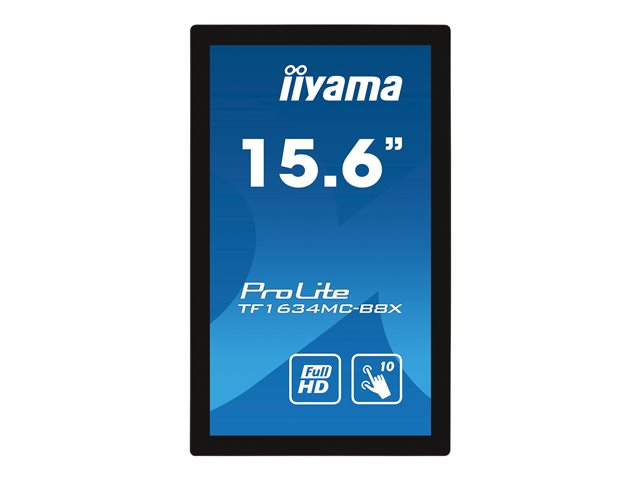

HDCP, High Frame Rate Control (Hi-FRC), edge-to-edge glass, OSD lock, HID Compliant, scratch-resistant, anti-fingerprint, glove touch mode, landscape mode, portrait mode, Face Up mode, 6 mm through-glass, 6-bit + Hi-FRC Color Depth

Colour

Black, matte

Dimensions (WxDxH)

38.1 cm x 4.6 cm x 23.05 cm

Weight

2 kg

Input

Type

Touch-screen - touchscreen

Movement Detection Technology

Projected capacitive
