iiyama ProLite TF1215MC-B1 - LED monitor - 12.1"

Images Manuals

Images for illustrative purposes

iiyama ProLite TF1215MC-B1

Name: iiyama ProLite TF1215MC-B1
Brand: IIYAMA
SKU: ECE6194584
Price: 539.75 EUR
Availability: OutOfStock
Rating: 4.6 (10 reviews)

View all IIYAMA Monitors - Visit the IIYAMA Store (TF1215MC-B1) - (ECE6194584)

4.6(10)

Model: iiyama ProLite

ProLite TF1215MC-B1 - LED monitor - 12.1" - open frame - touchscreen - 1024 x 768 - IPS - 540 cd/m² - 1000:1 - 25 ms - HDMI, VGA, DisplayPort - black

Semi outdoor solution
Touch through-glass

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

0 Available to Ship
Restock 07-Jul-2026 Estimated, Out of Stock Prices are Estimated.

€539.75 Incl Vat

Bulk Pricing from €531.66

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Built into a rugged, edge-to-edge glass bezel the ProLite TF1215MC-B1 guarantees high durability and scratch-resistance, making it perfect for high use public facing applications. Landscape, portrait and face-up orientation ensure flexibility in any type of installation. It can operate in temperatures ranging from -20˚C-to 60˚C and is IP65 rated, resulting in dust and water resistance from the front making it a reliable solution for pick-up points and kiosks in semi-outside environments like petrol or train stations.

Specification Summary

Product Description

iiyama ProLite TF1215MC-B1 - LED monitor - 12.1"

Device Type

LED-backlit LCD monitor - 12.1" - touchscreen

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/356882

Energy Class

Class F

Energy Consumption per Year

16 kWh

Power Consumption (On mode)

11 W

Features

Touch-screen

Panel Type

IPS

Native Resolution

1024 x 768

Pixel Pitch

0.24 mm

Brightness

540 cd/m²

Contrast Ratio

1000:1

Response Time

25 ms

Colour Support

16.2 million colours

Input Connectors

HDMI, VGA, DisplayPort

Screen Coating

7H Hard Coating

Voltage

AC 120/230 V (50/60 Hz)

Colour

Black

Dimensions (WxDxH)

30.85 cm x 4.15 cm x 24.8 cm

Weight

2.1 kg

Compliant Standards

Plug and Play, DDC-2B, RoHS, WEEE, cULus, REACH, ERP, EAC

Specifications

EAN / GTIN:

4948570118007

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/356882

Energy Class

Class F

Energy Consumption per Year

16 kWh

Diagonal Size

12.1"

Panel Type

IPS

Native Resolution

1024 x 768

Pixel Pitch

0.24 mm

Brightness

540 cd/m²

Brightness w/touchscreen

450 cd/m²

Contrast Ratio

1000:1

Colour Support

16.2 million colours

Response Time

25 ms

Vertical Refresh Rate

56 - 75 Hz

Horizontal Refresh Rate

31.4 - 60 kHz

Horizontal Viewing Angle

+89 / -89

Vertical Viewing Angle

+89 / -89

Screen Coating

7H Hard Coating

Backlight Technology

LED backlight

OSD Languages

English, German, French, Italian, Spanish, Japanese, Chinese

Features

HDCP, High Frame Rate Control (Hi-FRC), edge-to-edge glass, OSD lock, anti-fingerprint, landscape mode, portrait mode, 6 mm through-glass, touch through glass function

Colour

Black

Dimensions (WxDxH)

30.85 cm x 4.15 cm x 24.8 cm

Weight

2.1 kg

Input

Type

Touch-screen - touchscreen

Movement Detection Technology

Projected capacitive

Connectivity

Interfaces

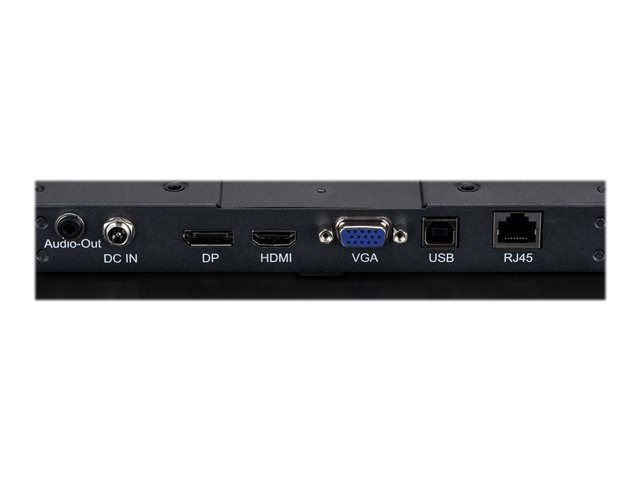

VGA ¦ DisplayPort ¦ HDMI ¦ USB ¦ Audio line-out

Mechanical

VESA Mounting Interface

100 x 100 mm

Miscellaneous

Features

IP65 protection

Included Accessories

Remote control

Cables Included

1 x HDMI cable ¦ 1 x DisplayPort cable ¦ 1 x USB cable

Compliant Standards

Plug and Play, DDC-2B, RoHS, WEEE, cULus, REACH, ERP, EAC

Power

Input Voltage

AC 120/230 V (50/60 Hz)

Power Consumption (On mode)

11 W

Power Consumption SDR (On mode)

11 kWh/1000h

Power Consumption (Typical)

10 watt

Power Consumption Stand by

0.55 watt

Power Consumption (Off Mode)

0.5 watt

Dimensions & Weight (Shipping)

Shipping Width

43.5 cm

Shipping Depth

16.5 cm

Shipping Height

35.5 cm

Shipping Weight

3.9 kg

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

60 °C
