ViewSonic TD2430 - LED monitor - Full HD (1080p) -

Images Manuals

Images for illustrative purposes

ViewSonic TD2430

View all VIEWSONIC Monitors - Visit the VIEWSONIC Store (TD2430) - (MMEB922432)

TD2430 - LED monitor - Full HD (1080p) - 24"

Responsive touch technology
Exceptional visual clarity
Ergonomic design
Comprehensive connectivity
Advanced monitor features

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

14 Available to Ship
Order within 5Hrs 46Mins for: FREE Delivery (8 Jun or 9 Jun)

€319.75 Incl Vat

Bulk Pricing from €310.16

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic TD2430 is a 24" (23.6" viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10/11, and certain Android and Linux versions. With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.

Specification Summary

Product Description

ViewSonic TD2430 - LED monitor - Full HD (1080p) - 24"

Device Type

LED-backlit LCD monitor - 24" - touchscreen

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/404623

Energy Class

Class E

Power Consumption (On mode)

14.6 W

Features

Touch-screen, USB 3.2 hub

Panel Type

Aspect Ratio

16:9

Native Resolution

Full HD (1080p) 1920 x 1080

Contrast Ratio

3000:1 / 50000000:1 (dynamic)

Response Time

10 ms (grey-to-grey), 25 ms (rise+fall)

Colour Support

16.7 million colours

Input Connectors

HDMI, VGA, DisplayPort

Display Position Adjustments

Tilt

Screen Coating

7H Hard Coating

Voltage

AC 100-240 V (50/60 Hz)

Dimensions (WxDxH)

57.3 cm x 4.7 cm x 35.3 cm

Weight

5.5 kg

Compliant Standards

FCC Class B certified, TUV, ICES-003, CB, CCC, EMC, RoHS, WEEE, cTUVus, REACH, CEC, UkrSEPRO, ERP, EAC, China Energy Label, China RoHS, Mexico CoC, UKCA

Specifications

EAN / GTIN:

0766907846911

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Label QR Code URL

Https://eprel.ec.europa.eu/qr/404623

Energy Class

Class E

Diagonal Size

24"

Built-in Devices

USB 3.2 hub

Panel Type

Aspect Ratio

16:9

Native Resolution

Full HD (1080p) 1920 x 1080

Brightness w/touchscreen

200 cd/m²

Contrast Ratio

3000:1 / 50000000:1 (dynamic)

Colour Support

16.7 million colours

Response Time

10 ms (grey-to-grey), 25 ms (rise+fall)

Vertical Refresh Rate

24 - 75 Hz

Horizontal Refresh Rate

15 - 82 kHz

Horizontal Viewing Angle

178

Vertical Viewing Angle

178

Screen Coating

7H Hard Coating

Backlight Technology

LED backlight

Features

Sync on Green, SuperClear, frameless, scratch-resistant, Flicker Free technology, Transition Minimised Differential Signaling (TMDS) technology, Blue Light Filter technology, Composite Sync, 8-bit(6-bit + FRC) Colour Depth

Dimensions (WxDxH)

57.3 cm x 4.7 cm x 35.3 cm

Weight

5.5 kg

Audio

Type

Speakers - stereo

Output Power / Channel

2 Watt

Input

Type

Touch-screen - touchscreen

Movement Detection Technology

Projected capacitive

Connectivity

Interfaces

VGA ¦ DisplayPort 1.2 ¦ HDMI ¦ 2 x USB 3.2 downstream (Type A) ¦ USB 3.2 upstream (Type B) ¦ Audio line-in (mini-jack) ¦ Audio line-out (mini-jack)

Mechanical

Display Position Adjustments

Tilt

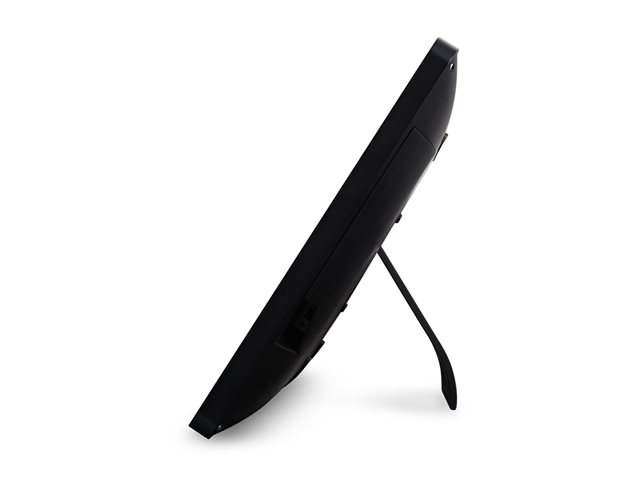

Tilt Angle

-20/+53

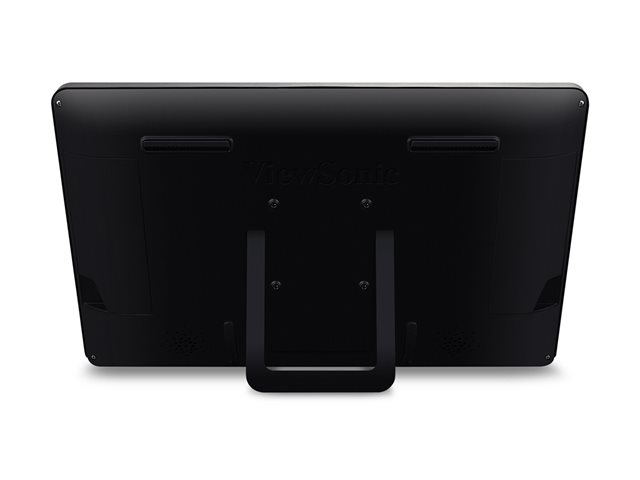

VESA Mounting Interface

100 x 100 mm

Miscellaneous

Features

Security lock slot (cable lock sold separately)

Cables Included

1 x HDMI cable ¦ 1 x USB-A to USB-B cable ¦ 1 x audio cable

Backlight Life

40,000 hours

Compliant Standards

FCC Class B certified, TUV, ICES-003, CB, CCC, EMC, RoHS, WEEE, cTUVus, REACH, CEC, UkrSEPRO, ERP, EAC, China Energy Label, China RoHS, Mexico CoC, UKCA

Security Slot Type

Kensington security slot

Power

Input Voltage

AC 100-240 V (50/60 Hz)

Power Consumption (On mode)

14.6 W

Power Consumption SDR (On mode)

15 kWh/1000h

Power Consumption (Typical)

25 Watt

Power Consumption (Max)

28 Watt

Power Consumption Stand by

0.5 Watt

Software / System Requirements

OS Required

Android 4.0 or later, Linux 2.6.38 or later, Microsoft Windows 7 / 8 / 10 / 11

Dimensions & Weight

Dimensions & Weight Details

With stand - width: 57.3 cm - depth: 4.7 cm - height: 35.3 cm - weight: 5.5 kg ¦ Without stand - width: 57.3 cm - depth: 4.7 cm - height: 35.3 cm

Dimensions & Weight (Shipping)

Shipping Width

64.3 cm

Shipping Depth

14 cm

Shipping Height

43.5 cm

Shipping Weight

7.1 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 90% (non-condensing)
