Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

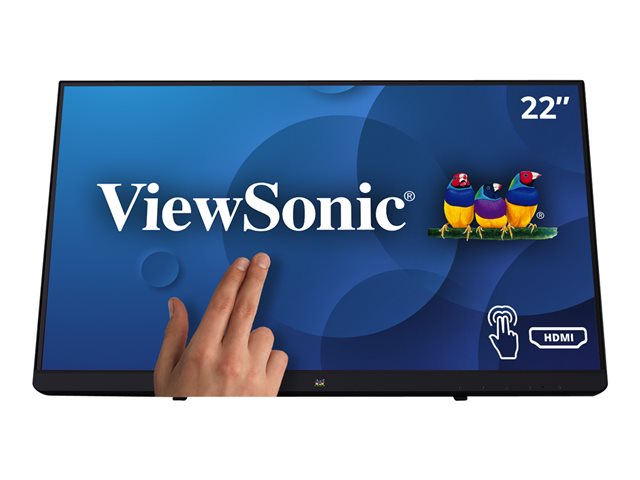

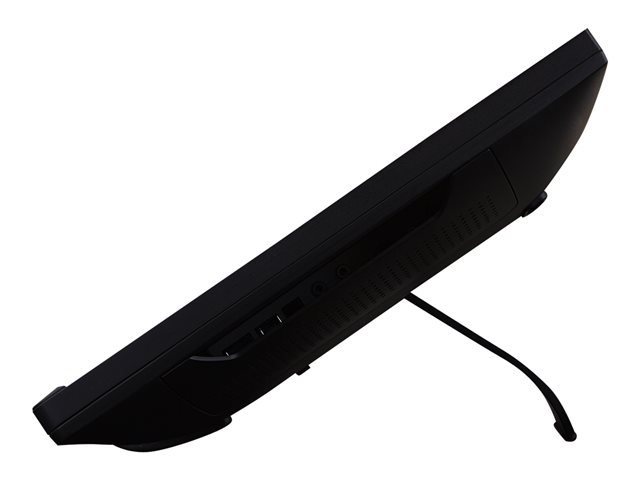

The ViewSonic TD2230 is a 22" (21.5" viewable) Full HD multi-touch display. With a SuperClear IPS-type panel and 10-point projected capacitive touch technology, this display delivers stunning front-of-screen performance with a responsive and accurate touch experience. Featuring a 7H hardness touch screen, edge-to-edge frameless design, and up to 10 simultaneous touch points, this durable display allows users to tap, swipe, pinch, and zoom with ease - perfect for retail, education, or enterprise. An advanced ergonomic bookstand design provides a full range of motion for the desktop, and a VESA-compatible mount allows for flexible mounting options on a monitor stand or wall. Future-proof connectivity options include HDMI, DisplayPort, and USB 3.0, while VGA is also available for legacy systems. ViewSonic's exclusive ViewMode feature provides intuitive presets for optimized screen performance in different applications. In addition, Flicker-Free technology and a Blue Light Filter help to minimize eye strain from extended viewing periods. Industry-leading warranty protection and legendary ViewSonic product quality makes this high performance multi-touch display a great long-term investment for all touch applications.


Features Summary

  • 10-point projected capacitive touch
    Touch screens with projected capacitive touch can recognize up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.
  • SuperClear IPS panel technology
    Enjoy accurate and vivid colors with consistent levels of brightness no matter the vantage point. With SuperClear IPS panel technology, this monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
  • Frameless design
    Say goodbye to the thick, clunky plastic frames set over the edges of traditional monitors. This monitor features a frameless edge-to-edge glass faceplate with an ultra-slim bezel beneath the glass. With its sleek, eye-catching design, this elegant monitor looks as good as it performs.
  • Versatile connectivity
    DisplayPort, HDMI, and VGA inputs give you the freedom to connect your monitor to a variety of devices.
  • Durable, scratch-resistant screen
    This touch display is designed with a durable, protective glass faceplate. This provides increased scratch protection to ensure durability, as well as a consistent, high-quality touch experience in high-traffic areas such as educational settings, or other public environments where the touch display can be used as a kiosk.

Specification Summary

Product Description
ViewSonic TD2230 - LED monitor - Full HD (1080p) - 22"
Device Type
LED-backlit LCD monitor - 22" - touchscreen
Energy Label QR Code URL
Https://eprel.ec.europa.eu/qr/389769
Energy Class
Class E
Power Consumption (On mode)
14.5 W
Features
Touch-screen, USB 3.0 hub
Panel Type
ADS-IPS
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Brightness
250 cd/m²
Contrast Ratio
1000:1 / 50000000:1 (dynamic)
Response Time
5 ms (grey-to-grey)
Input Connectors
HDMI, VGA, DisplayPort
Display Position Adjustments
Tilt
Screen Coating
7H Hard Coating
Voltage
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) - with stand
49 cm x 4.7 cm x 29.9 cm
Weight
3.58 kg
Environmental Standards
ENERGY STAR Qualified EPEAT Bronze
Compliant Standards
FCC Class B certified, UL, DDC-2B, ICES-003, CCC, DDC/CI, cULus, CEL, DisplayPort 1.2, DOE, Mexico CoC
Manufacturer Warranty
3-year warranty

Specifications

EAN / GTIN:
0766907008654
General
Display Type
LED-backlit LCD monitor / TFT active matrix
Energy Label QR Code URL
Https://eprel.ec.europa.eu/qr/389769
Energy Class
Class E
Diagonal Size
22"
Viewable Size
21.5"
Built-in Devices
USB 3.0 hub
Panel Type
ADS-IPS
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080
Brightness
250 cd/m²
Contrast Ratio
1000:1 / 50000000:1 (dynamic)
Response Time
5 ms (grey-to-grey)
Vertical Refresh Rate
50 - 76 Hz
Horizontal Refresh Rate
15 - 82 kHz
Horizontal Viewing Angle
178
Vertical Viewing Angle
178
Screen Coating
7H Hard Coating
Backlight Technology
LED backlight
Features
Sync on Green, HDCP, SuperClear, frameless, scratch-resistant, Flicker Free technology, Transition Minimised Differential Signaling (TMDS) technology, Blue Light Filter technology, Composite Sync, ViewMode
Dimensions (WxDxH)
49 cm x 4.7 cm x 29.9 cm - with stand
Weight
3.58 kg
Audio
Type
Speakers - stereo
Output Power / Channel
3 Watt
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive
Connectivity
Interfaces

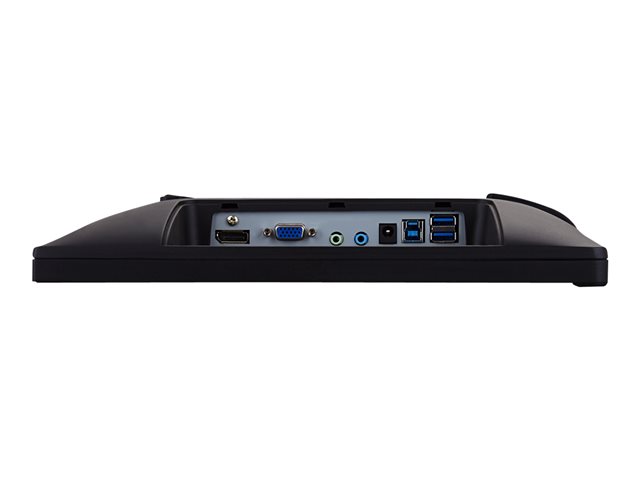

VGA ¦ DisplayPort ¦ HDMI (HDCP) ¦ 2 x USB 3.0 downstream (Type A) ¦ USB 3.0 upstream (Type B) ¦ Headphones (mini-jack) ¦ Audio line-in (mini-jack)
Mechanical
Display Position Adjustments
Tilt
Tilt Angle
-20/+70
VESA Mounting Interface
100 x 100 mm
Miscellaneous
Features
Security lock slot (cable lock sold separately)
Cables Included
1 x HDMI cable - 1.5 m ¦ 1 x SuperSpeed USB cable - 1.5 m ¦ 1 x audio cable - 1.5 m
Compliant Standards
FCC Class B certified, UL, DDC-2B, ICES-003, CCC, DDC/CI, cULus, CEL, DisplayPort 1.2, DOE, Mexico CoC
Security Slot Type
Kensington security slot
Power
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption (On mode)
14.5 W
Power Consumption SDR (On mode)
15 kWh/1000h
Power Consumption (Typical)
25 Watt
Software / System Requirements
OS Required
Android 4.0 or later, Microsoft Windows 7 / 8 / 10, Linux 2.6.38 or later
Dimensions & Weight (Shipping)
Shipping Width
55 cm
Shipping Depth
11.4 cm
Shipping Height
37.1 cm
Shipping Weight
4.7 kg
Sustainability Information
EPEAT Compliant
EPEAT Bronze
ENERGY STAR Certified
Yes
ENERGY STAR Version
7.0
Manufacturer Warranty
Service & Support
Limited warranty - pick-up and return - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 90% (non-condensing)
