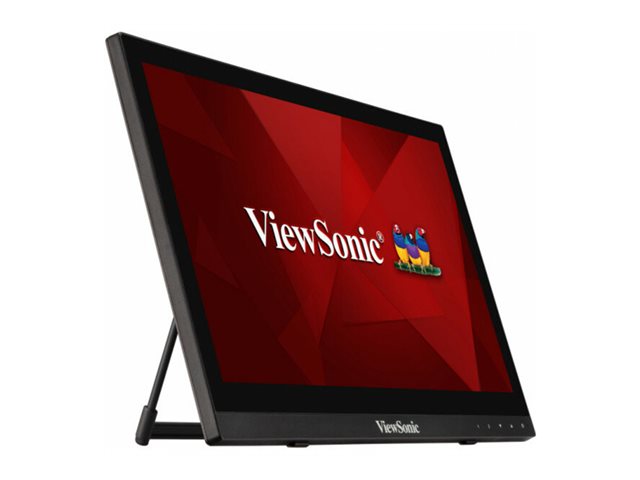

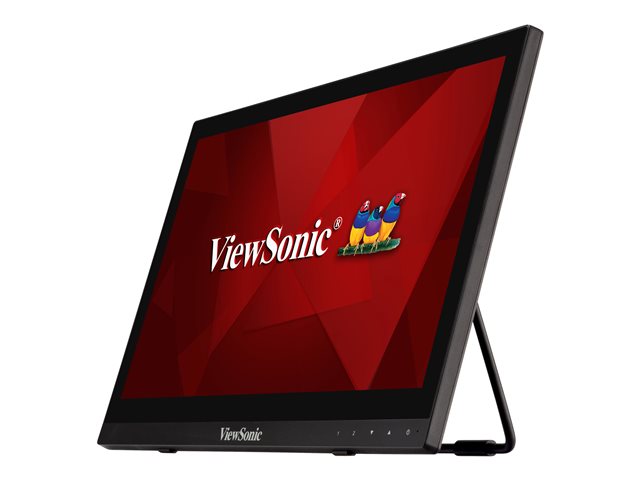

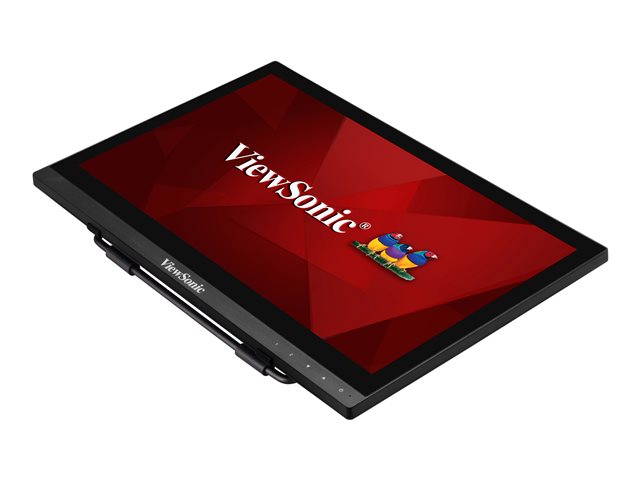

ViewSonic LED monitor

View all VIEWSONIC Monitors - Visit the VIEWSONIC Store (TD1630-3) - (MMEB922422)

LED monitor - 16"

Advanced ergonomic stand design
Versatile connectivity
Durable, scratch-resistant screen

FREE Delivery on orders over €250

**Please read important notice on dead pixel tolerences in the returns portion of the help page before purchasing - Help Page

12 Available to Ship
Order within 17Hrs 2Mins for: Delivery (8 Jun or 9 Jun)

€239.75 Incl Vat

Bulk Pricing from €232.56

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The ViewSonic TD1630-3 is a 16" (15.6" viewable) display with 10-point multi-touch functionality. With an advanced ergonomic design, the TD1630-3 can tilt or lay flat to give users maximum comfort. Delivering touchscreen versatility, this display offers fantastic flexibility for retail or business settings, while VGA and HDMI inputs provide ample connectivity. Compatibility with a wide range of operating systems, including Windows 10/11 and Linux versions*, along with dual integrated speakers, make this intuitive touchscreen a highly accurate, ultra-responsive touch experience that is ideal for interactivity in a retail or business settings.

*Supports Windows 7/8/10/11, Linux Kernel 4.X/3.X.

Specification Summary

Product Description

ViewSonic LED monitor - 16"

Device Type

LED-backlit LCD monitor - 16" - touchscreen

Energy Class

Class B

Energy Consumption per Year

6 kWh

Features

Touch-screen, USB 2.0 hub

Panel Type

Aspect Ratio

16:9

Native Resolution

1366 x 768 at 60 Hz

Pixel Pitch

0.252 mm

Brightness

190 cd/m²

Contrast Ratio

500:1 / 10000000:1 (dynamic)

Response Time

12 ms

Colour Support

262,000 colours

Colour Gamut

45% NTSC

Input Connectors

HDMI, VGA

Display Position Adjustments

Tilt

Screen Coating

7H Hard Coating

Voltage

AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) - with stand

37.92 cm x 3.72 cm x 24.71 cm

Weight

1.32 kg

Compliant Standards

RCM, BIS, GEMS

Specifications

EAN / GTIN:

0766907985511

General

Display Type

LED-backlit LCD monitor / TFT active matrix

Energy Class

Class B

Energy Consumption per Year

6 kWh

Diagonal Size

16"

Viewable Size

15.6"

Built-in Devices

USB 2.0 hub

Panel Type

Aspect Ratio

16:9

Native Resolution

1366 x 768 at 60 Hz

Pixel Pitch

0.252 mm

Brightness

190 cd/m²

Contrast Ratio

500:1 / 10000000:1 (dynamic)

Colour Support

262,000 colours

Colour Gamut

45% NTSC

Response Time

12 ms

Vertical Refresh Rate

56 - 75 Hz

Horizontal Refresh Rate

30 - 61 kHz

Horizontal Viewing Angle

Vertical Viewing Angle

Screen Coating

7H Hard Coating

Backlight Technology

WLED

Features

Sync on Green, glossy, OSD lock, Flicker Free technology, Transition Minimised Differential Signaling (TMDS) technology, Composite Sync, Bluelight Filter

Dimensions (WxDxH)

37.92 cm x 3.72 cm x 24.71 cm - with stand

Weight

1.32 kg

Audio

Type

Speakers - stereo

Output Power / Channel

1 watt

Input

Type

Touch-screen - touchscreen

Movement Detection Technology

Projected capacitive

Connectivity

Interfaces

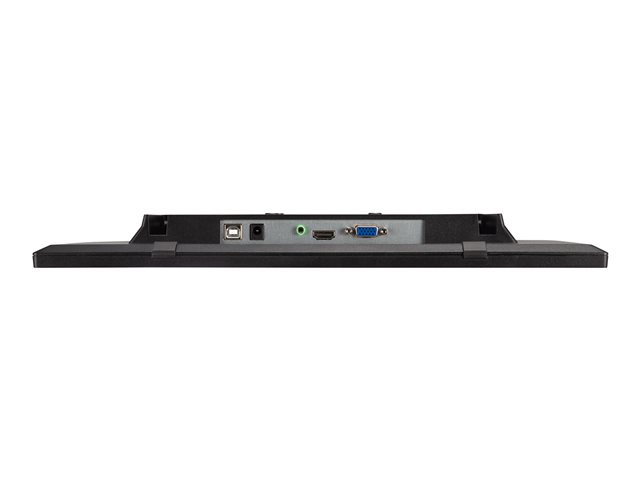

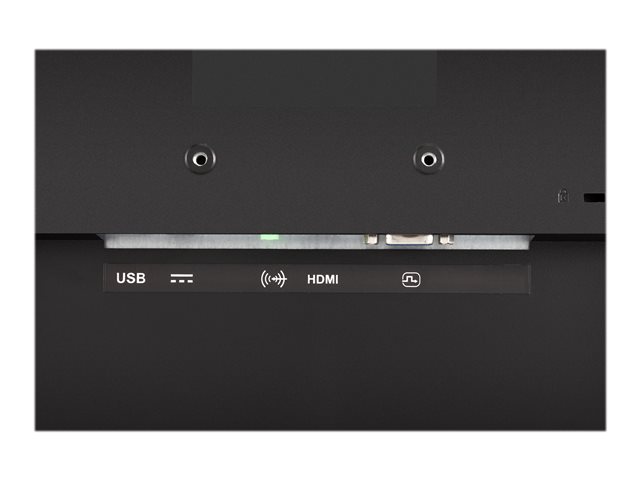

VGA (DB-15) ¦ HDMI ¦ Audio line-in (mini-jack) ¦ USB upstream (Type B)

Mechanical

Display Position Adjustments

Tilt

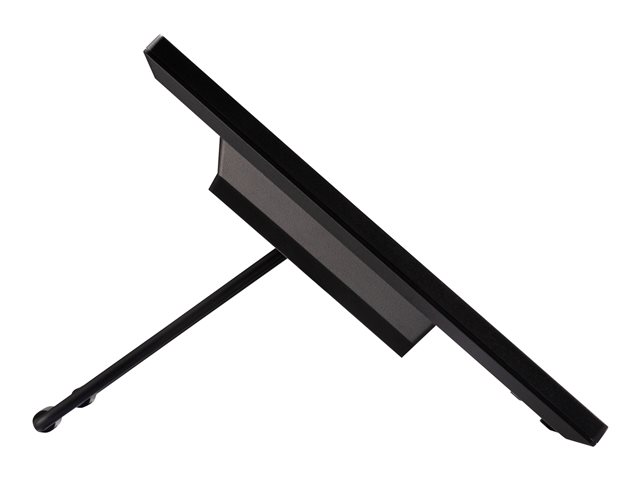

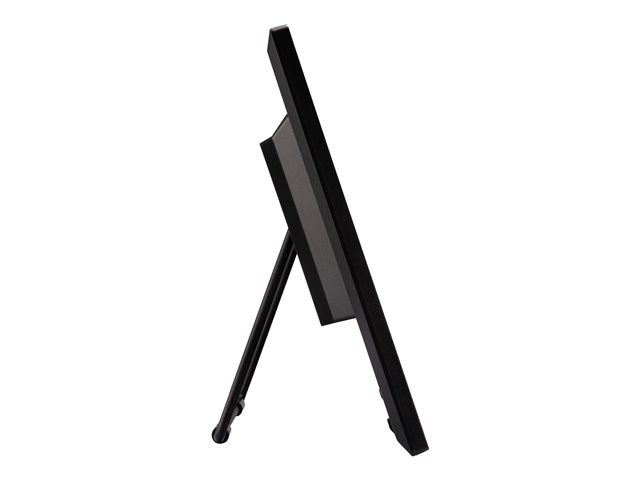

Tilt Angle

15/+50

VESA Mounting Interface

75 x 75 mm

Miscellaneous

Cables Included

1 x audio cable - 1.8 m ¦ 1 x VGA cable - 1.5 m ¦ 1 x USB cable - 2 m

Backlight Life

15,000 hours

Compliant Standards

RCM, BIS, GEMS

Power

Input Voltage

AC 120/230 V (50/60 Hz)

Power Consumption (Typical)

5.5 watt

Software / System Requirements

OS Required

Linux Kernel 3.x, Microsoft Windows 7 / 8 / 10 (32/64 bits), Linux Kernel 4.x

Dimensions & Weight

Dimensions & Weight Details

With stand - width: 37.92 cm - depth: 3.72 cm - height: 24.71 cm - weight: 1.32 kg ¦ Without stand - width: 37.92 cm - depth: 3.72 cm - height: 24.71 cm - weight: 1.32 kg

Dimensions & Weight (Shipping)

Shipping Width

45.3 cm

Shipping Depth

8.6 cm

Shipping Height

38.9 cm

Shipping Weight

2.5 kg

Environmental Parameters

Min Operating Temperature

0 °C
