Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

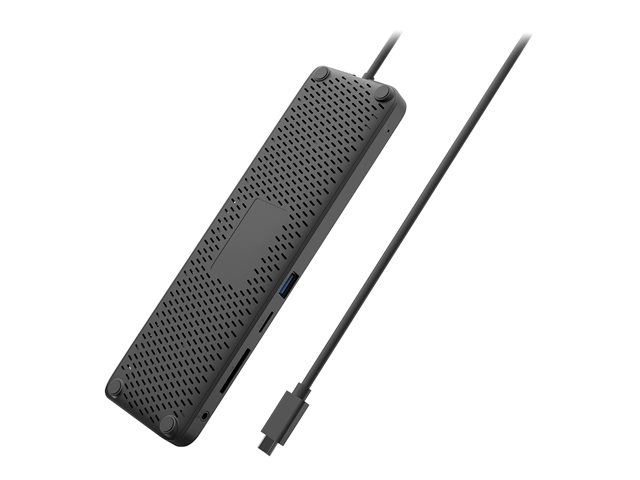

The design of the HUBEE MINI docking station is slim and compact. To provide natural heat dissipation, it incorporates a heavy-duty cable that offers great durability.

This MST docking station supports multiple displays for computers compatible with a USB Type-C video alternate mode. It supports quality resolution, and if only one DP or HDMI display is connected, the display will reach high resolution.

The USB Type-A ports of the docking station allow you to expand the use of USB peripherals such as an external hard drive, keyboard, mouse, headphones or even an optical drive.

The integrated Gigabit Ethernet port will allow you to quickly download photos, videos, music or other files.

To use it easily, the HUBEE MINI is plug and play, you will not need to install any external drivers or software.


Specification Summary

Product Description
Urban Factory Hubee Mini - docking station - USB-C - VGA, HDMI, DP - 1GbE
Product Type
Docking station
Docking Interface
USB-C
Video Interfaces
VGA, HDMI, DP
Dimensions (WxDxH)
20.6 cm x 5.8 cm x 1.9 cm
Weight
255 g
Colour
Black
Networking
Gigabit Ethernet
Manufacturer Warranty
2-year warranty

Specifications

EAN / GTIN:
3760170880921
General
Product Type
Docking station
Width
20.6 cm
Depth
5.8 cm
Height
1.9 cm
Weight
255 g
Enclosure Colour
Black
Video
Max Resolution Details
3840 x 2160 - 30 Hz (DisplayPort only) ¦ 3840 x 2160 - 30 Hz (HDMI only) ¦ 2048 x 1152 - 60 Hz (VGA only) ¦ 2048 x 1152 - 60 Hz (DisplayPort and HDMI simultaneously) ¦ 2048 x 1152 - 60 Hz (DisplayPort and VGA simultaneously) ¦ 2048 x 1152 - 60 Hz (HDMI and VGA simultaneously) ¦ 1920 x 1080 - 60 Hz (DisplayPort and HDMI and VGA simultaneously)
Networking
Data Link Protocol
Gigabit Ethernet
Expansion / Connectivity
Expansion Slots
1 SDXC Memory Card ¦ 1 microSDXC
Interfaces
2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm ¦ 1 x network - Ethernet 1000 - RJ-45 ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C
Miscellaneous
Cables Included
1 x USB-C 3.1 cable - integrated - 55 cm
Features
Preboot Execution Environment (PXE) support, MST (multi-stream transport), MAC address pass-through, DisplayPort Alt Mode
Compliant Standards
Plug and Play, FCC, RoHS, DisplayPort 1.2, USB Power Delivery 3.0
System Requirements
OS Required
Linux, Microsoft Windows 7 / 8 / 10, Apple MacOS X 10.11
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
