VISION

View all VISION Repeaters | Tranceivers - Visit the VISION Store (TC-HDMICAT) - (ECE11937389)

HDMI over CAT5e/6/6A cable up to 60 m long - 4K at 60 Hz 4:4:4 - one to one only - only one power supply required, can be used at either end - plug and play - 18 Gbps video bandwidth - HDCP 2.2 compliant - zero latency - HDR10+ and Dolby Vision pass throu

Robust connectivity
Effective temperature range
Comprehensive compliance
Audio capability
Included mounting kit

FREE Delivery on orders over €250

5 Available to Ship
Order within 10Hrs 14Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€220.99~~

€169.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Vision TC-HDMICAT is designed to enhance your audiovisual experience with its features and performance. This video/audio extender offers zero latency, ensuring seamless transmission without interruptions. Supporting a maximum video resolution of 4K at a V-Sync rate of 60 Hz, it delivers visuals that meet modern demands.

With HDR support and a bandwidth of 18 Gbps, the TC-HDMICAT is capable of transporting high-quality signals over CAT 6 for distances up to 60 m. The integrated IR pass-through allows for control of devices from long distances. Its compatibility with various audio formats, including LPCM 7.1, Dolby Digital Plus, and DTS:X, supports an audio experience that complements the visual clarity.

Features Summary

Robust connectivity
This external video/audio extender utilizes wired connectivity technology via HDMI and allows for up to 60 m of transmission distance using CAT 6 cable, ensuring reliable signal delivery across various settings.
Effective temperature range
The TC-HDMICAT operates efficiently in a temperature range from 0°C to 40°C, making it suitable for various environments, from home theaters to conference rooms.
Comprehensive compliance
This product meets multiple compliance standards including EN, FCC, and RoHS, ensuring it adheres to quality and safety protocols.
Audio capability
With compatibility for formats such as Dolby TrueHD and DTS-HD Master Audio, the device delivers immersive sound quality that enhances the viewing experience.
Included mounting kit
The TC-HDMICAT comes with a mounting kit, allowing for easy installation in any space without compromising on aesthetics or functionality.

Specification Summary

Product Description

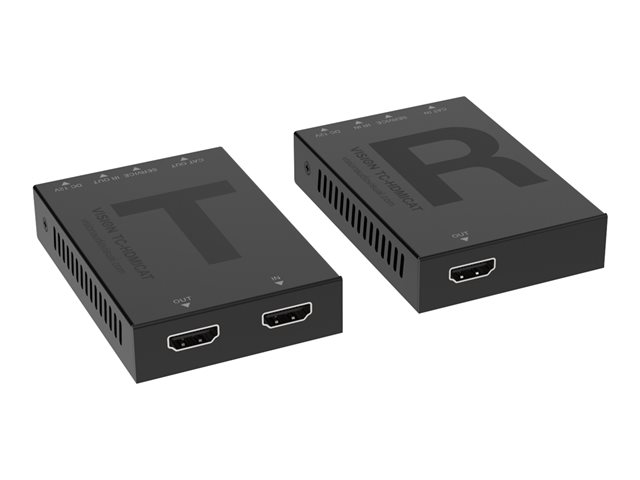

VISION - transmitter and receiver - video/audio extender - HDMI

Device Type

Video/audio extender

Form Factor

External

Localisation

Australia, United Kingdom, Europe

Data Link Protocol

HDMI

Transmission Medium

CAT 6

Max Transfer Distance

60 m

Power

AC 100-240 V

Dimensions (WxDxH)

6.1 cm x 8.8 cm x 1.8 cm

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

1193738900007

General

Device Type

Video/audio extender

Form Factor

External

Colour

Black

Localisation

Australia, United Kingdom, Europe

Networking

Connectivity Technology

Wired

Data Link Protocol

HDMI

Max Resolution

4K @ 60 Hz

Max Transfer Distance

60 m

Features

Zero latency, HDR support, IR pass-through, 18 Gbps bandwidth, RGB 4:4:4, YCbCr 4:2:0, YCbCr 4:2:2, YCbCr 4:4:4, YUV 4:4:4, Copy EDID mode, LPCM 7.1 support, Dolby Digital Plus support, Dolby Digital support, Dolby TrueHD support, DTS ES support, DTS HRA support, DTS:X support, DTS-HD Master Audio support, DTS-HD support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), metal housing

Compliant Standards

HDCP 2.2

Expansion / Connectivity

Interfaces

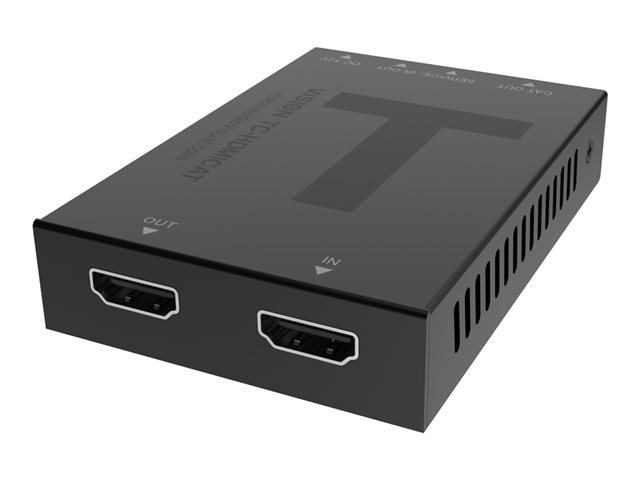

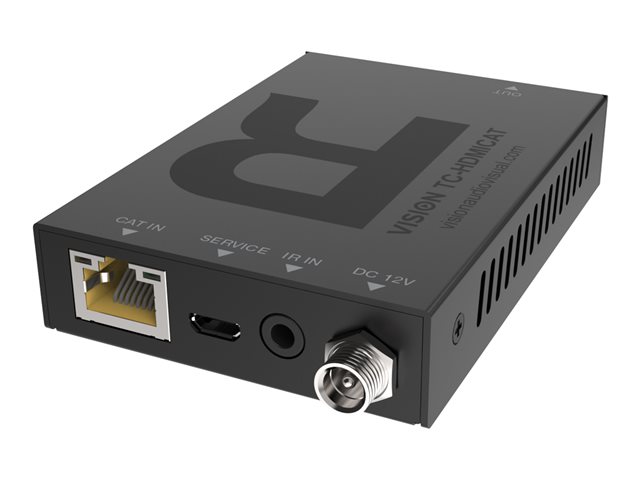

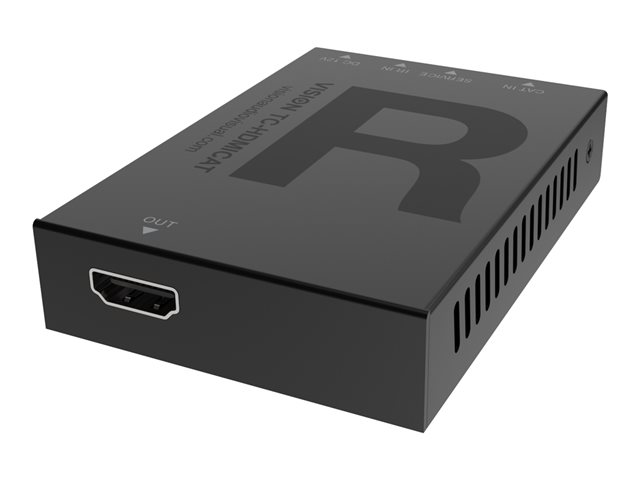

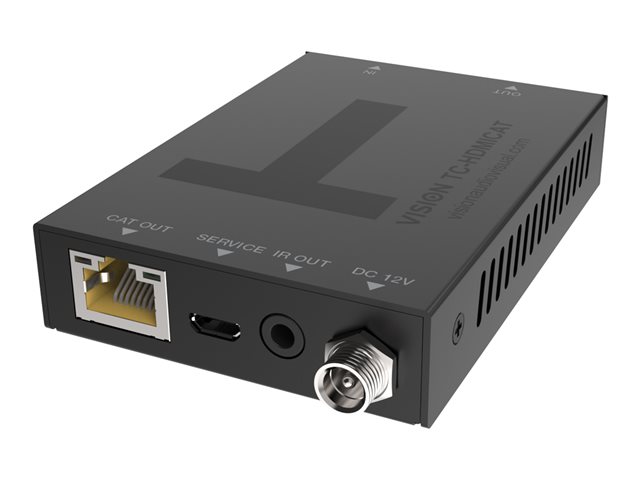

1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x IR input (receiver) - mini jack ¦ 1 x network (receiver input) - RJ-45 ¦ 2 x micro-USB (service) ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x IR output (transmitter) - mini jack ¦ 1 x network (transmitter output) - RJ-45

Miscellaneous

Mounting Kit

Included

Compliant Standards

EN 55032:2015+A1:2020+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, FCC Part 15 Subpart B, RoHS 2011/65/EU, RoHS, UKCA, EMC 2014/30/EU, ISO 9001:2015, WEEE, LVD, IEC, RCM, IC, IEC 61000-4-2

Power

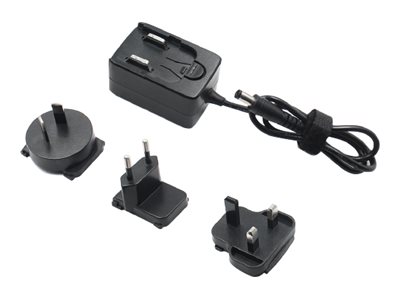

Power Device

External power adapter

Installed Qty

Voltage Required

AC 100-240 V (50/60 Hz)

Power Consumption Operational

3.84 Watt

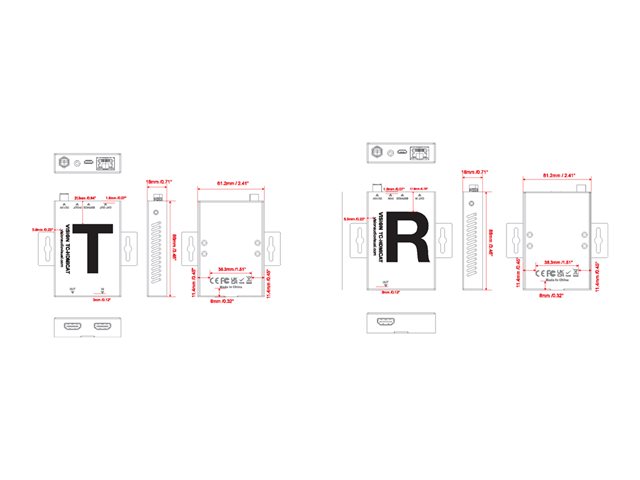

Dimensions & Weight

Width

6.1 cm

Depth

8.8 cm

Height

1.8 cm

Dimensions (WxDxH) / Weight Details

Transmitter: 160 g ¦ Receiver: 155 g

Dimensions & Weight (Shipping)

Shipping Width

13.5 cm

Shipping Depth

21.5 cm

Shipping Height

7.5 cm

Shipping Weight

600 g

Manufacturer Warranty

Service & Support

Limited warranty - return to base - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

20 - 90% RH (non-condensing)
