Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The Vision TC-HDMICAT+ offers reliable HDMI signal amplification with quality, supporting up to 4K resolution at 60 Hz. Designed for flexibility, this KVM/audio extender supports distances of up to 70 m over CAT 6 cabling, ensuring seamless performance without latency. The device comes with a mounting kit for installation and operates effectively in various environmental conditions, from 0°C to 40°C with a humidity range of 20 - 90% RH. Safe and compliant with numerous standards, the TC-HDMICAT+ integrates features like Dolby Vision support, HDR compatibility, and comprehensive ESD protection to enhance your multimedia experience.


Features Summary

  • Robust Performance
    The Vision TC-HDMICAT+ features an 18 Gbps bandwidth and supports a variety of color formats, including RGB 4:4:4 and YCbCr 4:4:4, ensuring video quality across devices.
  • Versatile Connectivity
    Equipped with multiple input and output interfaces such as HDMI input, USB Type-A, micro-USB, and IR output, this extender is designed to connect easily to various devices for a user-friendly experience.
  • Reliable Protection
    Featuring 4 kV and 8 kV ESD protection, the TC-HDMICAT+ helps safeguard connected equipment from electrical surges, ensuring consistent performance without interruptions.
  • Compliance Assured
    This product meets multiple international standards including RoHS, FCC, and ISO 9001:2015, providing users with assurance of its quality and reliability.

Specification Summary

Product Description

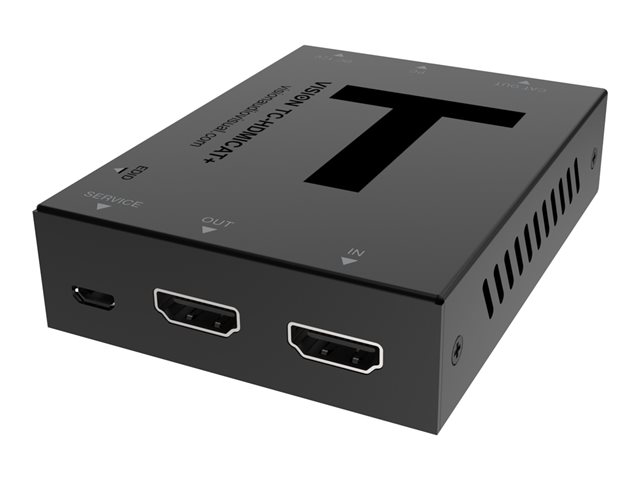

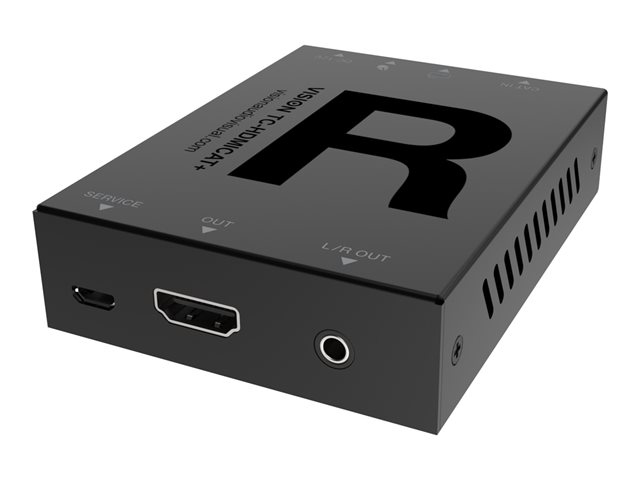

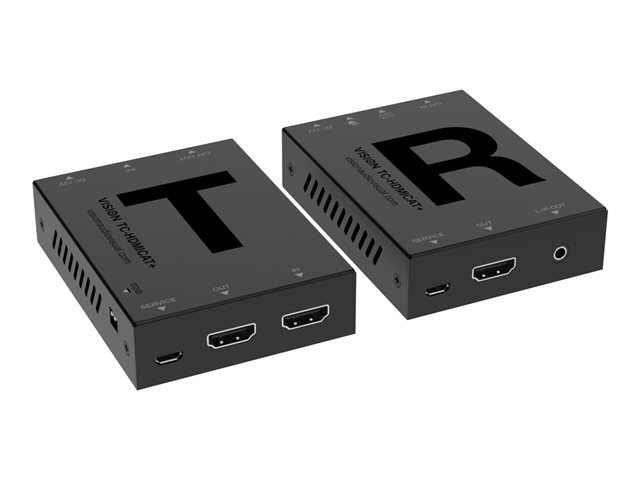

VISION - transmitter and receiver - KVM / audio extender - HDMI, USB
Device Type
KVM / audio extender - USB
Form Factor
External
Localisation
Australia, United Kingdom, Europe
Data Link Protocol
HDMI, USB
Transmission Medium
CAT 6
Max Transfer Distance
70 m
Power
AC 100-240 V
Dimensions (WxDxH)
6.8 cm x 9 cm x 2.2 cm
Manufacturer Warranty
Limited lifetime warranty

Specifications

EAN / GTIN:
1193738800000
General
Device Type
KVM / audio extender
Form Factor
External
Colour
Black
Localisation
Australia, United Kingdom, Europe
Networking
Connectivity Technology
Wired
Data Link Protocol
HDMI, USB
Keyboard / Mouse Interface
USB
Max Resolution
4K @ 60 Hz
Max Transfer Distance
70 m
Features
Zero latency, metal housing, Dolby Vision support, HDR support, HDR10 support, HDR10+ support, Hybrid Log-Gamma (HLG) support, IR pass-through, 18 Gbps bandwidth, RGB 4:4:4, YCbCr 4:2:0, YCbCr 4:2:2, YCbCr 4:4:4, YUV 4:4:4, Copy EDID mode, LPCM 7.1 support, Dolby Digital support, Dolby TrueHD support, Dolby Digital Plus support, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge)
Compliant Standards
HDCP 2.2
Expansion / Connectivity
Interfaces

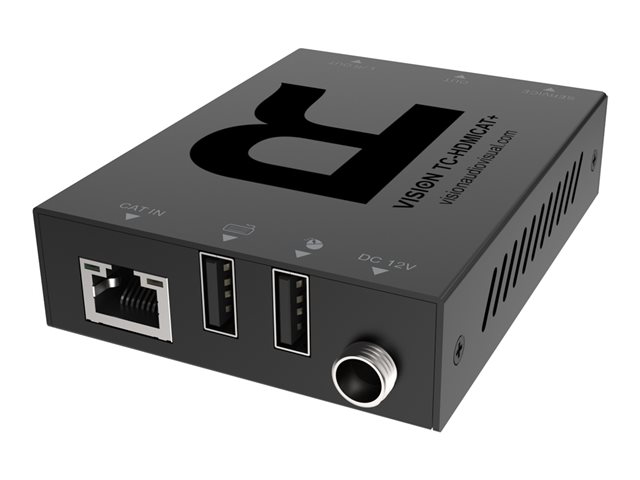

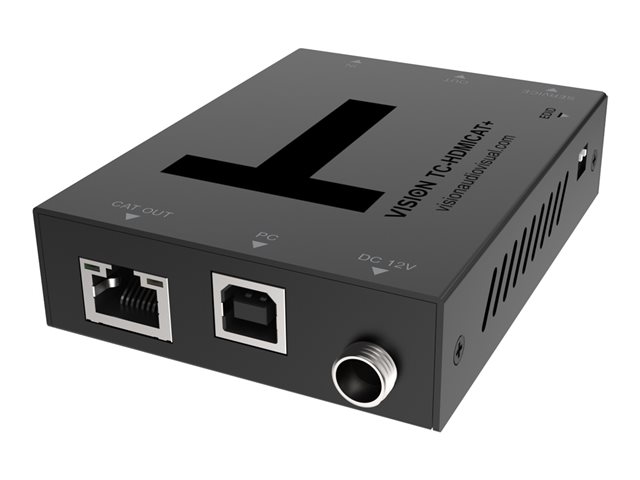

1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDMI output (transmitter) - 19 pin HDMI Type A ¦ 1 x network (transmitter output) - RJ-45 ¦ 1 x control (transmitter) - USB type B ¦ 2 x micro-USB (service) ¦ 1 x network (receiver input) - RJ-45 ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A ¦ 1 x IR output (receiver) - mini jack ¦ 2 x control (receiver) - USB type A
Miscellaneous
Mounting Kit
Included
Compliant Standards
UKCA, RoHS 2011/65/EU, RoHS 2015/863/EU, EMC 2014/30/EU, EN 55032:2015+A1:2020+A11:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 61000-3-2:2019+A1:2021, FCC Part 15 Subpart B, ISO 9001:2015, IEC 61000-4-2, WEEE, LVD, IEC, RCM, IC
Power
Power Device
External power adapter
Installed Qty
2
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Operational
4.2 Watt

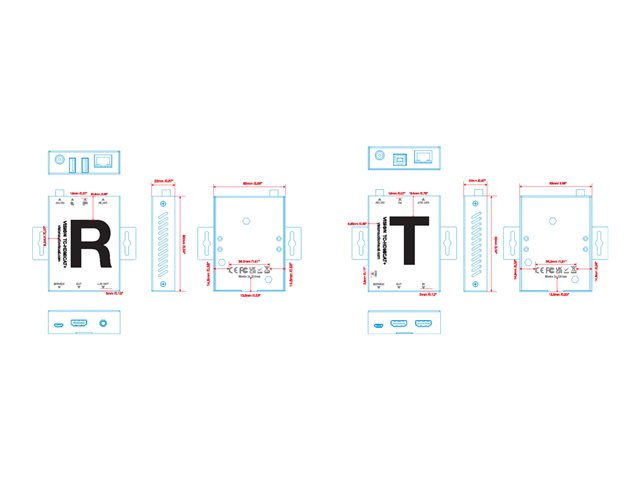

Dimensions & Weight
Width
6.8 cm
Depth
9 cm
Height
2.2 cm
Dimensions (WxDxH) / Weight Details
Transmitter: 170 g ¦ Receiver: 169 g
Dimensions & Weight (Shipping)
Shipping Width
13.5 cm
Shipping Depth
21.5 cm
Shipping Height
7.5 cm
Shipping Weight
700 g
Manufacturer Warranty
Service & Support
Limited warranty - return to base - lifetime
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 90% RH (non-condensing)
