Startech Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m - Docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE - North America

High-Performance Port Connectivity
High-Resolution Display Connectivity
96W USB Power Delivery Certified
Thunderbolt Certified
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

FREE Delivery on orders over €250

25 Available to Ship
Order within 11Hrs 53Mins for: Delivery (12 Aug or 13 Aug)

€214.22 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4, Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop, Thunderbolt 4 M1 Max/M1 Pro MacBook, or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher). For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port, and features Kensington-style security slots.

Features Summary

High-Performance Port Connectivity

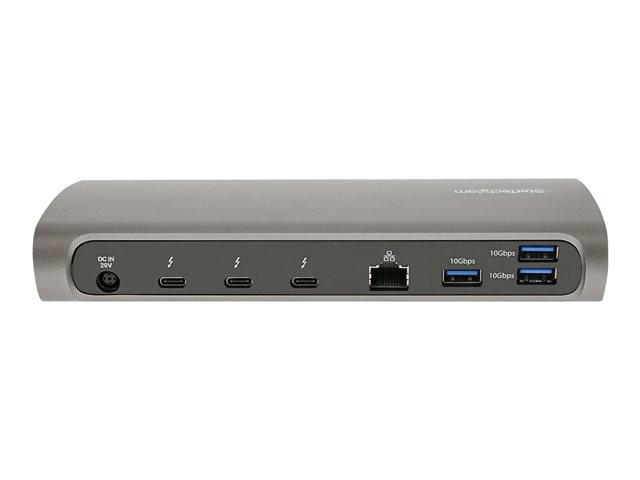

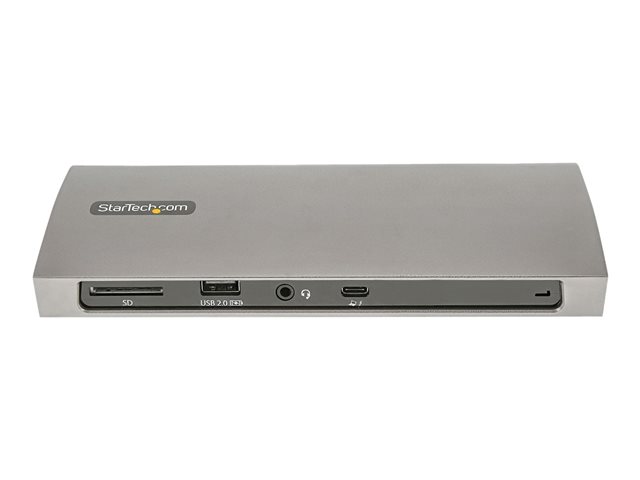

The docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications, including daisy chaining up to five devices from the TB4/USB4 ports. The dock features: • 3x downstream Thunderbolt 4/USB4 ports to flexibility connect Thunderbolt 4, Thunderbolt 3, and USB peripheral devices and display(s), with the added benefit of 15W (3A) device charging per each port. • 3x USB 3.2 Gen 2 (10Gbps) Type-A ports to connect USB peripheral devices. • 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones, or connecting USB Human Interface Device(s) (HID), such as a USB transceiver, to minimize signal interference. • 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN). • 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards. • 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset.
High-Resolution Display Connectivity
Up to two monitors can be attached to any of the downstream Thunderbolt 4 ports using USB-C monitors, Thunderbolt monitors or USB-C DP Alt Mode to video adapters (video adapter required, each sold separately). On Thunderbolt 4 Windows laptops the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 8K 30Hz, 6K 60Hz, 5K 60Hz, 4K 60Hz. On Thunderbolt 4 M1 Max and M1 Pro MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz. On M1 Thunderbolt 3 MacBooks the dock can support a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz. On Intel Thunderbolt 3 MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz. On USB4 Windows laptops the dock can support a single monitor with resolutions up to 8K 30Hz, 6K 60Hz, 5K 60Hz, 4K 60Hz.
96W USB Power Delivery Certified
The Thunderbolt 4 docking station includes a 135W power adapter and supports 96W USB power delivery. This enables the dock to charge your MacBooks and Thunderbolt 4 and USB4 Windows laptops. Plus, the added power provides downstream TB4/USB4 ports with 15W (3A) for device charging, and enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.
Thunderbolt Certified
To ensure compatibility with your Thunderbolt 4 computers and Thunderbolt 4/3 peripheral devices. This certification provides assurance the dock will be fully compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops including: Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, and Lenovo X1 Carbon 9th Gen. The dock is also compatible with M1 & Intel Thunderbolt 3 MacBooks (11.0 & up).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: •Text | Advanced Windows Layout Utility : To setup and save custom windows layouts. •Text | Mac Address Pass-Through Utility : To improve network security. •Text | USB Event Monitoring Utility : To track and log connected USB devices •Text | Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN. Note: • The docking station is compatible with Thunderbolt 4/USB4 Windows laptops, Thunderbolt 4 M1 Max/M1 Pro MacBooks, and Thunderbolt 3 M1/Intel MacBooks (macOS 11 Big Sur or higher). • USB4 Windows laptops may support dual-displays over Thunderbolt if supported by the USB4 Windows Laptop.

Specification Summary

Product Description

Startech Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m - docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE

Product Type

Docking station

Docking Interface

Thunderbolt 4

Video Interfaces

3 x Thunderbolt

Dimensions (WxDxH)

19.4 cm x 8.4 cm x 2.9 cm

Weight

1 kg

Colour

Grey, black

Localisation

North America

Networking

Gigabit Ethernet

Power

Power adapter AC 100-240 V

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

065030895064

General

Product Type

Docking station

Width

19.4 cm

Depth

8.4 cm

Height

2.9 cm

Weight

1 kg

Enclosure Colour

Grey, black

Localisation

North America

Video

Max Resolution Details

4K - 60 Hz (Dual Display) ¦ 8K - 30 Hz (Single Display) ¦ 5K - 60 Hz (Single Display) ¦ 6K - 60 Hz (Single Display)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet

Compliant Standards

USB 2.0, USB 3.2

Expansion / Connectivity

Expansion Slots

1 (total) / 1 (free) x SD / MMC Memory Card

Interfaces

1 x USB 2.0 with Battery Charging 1.2 (7.5 W) - 4 pin USB Type A ¦ 3 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 3 x Thunderbolt 4 - 24 pin USB-C ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x audio - headphones/microphone - mini-phone stereo 3.5 mm 4-pole ¦ 1 x Thunderbolt 4 with Power Delivery (96W) - 24 pin USB-C

Miscellaneous

Input Device

SD card reader, microSD card reader, MMC card reader

Cables Included

1 x Thunderbolt 4 cable - external - 80 cm

Features

Security lock slot (cable lock sold separately), wake on LAN, LED indicator, Preboot Execution Environment (PXE) support, full duplex support, mini security lock slot (cable lock sold separately), auto MDIX support, 96W power delivery, aluminium/plastic enclosure

Security Slot Type

Kensington security slot

Compliant Standards

RoHS, USB Battery Charging Specification Rev. 1.2

Power

Power Device

Power adapter

Voltage Required

AC 100-240 V

System Requirements

OS Required

Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Microsoft Windows 10 / 11, Apple macOS Ventura 13.0
