Startech Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort, 85W Power Delivery Charging, 6-Port USB 3.0 Hub, SD 4.0

Images for illustrative purposes

Startech Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort, 85W Power Delivery Charging, 6-Port USB 3.0 Hub, SD 4.0

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (TB3DOCK2DPPU) - (ECE4636002)

Startech Thunderbolt 3 Dock, Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort, 85W Power Delivery Charging, 6-Port USB 3.0 Hub, SD 4.0 Reader, GbE, Audio, Windows & Mac - 85W PD TB3 Dock (TB3DOCK2DPPU) - Docking station - Thunderbolt 3 - D

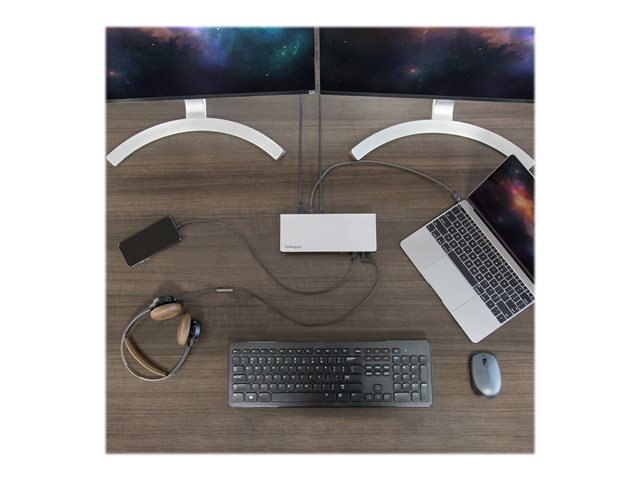

Create a Dual-4K 60Hz Workstation
Easy Installation & Deployment

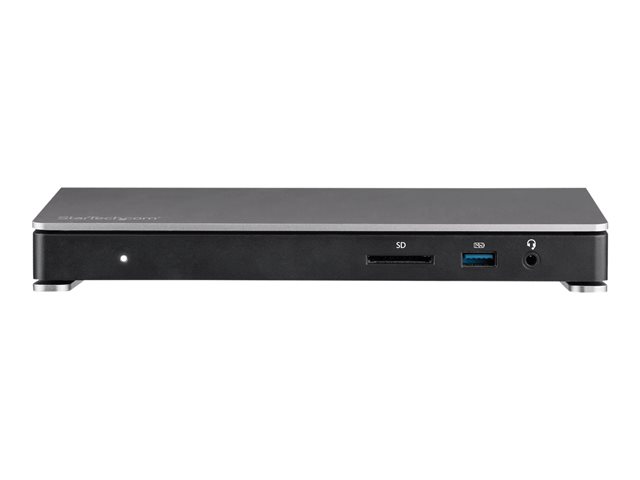

Plenty of Ports Including SD Card Reader
85W Power Delivery
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

FREE Delivery on orders over €250

9 Available to Ship
Order within 16Hrs 6Mins for: Delivery (8 Jun or 9 Jun)

€155.73 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader. Create a Dual-4K 60Hz Workstation This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display. Connect your laptop to: 1 x 4K monitor via the DP Port 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included) OR 1 x 5K monitor via the DP and TB3 USB-C ports Easy Installation & Deployment Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters. Plenty of Ports Including SD Card Reader The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations. 85W Power Delivery Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter. Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: Advanced Windows Layout Utility : To setup and save custom windows layouts. Mac Address Pass-Through Utility : To improve network security. USB Event Monitoring Utility : To track and log connected USB devices Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

Thunderbolt 3

Video Interfaces

Dimensions (WxDxH)

22.2 cm x 8.7 cm x 3.4 cm

Weight

492 g

Colour

Space grey

Localisation

United Kingdom, Europe

Networking

Gigabit Ethernet

Power

Power adapter AC 100 - 240 V 180 Watt Power Provided

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030870726

General

Product Type

Docking station

Width

22.2 cm

Depth

8.7 cm

Height

3.4 cm

Weight

492 g

Enclosure Colour

Space grey

Localisation

United Kingdom, Europe

Networking

Data Link Protocol

Gigabit Ethernet

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Expansion / Connectivity

Interfaces

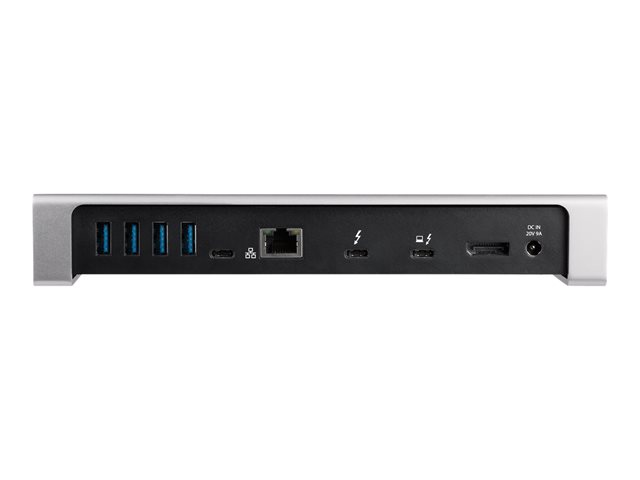

2 x Thunderbolt 3 - 24 pin USB-C ¦ 1 x display / video - DisplayPort output - 20 pin DisplayPort ¦ 1 x USB-C - 24 pin USB-C ¦ 1 x SuperSpeed USB 3.0 with Fast Charging - 9 pin USB Type A ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x audio - line-out/headphones - mini-phone stereo 3.5 mm ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45

Compatible Slots

SD / MMC Memory Card

Miscellaneous

Cables Included

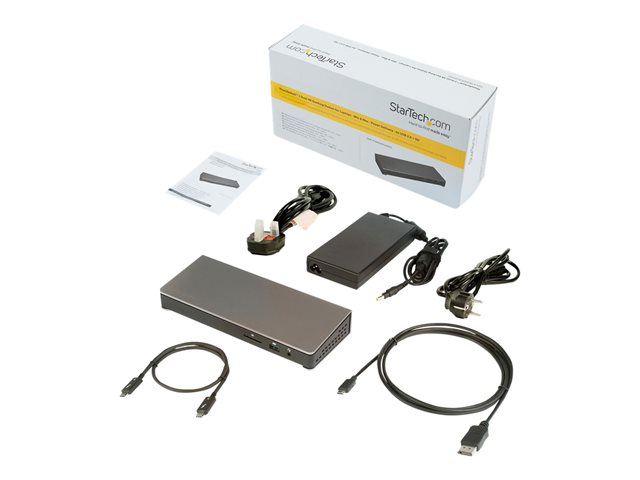

1 x DisplayPort / USB-C cable - external - 1.8 m ¦ 1 x Thunderbolt cable - external ¦ 2 x power cable

Features

Dual display support, UASP transfer protocol, Preboot Execution Environment (PXE) support, full duplex support, 4K Ultra HD, 5K Ultra HD

Compliant Standards

FCC, RoHS, USB Battery Charging Specification Rev. 1.2

Power

Power Device

Power adapter

Voltage Required

AC 100 - 240 V

Power Provided

180 Watt

System Requirements

OS Required

Apple macOS 10.12 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Windows 8 / 8.1 / 10 / 11, Apple macOS 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Weight

1.5 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C
