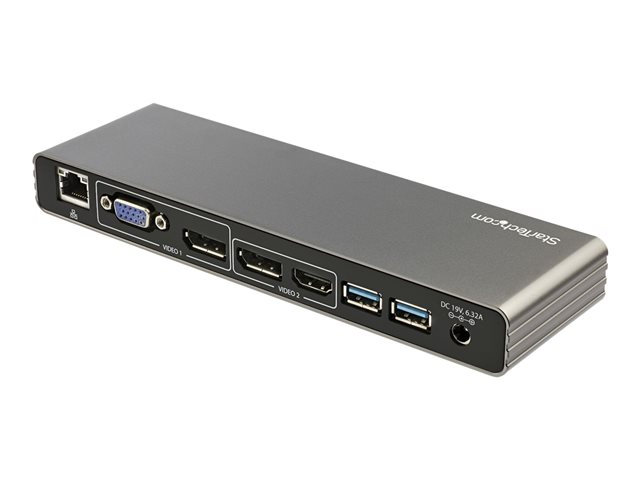

Startech Thunderbolt 3 Dock, Dual 4K 60Hz Monitor

Images Manuals

Startech Thunderbolt 3 Dock, Dual 4K 60Hz Monitor TB3 Docking Station with DisplayPort, HDMI & 1080p VGA, 85W Power Delivery & Charging, Gigabit Ether

Images for illustrative purposes

Startech Thunderbolt 3 Dock, Dual 4K 60Hz Monitor TB3 Docking Station with DisplayPort, HDMI & 1080p VGA, 85W Power Delivery & Charging, Gigabit Ether

View all STARTECH.COM Docking | Replicator - Visit the STARTECH.COM Store (TB3DK2DHVUE) - (MMEV934396)

Startech Thunderbolt 3 Dock, Dual 4K 60Hz Monitor TB3 Docking Station with DisplayPort, HDMI & 1080p VGA, 85W Power Delivery & Charging, Gigabit Ethernet, Universal Thunderbolt 3 Dock - TB3 Dock w/ 85W PD (TB3DK2DHVUE) -

Easy Installation & Deployment
Speed & Flexibility with 3 Monitor Options
The Ports You Need Most
Power & Charge with 85W Power Delivery

FREE Delivery on orders over €250

30 Available to Ship
Order within 8Hrs 23Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€111.67~~

€94.71 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Easy Installation & Deployment

Simply connect the Thunderbolt 3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required. Thunderbolt 3 uses the reversable USB-C connector Speed & Flexibility with 3 Monitor Options

This Thunderbolt 3 docking station with charging supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DP, HDMI and VGA.

The dock offers many dedicated dual-video options: • 2x DisplayPort (4096 x 2160p @ 60Hz)

• 1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)

• 1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)

• 1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz) The Ports You Need Most

Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port on your TB3 dock. Connect your USB devices with two USB 3.0 Type-A ports.

Power & Charge with 85W PD

Through a single 120W power adapter, the dual 4K docking station simultaneously powers and charges your laptop and your attached peripherals while it's docked. It provides up to 85W of charging power through Power Delivery. The TB3 docking station is fully Thunderbolt 3 Certified connecting to your laptops USB Type C port and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specification Summary

Product Description

Product Type

Docking station

Docking Interface

Thunderbolt 3

Video Interfaces

VGA, HDMI, 2 x DP

Dimensions (WxDxH)

5.86 cm x 19.6 cm x 2.35 cm

Weight

340 g

Colour

Grey

Localisation

United Kingdom, Europe

Networking

Gigabit Ethernet

Power

Power adapter AC 120/230 V

Manufacturer Warranty

3-year warranty

Specifications

EAN / GTIN:

0065030876247

General

Product Type

Docking station

Width

5.86 cm

Depth

19.6 cm

Height

2.35 cm

Weight

340 g

Enclosure Colour

Grey

Localisation

United Kingdom, Europe

Networking

Data Link Protocol

Gigabit Ethernet

Expansion / Connectivity

Interfaces

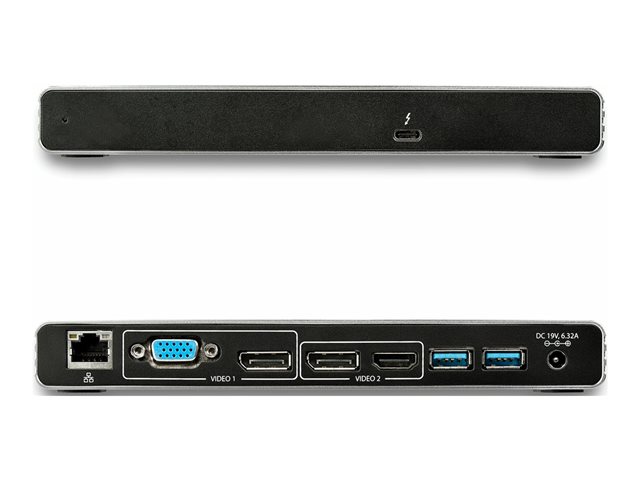

1 x Thunderbolt 3 - 24 pin USB-C ¦ 2 x display / video - DisplayPort output - 20 pin DisplayPort ¦ 1 x display / video - HDMI output - 19 pin HDMI Type A ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 2 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45

Miscellaneous

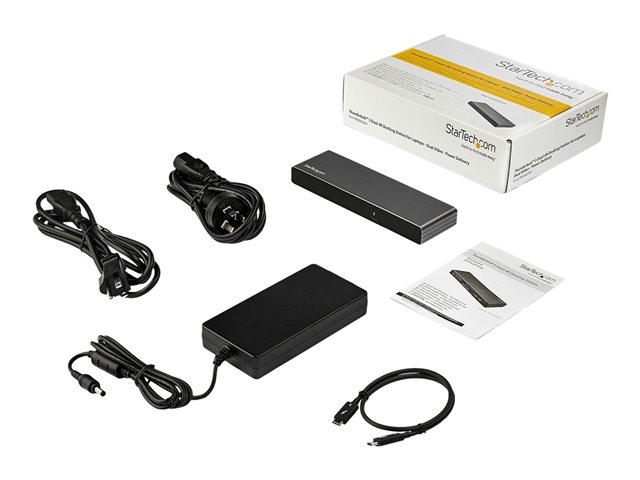

Cables Included

1 x Thunderbolt cable - external - 50 m ¦ 2 x power cable

Features

Dual display support, UASP transfer protocol, 1 USB 3.0 fast charging port, Preboot Execution Environment (PXE) support, full duplex support, 4K Ultra HD, 85W power delivery, auto MDIX support

Compliant Standards

FCC, RoHS, WEEE

Power

Power Device

Power adapter

Voltage Required

AC 120/230 V

System Requirements

OS Required

Apple macOS 10.12 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0

Manufacturer Warranty

Service & Support

Limited warranty - 3 years

Dimensions & Weight (Shipping)

Shipping Weight

1.3 kg

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C
