APC High Performance Battery Module - UPS battery

Images Manuals

Images for illustrative purposes

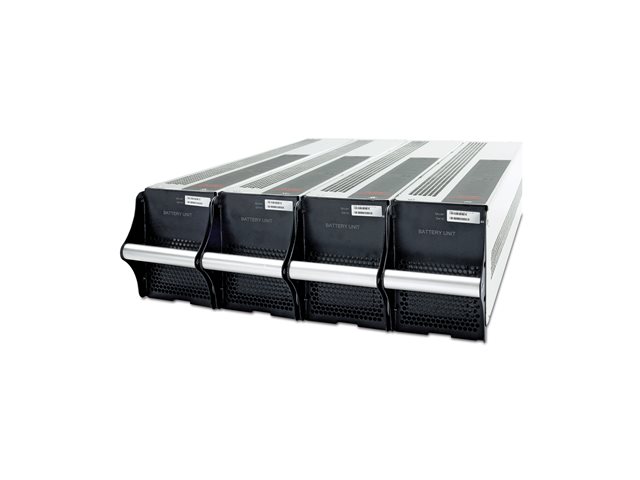

APC High Performance Battery Module

View all APC UPS Accessories - Visit the APC Store (SYBT9-B4LL) - (ECE4572165)

Please contact sales for freight costs

Intelligent battery management

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 23-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€3044.25~~

€2384.38 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

High Performance Long Life 10 Yrs Battery Module for Symmetra PX 48/96/160KW.

Features Summary

Allows quick addition of runtime capacity or replacement of existing battery modules. Installed modules are automatically recognized by the system.
Provides N+1 redundancy without sacrificing load capacity; cabinets can be added after initial installation.
Enables fast battery replacement, lowering Mean Time to Repair (MTTR).
An optional door alarm switch kit (APC part # AP9513) combined with an APC Environment Monitoring Unit (APC part # AP9312TH or AP9312THI) permits access monitoring of NetShelter VX enclosures. It is possible to be notified via e-mail, pager, or SNMP if an enclosure door has been opened.
Delivers higher availability through redundant batteries.
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Specification Summary

Product Description

APC High Performance Battery Module - UPS battery string - Lead Acid

Device Type

UPS battery string

Weight

100.45 kg

Battery

Lead Acid

Batteries Qty

Dimensions (WxDxH)

42.8 cm x 70 cm x 15.9 cm

Manufacturer Warranty

1-year warranty

Designed For

P/N: SY10K100F, SY128K160H-NB, SY160K160H, SY160K160H-NB, SY16K48H-PD-KIT, SY16K48H-PDNB, SY32K160H/KIT, SY32K160H-NB, SY32K48H-PD/KIT, SY32K48H-PDNB, SY32K96H, SY32K96H-NB, SY32K96H-PD, SY48K48H-PDNB, SY64K160H-NB, SY64K96H, SY64K96H-NB, SY64K96H-PD, SY96K160H-NB, SY96K96H, SY96K96H-NB, SY96K96H-PD

Specifications

EAN / GTIN:

8592978130176

General

Device Type

UPS battery string

Battery

Quantity

Technology

Lead Acid

Miscellaneous

Compliant Standards

UL 1778, RoHS, REACH, China RoHS

Manufacturer Warranty

Service & Support

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

18 °C

Max Operating Temperature

27 °C

Humidity Range Operating

0 - 95%

Dimensions & Weight

Width

42.8 cm

Depth

70 cm

Height

15.9 cm

Weight

100.45 kg

Dimensions & Weight (Shipping)

Shipping Width

60 cm

Shipping Depth

81 cm

Shipping Height

18 cm

Shipping Weight

107.4 kg

Compatibility Information

Designed For

P/N: SY10K100F, SY128K160H, SY128K160H-NB, SY128K160H-PD, SY160K160H, SY160K160H-NB, SY160K160H-PD, SY16K48H-PD, SY16K48H-PD-KIT, SY16K48H-PDNB, SY32K160H, SY32K160H/KIT, SY32K160H-NB, SY32K160H-PD, SY32K48H-PD, SY32K48H-PD/KIT, SY32K48H-PDNB, SY32K96H, SY32K96H-NB, SY32K96H-PD, SY48K48H-PD, SY48K48H-PDNB, SY64K160H, SY64K160H-NB, SY64K160H-PD, SY64K96H, SY64K96H-NB, SY64K96H-PD, SY96K160H, SY96K160H-NB, SY96K160H-PD, SY96K96H, SY96K96H-NB, SY96K96H-PD
