Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.Operate a PC from up to 100m away, with uncompressed 1080p HDMI video and USB keyboard / mouse. The SV565UTPHDU USB HDMI KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices.
A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3D support, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display.

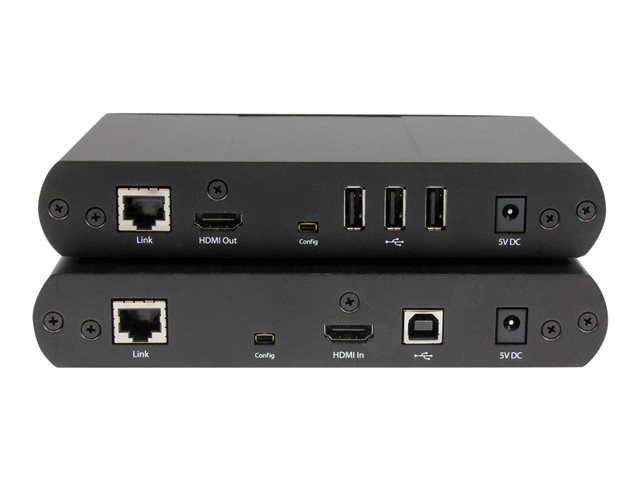

This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables.
Features Summary
- Effective long-distance connectivity
With support for a maximum transfer distance of 100 m, this extender allows users to maintain high-performance video and audio transmission even over extended distances, suitable for complex setups. - Reliable video resolution
Capable of supporting up to 1080p resolution, this KVM extender delivers clear and vibrant visuals, making it ideal for applications requiring detailed imagery. - Compliant with important standards
Designed to meet FCC and RoHS compliance, this product ensures a reliable and safe user experience while also being environmentally friendly. - Robust USB functionality
Utilizing USB 2.0 technology, this device ensures consistent and dependable connections for both keyboard and mouse, enhancing user control and interaction. - Versatile environmental performance
Operating within a temperature range of 0°C to 40°C and a humidity range of 20 to 80%, this KVM extender is well-suited for various settings, from offices to data centers.
Specification Summary
Product Description

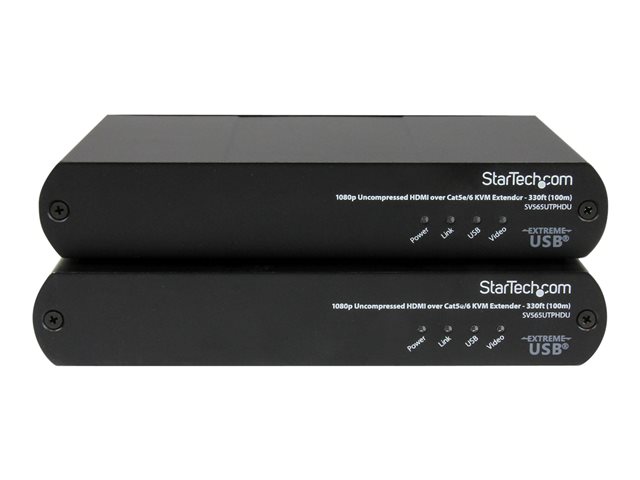

Startech 330ft (100m) USB HDMI over CAT5e / CAT6 KVM Extender - 1080p Uncompressed HD Video - IT Grade KVM Console Extender for PC (SV565UTPHDU) - KVM / USB extender
Device Type
KVM / USB extender
Transmission Medium
CAT 5e/6
Max Transfer Distance
100 m
Dimensions (WxDxH)
17.8 cm x 11.2 cm x 3 cm
Manufacturer Warranty
2-year warranty
Designed For
P/N: SVA5M4NEUA
