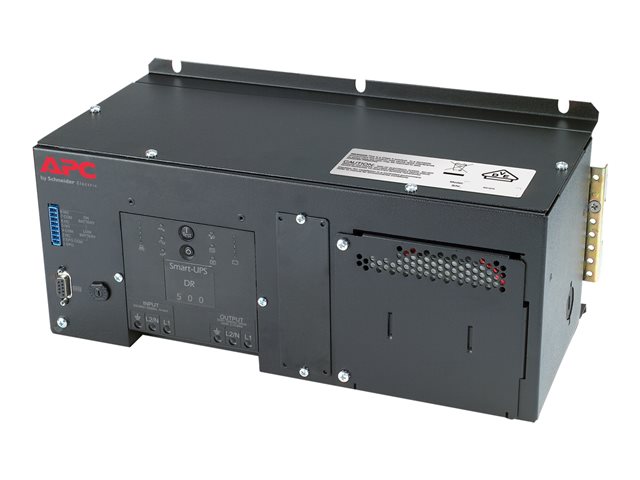

APC Industrial Panel and DIN Rail UPS with Standard Battery

View all APC Uninteruptable Power Supply - Visit the APC Store (SUA500PDRI-S) - (ECE2684225)

Please contact sales for freight costs

User-replaceable batteries

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 18-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€847.47~~

€719.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Proven Industrial UPS power protection for control applications and harsh environments.

Features Summary

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Specification Summary

Product Description

APC Industrial Panel and DIN Rail UPS with Standard Battery - UPS - 325 watt - 500 VA

Device Type

UPS - DIN rail mountable

Weight

12.86 kg

Input Voltage

AC 220/230/240 V

Output Voltage

AC 220/230/240 V ± 5%

Power Capacity

325 watt / 500 VA

Input Connectors

Output connectors

1 x hardwire 3-wire (1PH + N + G)

Battery

Lead Acid

Batteries Qty

Run Time (Up To)

8 min at full load

Networking

RS-232

Colour

Black

Dimensions (WxDxH)

36.2 cm x 17.1 cm x 14.8 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

5054444437071

General

Device Type

UPS - DIN rail mountable

Colour

Black

Power Device

UPS Technology

Line interactive

Input Voltage

AC 220/230/240 V

Input Voltage Range

AC 160 - 285 V

Input Voltage Range (Adjustable)

AC 151 - 302 V

Frequency Required

50/60 Hz

Input Connectors

Power Output Connectors Details

1 x hardwire 3-wire (1PH + N + G)

Output Voltage

AC 220/230/240 V ± 5%

Power Capacity

325 watt / 500 VA

Surge Suppression

Yes

Surge Energy Rating

540 joules

Circuit Protection

Circuit breaker

Efficiency

94%

Battery

Quantity

Technology

Lead Acid

Run Time (Up To)

8 min at full load ¦ 24 min at half load

Recharge Time

2.5 hours

Networking

Remote Management Interface

RS-232

Expansion / Connectivity

Interfaces

1 x management (RS-232) - 9 pin D-Sub (DB-9)

Expansion Slots

1 (total) / 1 (free) x SmartSlot

Miscellaneous

Compliant Standards

UL, UL 1449, RoHS, REACH

Manufacturer Warranty

Service & Support

Limited warranty - replacement - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Sound Emission

55 dBA

Dimensions & Weight

Width

36.2 cm

Depth

17.1 cm

Height

14.8 cm

Weight

12.86 kg

Dimensions & Weight (Shipping)

Shipping Width

29.7 cm

Shipping Depth

29.7 cm

Shipping Height

48.1 cm

Shipping Weight

13.32 kg
