Startech 7-Port USB 3.0 Hub - Metal Industrial USB

Images Manuals

Images for illustrative purposes

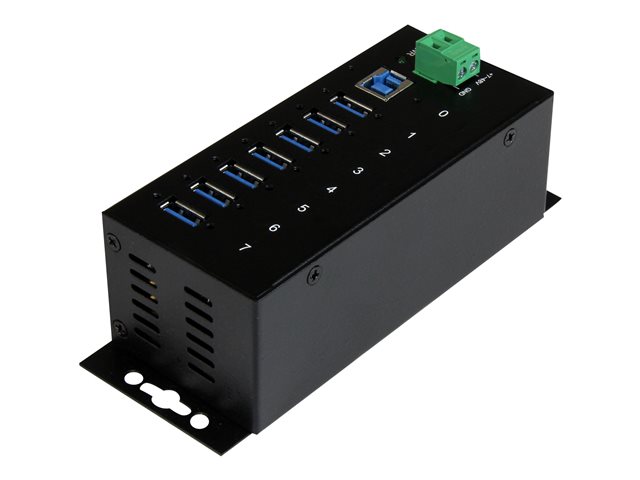

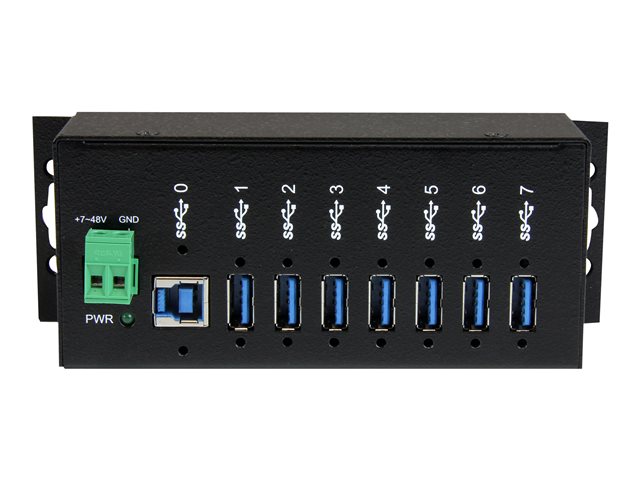

Startech 7-Port USB 3.0 Hub

View all STARTECH.COM Hubs - Visit the STARTECH.COM Store (ST7300USBME) - (WCEST7300USBME)

Startech 7-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7300USBME) - hub - 7 ports

Secure Connectivity
Robust Design
Safety Features
Flexible Installation
Wide Operational Range

FREE Delivery on orders over €250

4 Available to Ship
Order within 3Hrs 39Mins for: Delivery (23 Sep or 24 Sep)

Was €165.91 -84%

€26.92 Incl Vat

Price at 30 Day Low

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail |5 Gbps. This TAA compliant 7-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

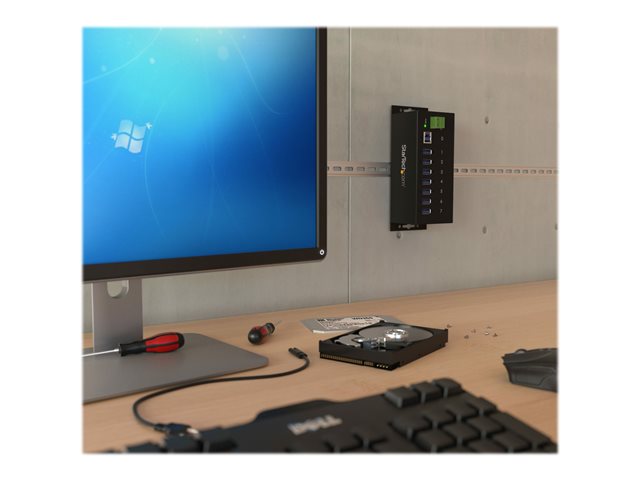

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.

The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specification Summary

Product Description

Startech 7-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7300USBME) - hub - 7 ports

Device Type

Hub - 7 ports

Subtype

USB

Ports

7 x SuperSpeed USB 3.0

Features

Surge protection, rugged, 15KV ESD Protector, metal housing

Compliant Standards

USB 1.1, USB 2.0, USB 3.0

Power

DC 7 - 48 V

Dimensions (WxDxH)

5.5 cm x 12.2 cm x 4.3 cm

Weight

650 g

Colour

Black

Manufacturer Warranty

2-year warranty

Designed For

P/N: ITB20D3250, USB312SAT3CB, USB315CB2M, USBLT1MW, USBLT1MWS, USBLT2MBR, USBLT2MW, USBLT30CMW, USBLTM1MBK, USBLTM1MWH, UUSBHAUB1RA, UUSBHAUB3, UUSBHAUB3LA, UUSBHAUB3RA, UUSBHAUB6IN, UUSBHAUB6RA

Specifications

EAN / GTIN:

0065030860352

General

Device Type

Hub - 7 ports

Enclosure Type

DIN rail mountable, wall-mountable

Subtype

USB

Ports

7 x SuperSpeed USB 3.0

Features

Surge protection, rugged, 15KV ESD Protector, metal housing

Compliant Standards

USB 1.1, USB 2.0, USB 3.0

Processor

1 x Genesys Logic GL3520

Status Indicators

Power

Expansion / Connectivity

Interfaces

7 x USB 3.0 Type A ¦ 1 x USB 3.0 Type B

Power

Voltage Required

DC 7 - 48 V

Miscellaneous

Colour

Black

Cables Included

1 x SuperSpeed USB cable

Compliant Standards

FCC, RoHS

Dimensions & Weight

Width

5.5 cm

Depth

12.2 cm

Height

4.3 cm

Weight

650 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Humidity Range Operating

5 - 95%

Min Storage Temperature

-20 °C

Max Storage Temperature

85 °C

Compatibility Information

Designed For

P/N: ITB20D3250, USB312SAT3CB, USB315CB2M, USBLT1MW, USBLT1MWS, USBLT2MBR, USBLT2MW, USBLT30CMW, USBLTM1MBK, USBLTM1MWH, UUSBHAUB1RA, UUSBHAUB3, UUSBHAUB3LA, UUSBHAUB3RA, UUSBHAUB6IN, UUSBHAUB6RA
