Startech HDMI Over IP Extender Kit - Advanced Comp

Images Manuals

Images for illustrative purposes

Startech HDMI Over IP Extender Kit

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (ST12MHDLNHK) - (ECE4879064)

Startech HDMI Over IP Extender Kit - Advanced Compression - Transmitter & Receiver (ST12MHDLNHK) - Video/audio/infrared extender - HDMI - up to 15 m - TAA Compliant - for P/N: ST12MHDLNHR

Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
Flexible & Scalable Deployment Options
Comprehensive Product Testing & Expert Technical Support

FREE Delivery on orders over €250

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€469.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

PRODUCT TECHNICAL SPECIFICATIONS: WARRANTY INFORMATION ________________________________________ Warranty: 2 Years HARDWARE ________________________________________ Audio: Yes Cabling: Cat 5e UTP or better Daisy-Chain: Yes Ports: 1 Rack-Mountable: Yes PERFORMANCE ________________________________________ Audio Specifications: 2-channel Maximum Cable Length: 50 ft (15.2 m) Maximum Digital Resolutions: 1920 x 1080 @ 60Hz (1080p) Wide Screen Supported: Yes POWER ________________________________________ Input Current: 0.3 A Input Voltage: 100 - 240 AC Output Current: 1 A Output Voltage: 5 DC Plug Type: USB Mini-B (5 pin) Power Source: AC Adapter Included ENVIRONMENTAL ________________________________________ Humidity: 0% - 80 % Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -10°C to 60°C (14°F to 140°F).

Features Summary

Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements. With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.
Flexible & Scalable Deployment Options

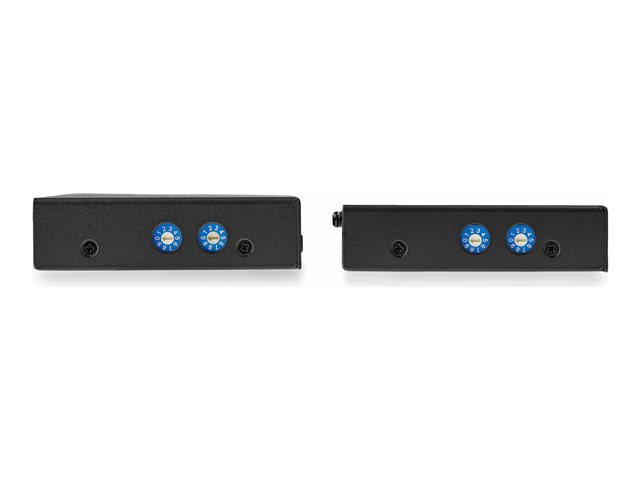

The HDMI over LAN extender offers many configurations to accommodate your set up. This HDMI video extender provides four ways to control your video network configurations. • Rotary DIP switches located on the Tx and Rx • Your computer connected to the transmitter or receiver via a serial cable • Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone) • Infrared (IR) remote control using the included receiver
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

Specification Summary

Product Description

Startech HDMI Over IP Extender Kit - Advanced Compression - Transmitter & Receiver (ST12MHDLNHK) - video/audio/infrared extender - HDMI - TAA Compliant

Device Type

Video/audio/infrared extender

Form Factor

External

Localisation

Australia, New Zealand, United Kingdom, Europe, North Asia

Data Link Protocol

HDMI

Max Transfer Distance

15 m

Power

AC 120/230 V

Dimensions (WxDxH)

9.7 cm x 13 cm x 2.8 cm

Weight

448 g

TAA Compliant

Yes

Manufacturer Warranty

2-year warranty

Designed For

P/N: ST12MHDLNHR

Specifications

EAN / GTIN:

0065030878760

General

Device Type

Video/audio/infrared extender

Form Factor

External

Colour

Black

Localisation

Australia, New Zealand, United Kingdom, Europe, North Asia

Networking

Connectivity Technology

Wired

Data Link Protocol

HDMI

Max Transfer Distance

15 m

Status Indicators

Status

Features

1080p resolution support, daisy-chaining support, 2 channels

Expansion / Connectivity

Interfaces

1 x HDMI (input) - 19 pin HDMI Type A female ¦ 1 x HDMI (output) - 19 pin HDMI Type A female ¦ 1 x IR (input) - mini jack female ¦ 1 x IR (output) - mini jack female ¦ 1 x audio (input) - mini jack ¦ 1 x audio (output) - sub-mini jack

Miscellaneous

Included Accessories

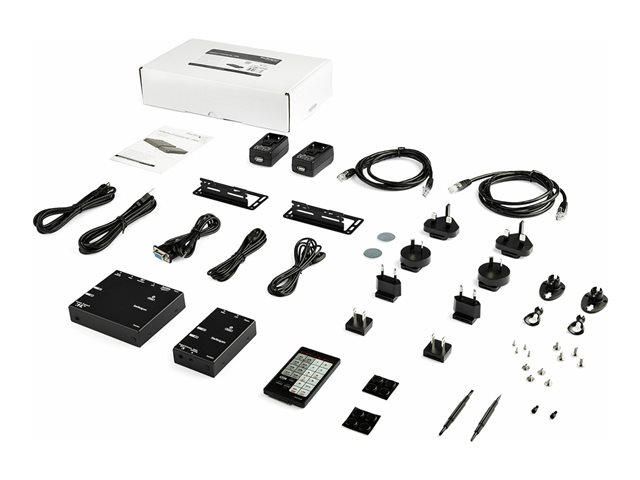

Remote control, IR receiver, IR transmitter, 8 rubber feet, screwdriver

Cables Included

2 x network cable ¦ 1 x mini-USB type B to USB type A power cable ¦ 2 x DB-9 to 2.5 mm serial adapter cable

Rack Mounting Kit

Included

Compliant Standards

FCC, RoHS

TAA Compliant

Yes

Power

Power Device

External power adapter

Installed Qty

Voltage Required

AC 120/230 V

Dimensions & Weight

Width

9.7 cm

Depth

13 cm

Height

2.8 cm

Weight

448 g

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 80%

Compatibility Information

Designed For

P/N: ST12MHDLNHR
