<%=manufacture1 %> Logo FREE Delivery on orders over €250
**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 19-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP €1968.00
€1529.75 Incl Vat




Wishlist Compare Share

Overview

Range/Series Overview


IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.


Features Summary

  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Intelligent Card Slot
    Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
  • Serial connectivity
    Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
  • Automatic internal bypass
    Supplies utility power to the connected loads in the event of a UPS power overload or fault.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.

Specification Summary

Product Description

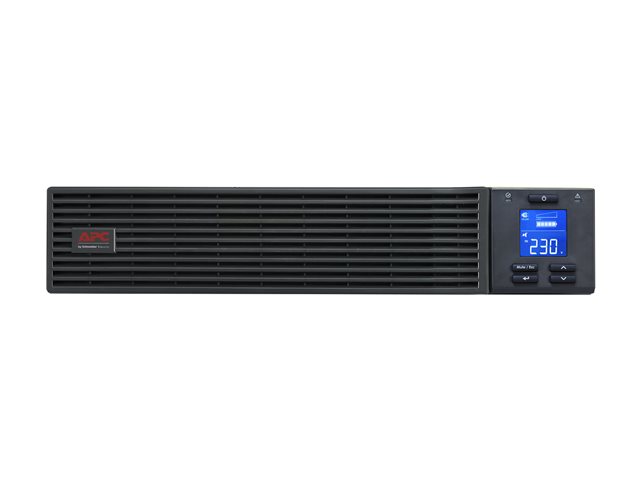

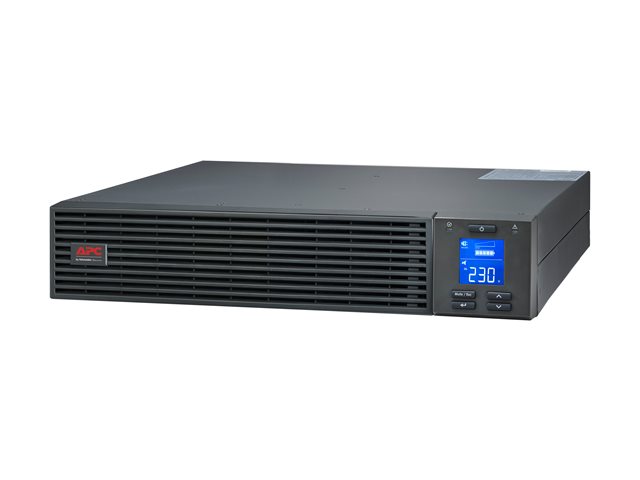

APC Easy UPS SRV SRVPM3KRIL - UPS - 2400 Watt - 3000 VA
Device Type
UPS - rack-mountable
Rack Size
2U
Weight
9.5 kg
Input Voltage
AC 230 V
Output Voltage
AC 220/230/240 V
Power Capacity
2400 Watt / 3000 VA

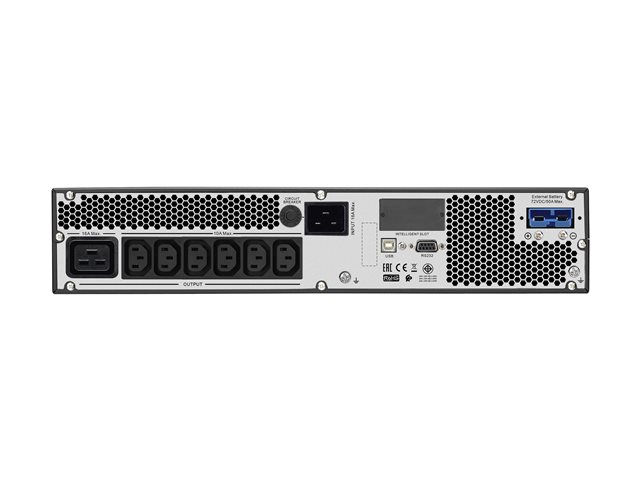

Input Connectors
1 x power IEC 60320 C20
Output connectors
6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Battery
No battery
Networking
RS-232, USB
Included Accessories
Rack mounting brackets, screws
Dimensions (WxDxH)
43.8 cm x 46.2 cm x 8.6 cm
Manufacturer Warranty
2-year warranty

Specifications

EAN / GTIN:
0731304403036
General
Device Type
UPS - rack-mountable
Height (Rack Units)
2U
Power Device
UPS Technology
On-line
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 280 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
1 x power IEC 60320 C20
Power Output Connectors Details
6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output Voltage
AC 220/230/240 V 50/60 Hz
Power Capacity
2400 Watt / 3000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Circuit Protection
Circuit breaker
Efficiency
88%
Power Factor (PF)
0.95
Battery
Type
No battery
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9)
Expansion Slots
1 (total) / 1 (free) x Intelligent Slot
Miscellaneous
Included Accessories
Rack mounting brackets, screws
Cables Included
USB cable - external ¦ Serial cable - external ¦ 2 x power cable - external
Rack Mounting Kit
Included
Features
Audible alarm, LCD display, internal bypass, LED indicators, automatic self-test, Eco-Mode, auto restart, generator compatible, visible alarm
Compliant Standards
IEC 62040-1-1, RoHS, REACH, IEC 62040-1-2, IP20
Software / System Requirements
Software Included
Drivers & Utilities
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95% (non-condensing)
Dimensions & Weight
Width
43.8 cm
Depth
46.2 cm
Height
8.6 cm
Weight
9.5 kg
Dimensions & Weight (Shipping)
Shipping Width
55.4 cm
Shipping Depth
24 cm
Shipping Height
70 cm
Shipping Weight
13.7 kg
