APC Easy UPS On-Line - UPS - extended runtime, har

Images Manuals

Images for illustrative purposes

APC Easy UPS On-Line

View all APC Uncategorised - Visit the APC Store (SRVL6KRILRK) - (MMECQ65701)

Easy UPS On-Line - UPS - extended runtime, hardwire outlet (1P+N+E), intelligent card slot, with rail kit - 6 kW - 6000 VA - Li-Ion

Intelligent Card Slot
Lithium-ion battery
ECO Mode
Multiple battery pack configuration 3
Intuitive LCD interface
Rack/Tower convertible
View More
Serial connectivity
USB connectivity
Intelligent battery management

FREE Delivery on orders over €250

SPO - THIS IS A SPECIAL ORDER ITEM AND CANNOT BE RETURNED AS UNWANTED OR CANCELLED.

10 Available to Ship
Order within 4Hrs 34Mins for: FREE Delivery (10 Jun or 11 Jun)

€7549.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

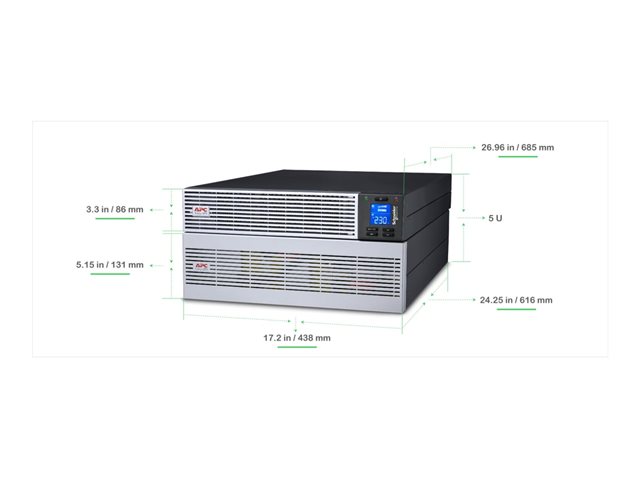

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 6000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 93.5% efficiency in on-line double conversion mode and up to 97% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 686.4mm (depth) x 133mm (height) 5U in total which includes 2U Power module and 3U external battery pack. The net weighs is 69.7kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Micro Data Center and Server room, Industrial Automation , Equipment Manufacturing. CB, CE, UN38.3 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Specification Summary

Product Description

APC Easy UPS On-Line - UPS - extended runtime, hardwire outlet (1P+N+E), intelligent card slot, with rail kit - 6 kW - 6000 VA - Li-Ion

Device Type

UPS - rack-mountable / external

Rack Size

Weight

69.2 kg

Input Voltage

AC 230 V

Output Voltage

AC 230 V

Power Capacity

6 kW / 6000 VA

Input Connectors

1 x hardwire 3-wire (1P+ N + E)

Battery

Lithium ion Lithium Ion

Run Time (Up To)

35 min at full load

Networking

RS-232, USB, RJ-11, RJ-45

Included Accessories

Stabilisation feet

Colour

Black, silver (front bezel)

Dimensions (WxDxH)

43.8 cm x 68.5 cm x 21.7 cm

Manufacturer Warranty

3-year warranty

Designed For

P/N: AP9544, SRVSMB001, VGL9901I

Specifications

EAN / GTIN:

0731304436812

General

Device Type

UPS - rack-mountable / external

Height (Rack Units)

Colour

Black, silver (front bezel)

Power Device

UPS Technology

On-line

Input Voltage

AC 230 V

Input Voltage Range

AC 120 - 300 V

Frequency Provided

50/60 Hz ± 4Hz

Frequency Required

40 - 70 Hz

Input Connectors

1 x hardwire 3-wire (1P+ N + E)

Output Voltage

AC 230 V 50/60 Hz

Power Capacity

6 kW / 6000 VA

Output Waveform

Sinewave

Surge Energy Rating

600 Joules

Efficiency

93.5% at 100% Load

Battery

Technology

Lithium Ion lithium ion

Voltage Provided

48 V

Recharge Time

5 hours

Networking

Remote Management Interface

RS-232, USB, RJ-11, RJ-45

Expansion / Connectivity

Interfaces

RS-232 ¦ USB ¦ Management - RJ-11 ¦ Management - RJ-45

Expansion Slots

1 (total) / 1 (free) x Intelligent Slot

Miscellaneous

Included Accessories

Stabilisation feet

Cables Included

RJ-45 cable ¦ RJ-11 cable ¦ RS-232 cable ¦ USB cable ¦ Battery cable ¦ Ground cable

Rack Mounting Kit

Included

Features

Extended runtime, double conversion, LCD display, internal bypass, low battery alarm, overload alarm

Compliant Standards

CB, UKCA, RCM, IRAM, TISI, UN38.3, IEC 62619, IP20, EU RoHS, REACH

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years ¦ Limited warranty - replace or repair - batteries - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

57.3 dBA

Dimensions & Weight

Width

43.8 cm

Depth

68.5 cm

Height

21.7 cm

Weight

69.2 kg

Dimensions & Weight (Shipping)

Shipping Width

60 cm

Shipping Depth

80 cm

Shipping Height

65.2 cm

Shipping Weight

85.9 kg

Compatibility Information

Designed For

P/N: AP9544, SRVSMB001, VGL9901I
