APC Easy UPS On-Line - UPS - 2700 Watt - 3000 VA -

Images Manuals

Images for illustrative purposes

APC Easy UPS On-Line

Name: APC Easy UPS On-Line
Brand: APC
SKU: ECE7894050
Price: 4105.04 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRVL3KRILRK) - (ECE7894050)

Model: APC Easy

Please contact sales for freight costs

Intelligent Card Slot
Lithium-ion battery
ECO Mode
Multiple battery pack configuration 3
Intuitive LCD interface
Rack/Tower convertible
View More
Serial connectivity
USB connectivity
Intelligent battery management

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 18-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€5473.50~~

€4105.04 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

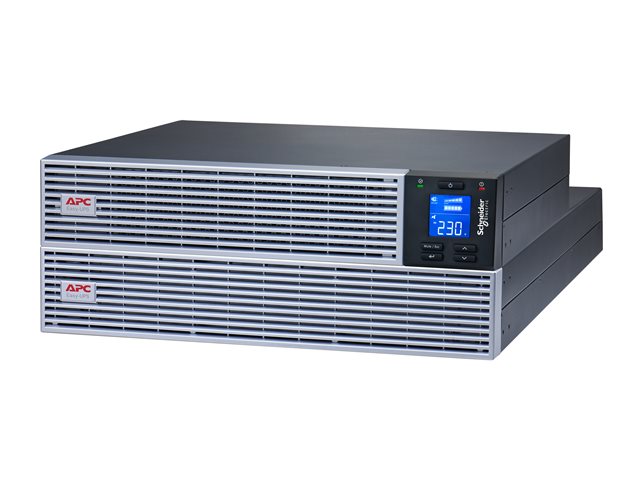

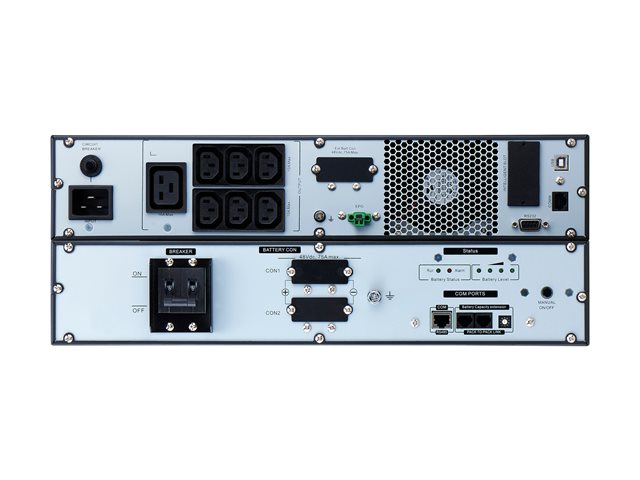

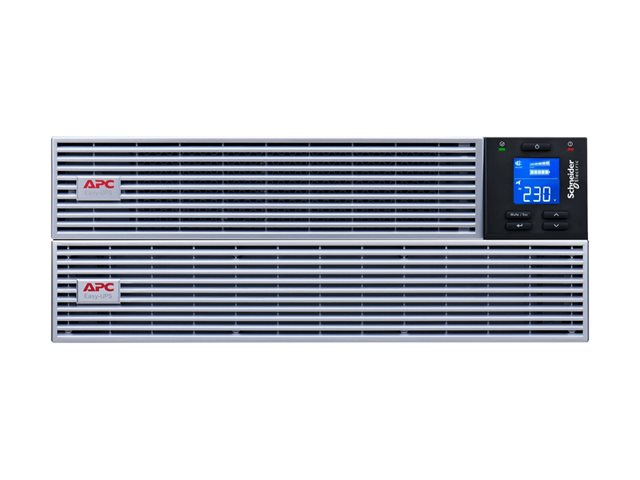

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line 4U rackmount lithium-ion UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRVL comes with IEC320 C20 input, 6x IEC320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It's ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. The UPS has a 3-year warranty and Lithium-Ion battery has a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Micro data centers, Surveillance, Server rooms, POS, and Healthcare IT. Rack/ Tower convertible design with default accessory kit.

Features Summary

Intelligent Card Slot
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
Lithium-ion battery
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Multiple battery pack configuration 3
Connect up to 3 battery packs for extended runtime applications.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

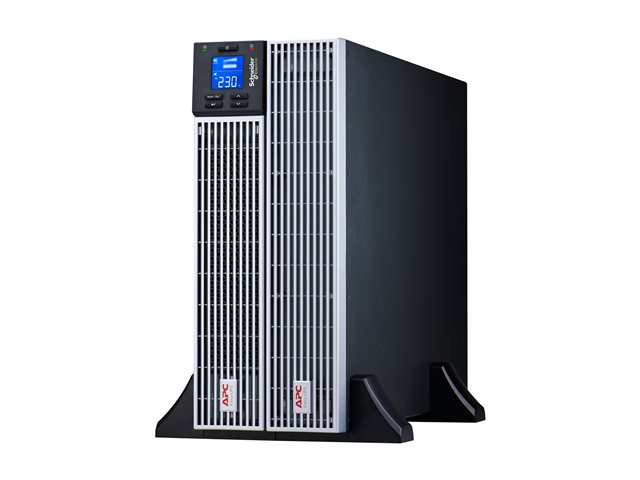

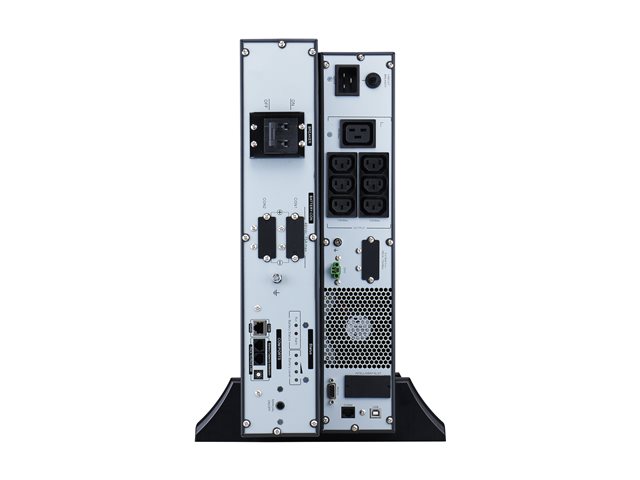

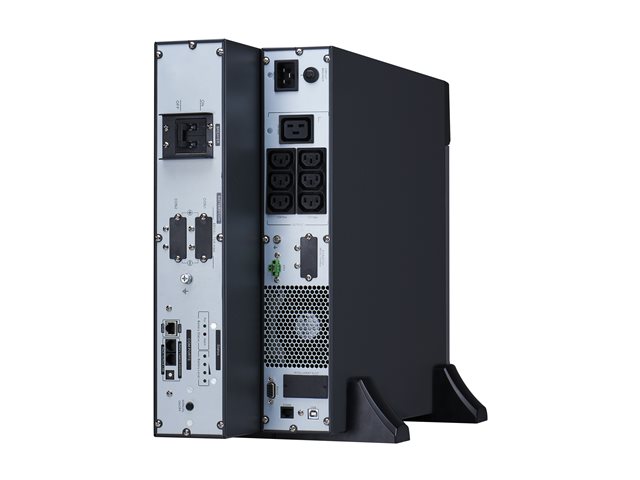

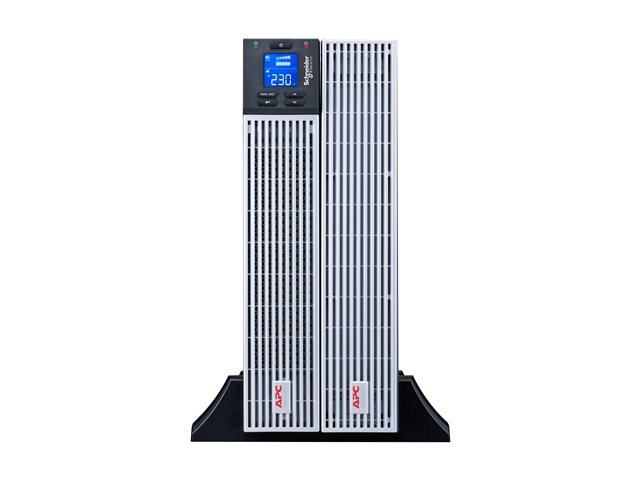

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Specification Summary

Product Description

APC Easy UPS On-Line - UPS - 2700 Watt - 3000 VA - Li-Ion

Device Type

UPS - rack-mountable

Rack Size

19" - 4U

Weight

38.3 kg

Input Voltage

AC 230 V

Output Voltage

AC 220/230/240 V

Power Capacity

2700 Watt / 3000 VA

Input Connectors

1 x power IEC 60320 C20

Output connectors

6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Battery

Lithium Ion

Networking

RS-232, USB

Included Accessories

Rack mounting rails, rack mounting brackets, tower feet, rail kit

Colour

Black with silver

Dimensions (WxDxH)

43.8 cm x 61.6 cm x 17.2 cm

Manufacturer Warranty

3-year warranty

Designed For

Modbus Card SRVSMB001

Specifications

EAN / GTIN:

731304436805

General

Device Type

UPS - rack-mountable

Height (Rack Units)

Rack Size

19"

Colour

Black with silver

Power Device

UPS Technology

On-line

Input Voltage

AC 230 V

Input Voltage Range

AC 110 - 300 V / 160 - 300 V

Frequency Provided

50/60 Hz ± 3Hz

Frequency Required

40 - 70 Hz

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Output Voltage

AC 220/230/240 V 50/60 Hz

Power Capacity

2700 Watt / 3000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

945 Joules

Circuit Protection

Circuit breaker

Efficiency

90%

Battery

Technology

Lithium Ion

Voltage Provided

48 V

Recharge Time

4.8 hours

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9)

Miscellaneous

Included Accessories

Rack mounting rails, rack mounting brackets, tower feet, rail kit

Cables Included

RJ-45 cable ¦ RJ-11 cable ¦ RS-232 cable ¦ Power cable (C13-C14) ¦ USB cable ¦ Battery cable

Features

Status LCD display, LCD display, internal bypass, LED indicators, low battery alarm

Compliant Standards

CB, IEC 62040-2, RoHS, WEEE, REACH, KC, IP20, EAC, China RoHS, RCM, UN38.3, IEC 62040-1, TISI, REACH SvHC, EU RoHS, IEC 60730-1, UKCA, IEC 62619 1st Ed., IEC/EN 62040-2

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 3 years ¦ Limited warranty - replace or repair - batteries - 5 years

Environmental Parameters

Min Operating Temperature

-20 °C

Max Operating Temperature

50 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

50 dBA

Dimensions & Weight

Width

43.8 cm

Depth

61.6 cm

Height

17.2 cm

Weight

38.3 kg

Dimensions & Weight (Shipping)

Shipping Width

80 cm

Shipping Depth

60 cm

Shipping Height

48 cm

Shipping Weight

50.62 kg

Compatibility Information

Designed For

APC Modbus Card SRVSMB001
