APC Easy UPS On-Line SRV - UPS - 5000 Watt - 5000

Images Manuals

Images for illustrative purposes

APC Easy UPS On-Line SRV

Name: APC Easy UPS On-Line SRV
Brand: APC
SKU: ECE7770492
Price: 2703.33 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRV5KRILRK) - (ECE7770492)

Model: APC Easy

Please contact sales for freight costs

Intelligent Card Slot

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 19-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€3597.75~~

€2703.33 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

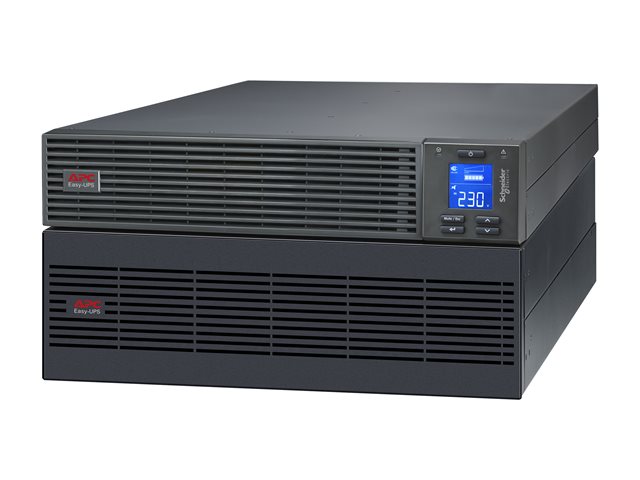

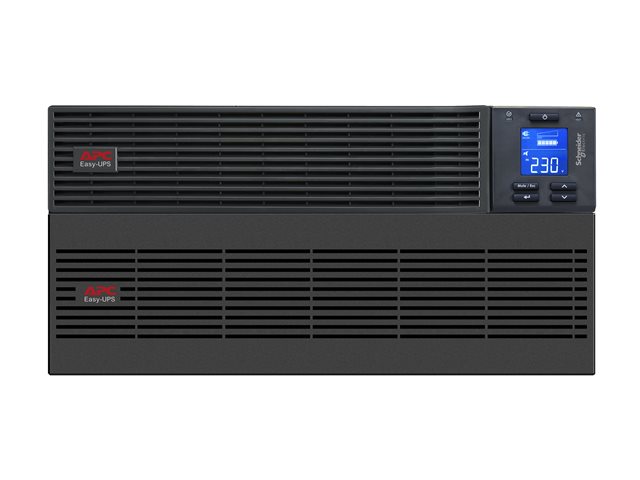

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA double-conversion on-line 5U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Features Summary

Intelligent Card Slot
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.

Specification Summary

Product Description

APC Easy UPS On-Line SRV - UPS - 5000 Watt - 5000 VA - 9 Ah - with Rail Kit

Device Type

UPS - rack-mountable

Rack Size

Weight

78 kg

Input Voltage

AC 230 V

Output Voltage

AC 220/230/240 V ± 1%

Power Capacity

5000 Watt / 5000 VA

Input Connectors

Hardwire 3-wire (1P+ N + E)

Battery

Lead Acid - 9 Ah

Run Time (Up To)

10 min at full load

Networking

USB, RS-232

Included Accessories

Rack mounting brackets, rack mounting rails

Colour

RAL 7010

Dimensions (WxDxH)

43.8 cm x 61.5 cm x 21.95 cm

Manufacturer Warranty

2-year warranty

Bundled with

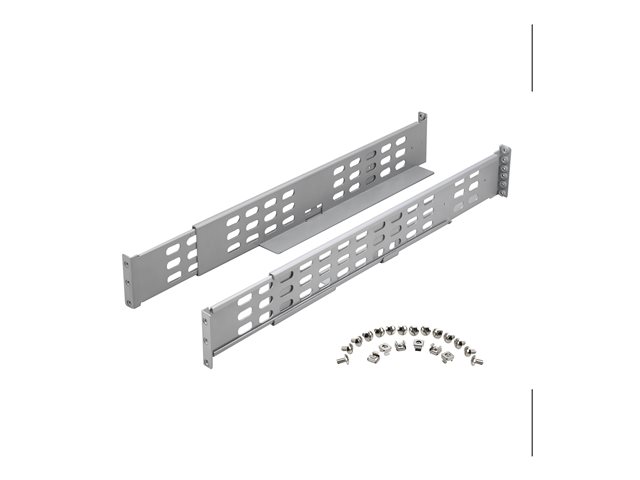

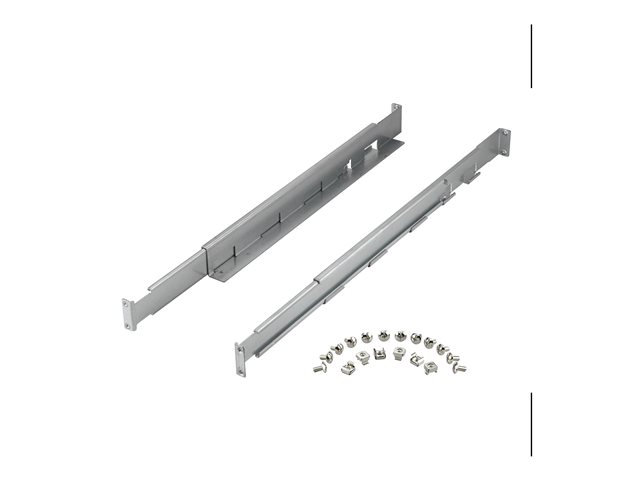

Rail Kit

Specifications

EAN / GTIN:

8592978475055

General

Device Type

UPS - rack-mountable

Height (Rack Units)

Colour

RAL 7010

Bundled with

Rail Kit

Power Device

UPS Technology

On-line

Input Voltage

AC 230 V

Input Voltage Range

AC 176 - 300 V

Frequency Provided

50/60 Hz ± 3Hz

Frequency Required

40 - 70 Hz

Input Connectors

Hardwire 3-wire (1P+ N + E)

Output Voltage

AC 220/230/240 V ± 1% - 50/60 Hz

Power Capacity

5000 Watt / 5000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

600 Joules

Efficiency

94%

Battery

Technology

Lead Acid

Voltage Provided

12 V

Capacity

9 Ah

Run Time (Up To)

26 min at half load ¦ 10 min at full load

Features

Maintenance free, sealed

Networking

Remote Management Interface

USB, RS-232

Expansion / Connectivity

Interfaces

1 x management (USB) ¦ 1 x management (RS-232) ¦ EPO (emergency power off)

Expansion Slots

1 (total) / 1 (free) x SmartSlot

Miscellaneous

Included Accessories

Rack mounting brackets, rack mounting rails

Cables Included

USB cable ¦ Serial cable ¦ DC power cable

Rack Mounting Kit

Included

Features

LCD display, LED indicators, automatic self-test, Eco-Mode

Compliant Standards

IP20, EAC, IEC/EN 62040-1, IEC/EN 62040-2

Software / System Requirements

Software Included

APC Easy Ups Online SNMP Shutdown Wizard

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

55 dB

Dimensions & Weight

Width

43.8 cm

Depth

61.5 cm

Height

21.95 cm

Weight

78 kg

Dimensions & Weight (Shipping)

Shipping Width

87 cm

Shipping Depth

60 cm

Shipping Height

49 cm

Shipping Weight

88 kg
