APC Easy UPS On-Line - UPS - 6x IEC C13 + 1x IEC C

Images Manuals

Images for illustrative purposes

APC Easy UPS On-Line

Name: APC Easy UPS On-Line
Brand: APC
SKU: WCESRV3KRIRKE
Price: 1229.75 EUR
Availability: InStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRV3KRIRK-E) - (WCESRV3KRIRKE)

Model: APC Easy

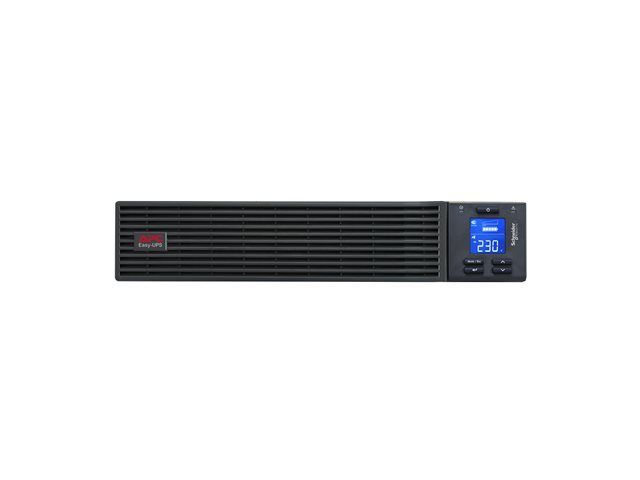

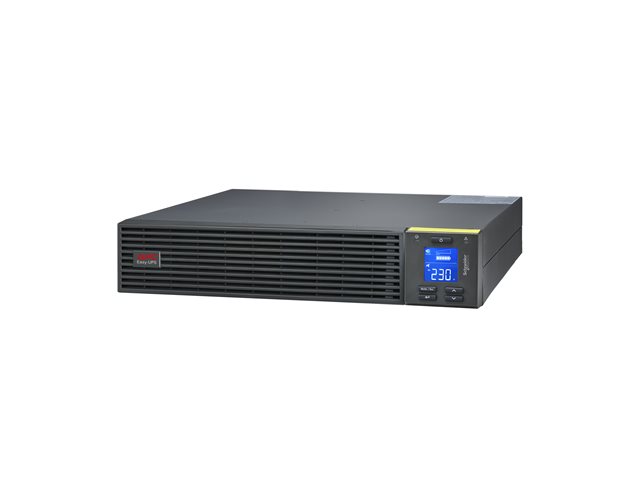

Easy UPS On-Line - UPS - 6x IEC C13 + 1x IEC C19 outlets, intelligent card slot, LCD, with rail kit - 2700 Watt - 3000 VA

LCD graphics display
Intelligent Card Slot
ECO Mode
Automatic internal bypass
Automatic restart of loads after UPS shutdown
Input power factor correction
View More
Serial connectivity
USB connectivity
Intelligent battery management

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

4 Available to Ship
Order within 5Hrs 28Mins for: FREE Delivery (8 Jun or 9 Jun)

RRP ~~€1629.75~~

€1229.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

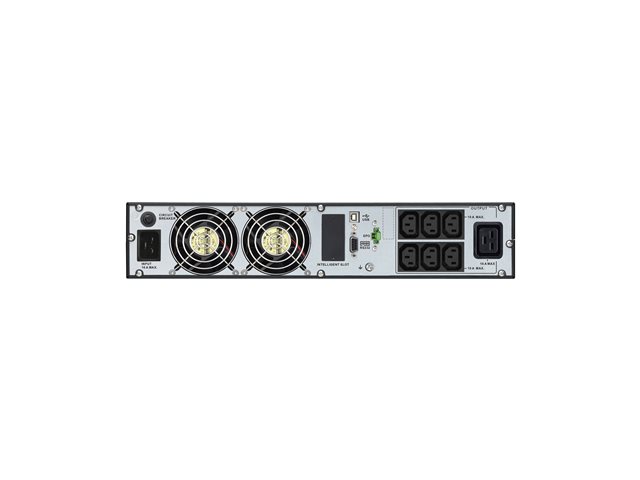

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 3kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions." "The SRV comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The SRV UPS is compatible with replacement battery cartridge APCRBCV202." "The Easy UPS and the built-in lead-acid battery has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."

Specification Summary

Product Description

APC Easy UPS On-Line - UPS - 6x IEC C13 + 1x IEC C19 outlets, intelligent card slot, LCD, with rail kit - 2700 Watt - 3000 VA

Device Type

UPS - rack-mountable

Cord Length

1.5 m

Rack Size

Weight

28.5 kg

Input Voltage

AC 230 V

Output Voltage

AC 220/230/240 V

Power Capacity

2700 Watt / 3000 VA

Input Connectors

1 x power IEC 60320 C20

Output connectors

6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Battery

Lead Acid

Networking

RS-232, USB

Included Accessories

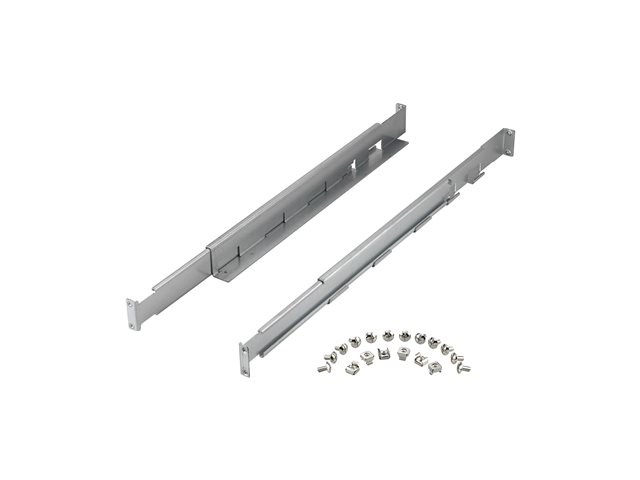

Rack mounting brackets, rack mounting rails

Colour

RAL 7010, black

Dimensions (WxDxH)

43.8 cm x 63.2 cm x 8.6 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

731304436935

General

Device Type

UPS - rack-mountable

Height (Rack Units)

Cord Length

1.5 m

Colour

RAL 7010, black

Power Device

UPS Technology

On-line

Input Voltage

AC 230 V

Input Voltage Range

AC 110 - 285 V

Frequency Provided

50/60 Hz ± 3Hz

Frequency Required

40 - 70 Hz

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Output Voltage

AC 220/230/240 V 50/60 Hz

Power Capacity

2700 Watt / 3000 VA

Output Waveform

Sinewave

Surge Energy Rating

945 Joules

Efficiency

88% at 100% Load

Total Harmonic Distortion (THD)

3 %

Battery

Technology

Lead Acid

Voltage Provided

72 V

Recharge Time

4 hours

Networking

Remote Management Interface

RS-232, USB

Expansion / Connectivity

Interfaces

1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off)

Expansion Slots

1 (total) / 1 (free) x Intelligent Slot

Miscellaneous

Included Accessories

Rack mounting brackets, rack mounting rails

Cables Included

Power cable (C19-CEE 7/4) ¦ Power cable (C13-C14) ¦ USB cable ¦ RS-232 cable

Rack Mounting Kit

Included

Features

1024 BTU/h heat dissipation, PCE package, internal bypass, double conversion, LCD display, low battery alarm, overload alarm

Compliant Standards

UKCA, TISI, EN 62040-2:2006+AC:2006, EN IEC 62040-1:2019 + A11:2021, EN/IEC 62040-2:2018, IP20, REACH, China RoHS, WEEE

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

50 dBA

Dimensions & Weight

Width

43.8 cm

Depth

63.2 cm

Height

8.6 cm

Weight

28.5 kg

Dimensions & Weight (Shipping)

Shipping Weight

32.5 kg
