APC Easy UPS On-Line - UPS - tower - 2700 Watt - 3

Images Manuals

Images for illustrative purposes

APC Easy UPS On-Line

Name: APC Easy UPS On-Line
Brand: APC
SKU: ECE11511146
Price: 1143.89 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRV3KI-E) - (ECE11511146)

Model: APC Easy

Easy UPS On-Line - UPS - tower - AC 220/230/240 V - 2700 watt - 3000 VA - 1-phase - Lead Acid - USB, serial - output connectors: 7 - PFC - Europe - black, RAL 7010

Durable battery technology
Efficient power performance
Connectivity options
Compliant with multiple standards
Versatile usage

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€1476.00~~

€1143.89 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

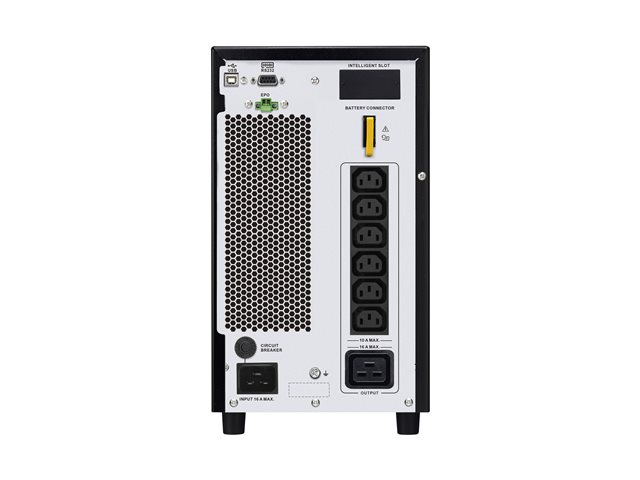

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 3kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions." "The SRV comes with IEC 320 C20 input and 6x IEC 320 C13, 1x IEC 320 C19 outlets." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The SRV UPS is compatible with replacement battery cartridge APCRBCV205." "The UPS and the built-in lead-acid battery has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."

Features Summary

Durable battery technology
Equipped with a lead acid battery, the APC Easy UPS On-Line ensures longevity and stability in power supply for various devices.
Efficient power performance
This UPS features an output of 2700 watts with an efficiency rating of 94% in Eco mode, promoting energy savings.
Connectivity options
Includes both serial and USB remote management interfaces, allowing for seamless monitoring and control of the power system.
Compliant with multiple standards
Meets various compliance standards like WEEE and REACH, ensuring a commitment to environmental safety and durability.
Versatile usage
Designed with vertical orientation and a compact form factor, making it suitable for various settings without taking up much space.

Specification Summary

Product Description

APC Easy UPS On-Line - UPS - tower - 2700 Watt - 3000 VA - Lead Acid

Device Type

UPS - Power Factor Correction (PFC) - external

Weight

26 kg

Localisation

Europe

Input Wiring

1-phase

Input Voltage

AC 220/230/240 V

Output Voltage

AC 220/230/240 V

Power Capacity

2700 Watt / 3000 VA

Input Connectors

1 x power IEC 60320 C20

Output connectors

6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Battery

Lead Acid

Run Time (Up To)

3 min at full load

Networking

USB, serial

Colour

Black, RAL 7010

Dimensions (WxDxH)

19 cm x 42.5 cm x 33.6 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0731304436874

General

Device Type

UPS - Power Factor Correction (PFC) - external

Colour

Black, RAL 7010

Localisation

Europe

Power Device

UPS Technology

On-line

Input Voltage

AC 220/230/240 V

Input Voltage Range

AC 110 - 285 V

Frequency Provided

50/60 Hz ± 3Hz

Input Wiring

1-phase

Frequency Required

40 - 70 Hz

Input Connectors

1 x power IEC 60320 C20

Power Output Connectors Details

6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19

Output Voltage

AC 220/230/240 V 50/60 Hz

Power Capacity

2700 Watt / 3000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

945 Joules

Circuit Protection

Circuit breaker

Efficiency

88% at 100% Load, 94% Eco mode

Total Harmonic Distortion (THD)

3 %

Battery

Technology

Lead Acid

Voltage Provided

72 V

Run Time (Up To)

2.54 min at 2700 Watts

Recharge Time

4 hours

Features

Maintenance free, sealed, leak-proof

Networking

Remote Management Interface

USB, serial

Expansion / Connectivity

Interfaces

USB ¦ Serial

Expansion Slots

Intelligent Slot

Miscellaneous

Cables Included

Power cable 1.5 m ¦ USB cable - external ¦ Serial cable - external ¦ Power cable (C13-C14) - external ¦ Power cable (C19) - external

Features

Vertical orientation, audible alarm, emergency power off, LCD display, internal bypass, Eco-Mode, generator compatible, Intelligent Battery Management, double conversion, low battery alarm, overload alarm

Compliant Standards

WEEE, REACH, IP20, China RoHS, TISI, EN 62040-2:2006+AC:2006, EU RoHS, UKCA, EN/IEC 62040-2:2018, heavy metals-free, EN IEC 62040-1:2019 + A11:2021

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% RH (non-condensing)

Sound Emission

50 dBA

Dimensions & Weight

Width

19 cm

Depth

42.5 cm

Height

33.6 cm

Weight

26 kg

Dimensions & Weight (Shipping)

Shipping Width

32.5 cm

Shipping Depth

56.5 cm

Shipping Height

46.5 cm

Shipping Weight

28 kg
