APC Easy UPS On-Line - UPS - tower - 900 Watt - 10

Images Manuals

Images for illustrative purposes

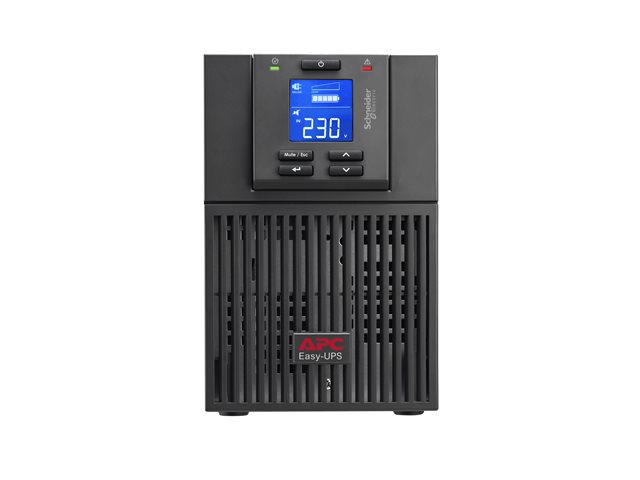

APC Easy UPS On-Line

Name: APC Easy UPS On-Line
Brand: APC
SKU: ECE11504629
Price: 543.34 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRV1KI-E) - (ECE11504629)

Model: APC Easy

Easy UPS On-Line - UPS - tower - AC 220/230/240 V - 900 watt - 1000 VA - 1-phase - Lead Acid - USB, serial - output connectors: 3 - PFC - Europe - black, RAL 7010

LCD graphics display
Intelligent Card Slot
ECO Mode
Automatic internal bypass
Automatic restart of loads after UPS shutdown
Input power factor correction
View More
Serial connectivity
USB connectivity
Intelligent battery management

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€687.57~~

€543.34 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

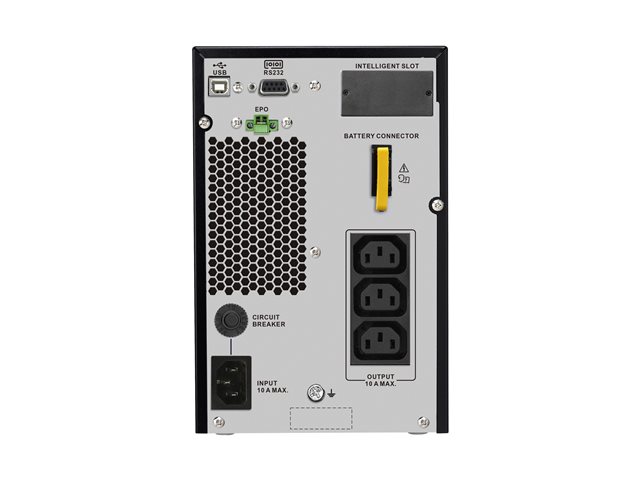

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 1000VA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions." "The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The SRV UPS is compatible with replacement battery cartridge APCRBCV203." "The Easy UPS and the built-in lead-acid battery has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."

Features Summary

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Intelligent Card Slot
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.
Serial connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Specification Summary

Product Description

APC Easy UPS On-Line - UPS - tower - 900 Watt - 1000 VA - Lead Acid

Device Type

UPS - Power Factor Correction (PFC) - external

Weight

9.6 kg

Localisation

Europe

Input Wiring

1-phase

Input Voltage

AC 220/230/240 V

Output Voltage

AC 220/230/240 V

Power Capacity

900 Watt / 1000 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

3 x power IEC 60320 C13

Battery

Lead Acid

Run Time (Up To)

3 min at full load

Networking

USB, serial

Colour

Black, RAL 7010

Dimensions (WxDxH)

14.5 cm x 28.8 cm x 22.3 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

0731304436850

General

Device Type

UPS - Power Factor Correction (PFC) - external

Colour

Black, RAL 7010

Localisation

Europe

Power Device

UPS Technology

On-line

Input Voltage

AC 220/230/240 V

Input Voltage Range

AC 110 - 285 V

Frequency Provided

50/60 Hz ± 3Hz

Input Wiring

1-phase

Frequency Required

40 - 70 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

3 x power IEC 60320 C13

Output Voltage

AC 220/230/240 V 50/60 Hz

Power Capacity

900 Watt / 1000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

945 Joules

Circuit Protection

Circuit breaker

Efficiency

88% at 100% Load, 94% Eco mode

Total Harmonic Distortion (THD)

3 %

Battery

Technology

Lead Acid

Voltage Provided

24 V

Run Time (Up To)

3.12 min at 900 Watts

Recharge Time

4 hours

Features

Maintenance free, sealed, leak-proof

Networking

Remote Management Interface

USB, serial

Expansion / Connectivity

Interfaces

USB ¦ Serial

Expansion Slots

Intelligent Slot

Miscellaneous

Cables Included

Power cable 1.5 m ¦ USB cable - external ¦ Serial cable - external ¦ Power cable (C13-C14) - external ¦ Power cable (C13) - external

Features

Vertical orientation, audible alarm, emergency power off, LCD display, internal bypass, Eco-Mode, generator compatible, Intelligent Battery Management, double conversion, low battery alarm, overload alarm

Compliant Standards

WEEE, REACH, IP20, China RoHS, TISI, EN 62040-2:2006+AC:2006, EU RoHS, UKCA, EN/IEC 62040-2:2018, heavy metals-free, EN IEC 62040-1:2019 + A11:2021

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% RH (non-condensing)

Sound Emission

50 dBA

Dimensions & Weight

Width

14.5 cm

Depth

28.8 cm

Height

22.3 cm

Weight

9.6 kg

Dimensions & Weight (Shipping)

Shipping Width

23.5 cm

Shipping Depth

36.5 cm

Shipping Height

33 cm

Shipping Weight

10.9 kg
