APC Easy UPS SRV SRV10KIL - UPS - 10000 watt - 100

Images Manuals

Images for illustrative purposes

APC Easy UPS SRV SRV10KIL

Name: APC Easy UPS SRV SRV10KIL
Brand: APC
SKU: ECE6984764
Price: 4809.76 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRV10KIL) - (ECE6984764)

Model: APC Easy

Please contact sales for freight costs

LCD graphics display
Intelligent Card Slot
ECO Mode
Serial connectivity
Automatic internal bypass
Automatic restart of loads after UPS shutdown
View More
Input power factor correction
Serial connectivity
USB connectivity
Intelligent battery management

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 23-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€6426.75~~

€4809.76 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

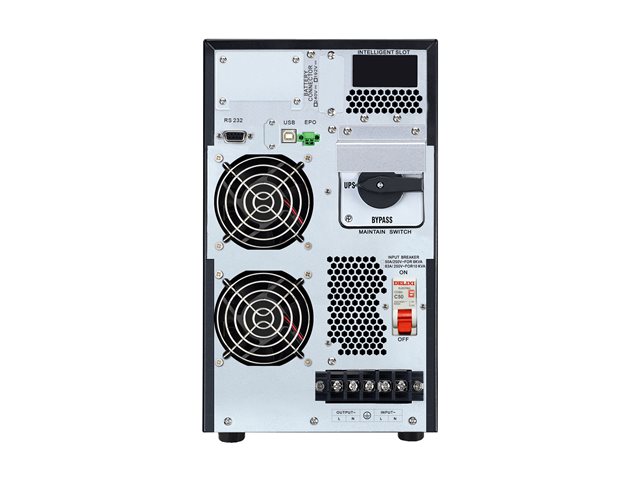

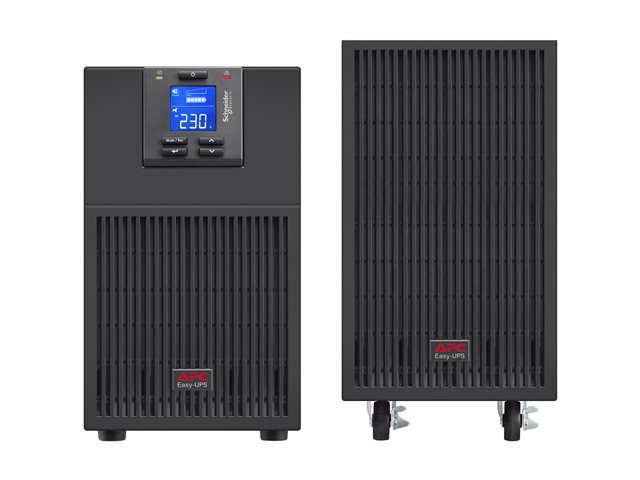

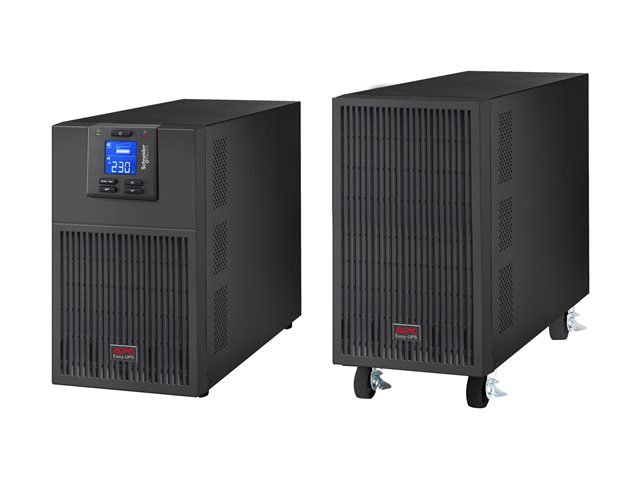

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Specification Summary

Product Description

APC Easy UPS SRV SRV10KIL - UPS - 10000 watt - 10000 VA

Device Type

UPS - external

Weight

16.5 kg

Input Wiring

1-phase

Input Voltage

AC 220-240 V

Output Voltage

AC 220/230/240 V ± 1%

Power Capacity

10000 watt / 10000 VA

Input Connectors

1 x terminal block

Output connectors

1 x terminal block

Battery

Lead Acid

Batteries Qty

Networking

USB, RS-232

Included Accessories

External battery pack

Dimensions (WxDxH)

19 cm x 44.7 cm x 33.6 cm

Specifications

EAN / GTIN:

8592978368470

General

Device Type

UPS - external

Power Device

UPS Technology

On-line

Input Voltage

AC 220-240 V

Input Voltage Range

AC 110 - 300 V

Frequency Provided

50/60 Hz ± 4Hz

Input Wiring

1-phase

Frequency Required

50/60 Hz

Input Connectors

1 x terminal block

Power Output Connectors Details

1 x terminal block

Output Voltage

AC 220/230/240 V ± 1% - 50/60 Hz

Power Capacity

10000 watt / 10000 VA

Output Waveform

Sinewave

Surge Energy Rating

600 joules

Circuit Protection

Circuit breaker

Efficiency

94% AC mode

Power Factor (PF)

0.99

Battery

Quantity

Technology

Lead Acid

Features

Sealed, maintenance free

Networking

Remote Management Interface

USB, RS-232

Expansion / Connectivity

Interfaces

1 x management (USB) ¦ 1 x management (RS-232)

Miscellaneous

Included Accessories

External battery pack

Features

LCD display, Eco-Mode, generator compatible, over voltage protection, internal bypass, firmware upgradable

Software / System Requirements

Software Included

APC Easy Ups Online SNMP Shutdown Wizard

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

58 dB

Dimensions & Weight

Width

19 cm

Depth

44.7 cm

Height

33.6 cm

Weight

16.5 kg
