APC Easy UPS SRV SRV10KI - UPS - 10 kW - 10000 VA

Images Manuals

Images for illustrative purposes

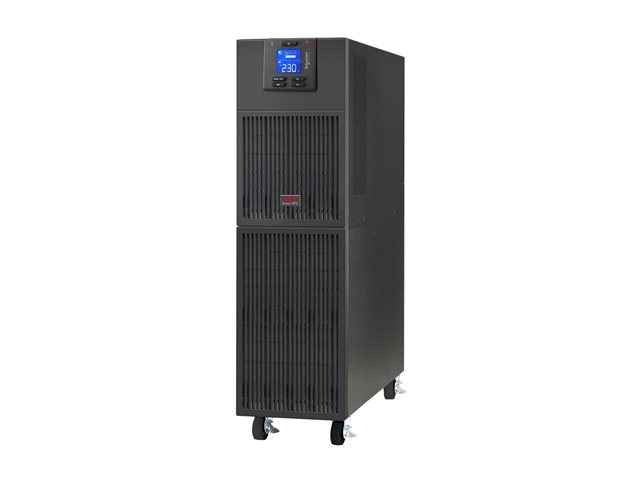

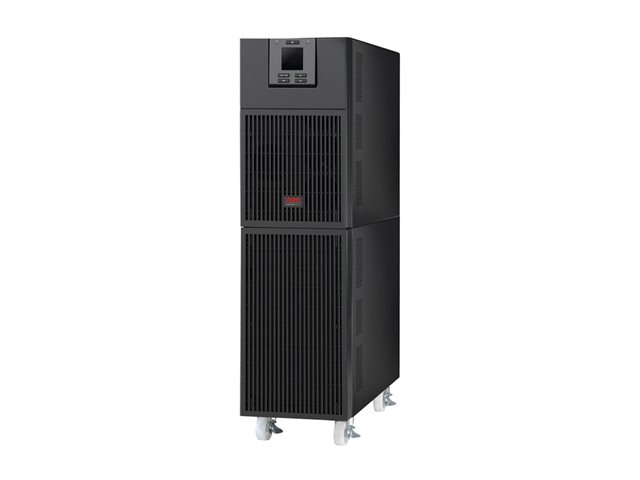

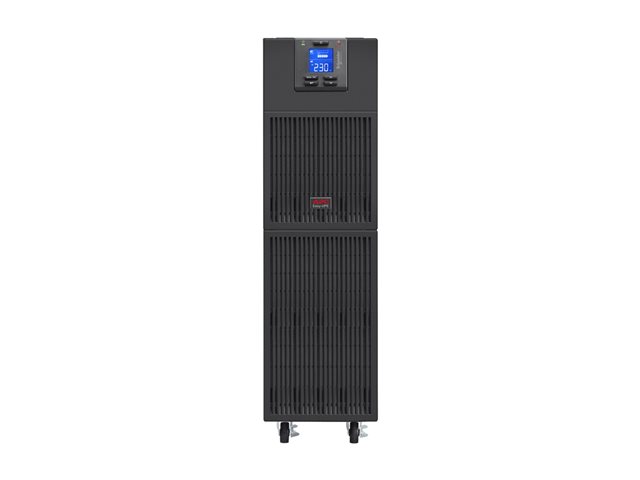

APC Easy UPS SRV SRV10KI

Name: APC Easy UPS SRV SRV10KI
Brand: APC
SKU: ECE4977103
Price: 3829.75 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRV10KI) - (ECE4977103)

Model: APC Easy

Easy UPS SRV SRV10KI - UPS - AC 230 V - 10 kW - 10000 VA - USB

LCD graphics display
Intelligent Card Slot
ECO Mode
Serial connectivity
Automatic internal bypass
Automatic restart of loads after UPS shutdown
View More
Input power factor correction
Serial connectivity
USB connectivity
Intelligent battery management

HOT

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 23-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€5104.50~~

€3829.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9901l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Specification Summary

Product Description

APC Easy UPS SRV SRV10KI - UPS - 10 kW - 10000 VA

Device Type

UPS - external

Weight

65 kg

Input Voltage

AC 230 V

Output Voltage

AC 230 V ± 3%

Power Capacity

10 kW / 10000 VA

Battery

Lead Acid

Networking

USB

Dimensions (WxDxH)

19 cm x 44.7 cm x 68.5 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

731304337935

General

Device Type

UPS - external

Power Device

UPS Technology

On-line

Input Voltage

AC 230 V

Frequency Provided

50/60 Hz

Frequency Required

40 - 70 Hz

Output Voltage

AC 230 V ± 3% - 50/60 Hz

Power Capacity

10 kW / 10000 VA

Output Waveform

Sinewave

Surge Energy Rating

600 joules

Battery

Technology

Lead Acid

Recharge Time

3 hours

Features

Sealed, maintenance free, leak-proof

Networking

Remote Management Interface

USB

Miscellaneous

Cables Included

USB cable - external

Features

Casters, audible alarm, LCD display, cold-start function

Compliant Standards

IEC 62040-1-1, IEC 62040-1-2

Software / System Requirements

Software Included

APC Easy Ups Online SNMP Shutdown Wizard

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Dimensions & Weight

Width

19 cm

Depth

44.7 cm

Height

68.5 cm

Weight

65 kg

Dimensions & Weight (Shipping)

Shipping Width

32 cm

Shipping Depth

58 cm

Shipping Height

91 cm

Shipping Weight

77 kg
