APC Smart-UPS Ultra SRTL2K2RM1UC - UPS - 2200 Watt

Images Manuals

Images for illustrative purposes

APC Smart-UPS Ultra SRTL2K2RM1UC

Name: APC Smart-UPS Ultra SRTL2K2RM1UC
Brand: APC
SKU: MMECI68439
Price: 3736.53 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRTL2K2RM1UIC) - (MMECI68439)

Model: APC Smart-UPS

Smart-UPS Ultra SRTL2K2RM1UC - UPS - 2200 Watt - 2200 VA - Li-Ion

Software package
Communication port support

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 12-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€3736.53 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

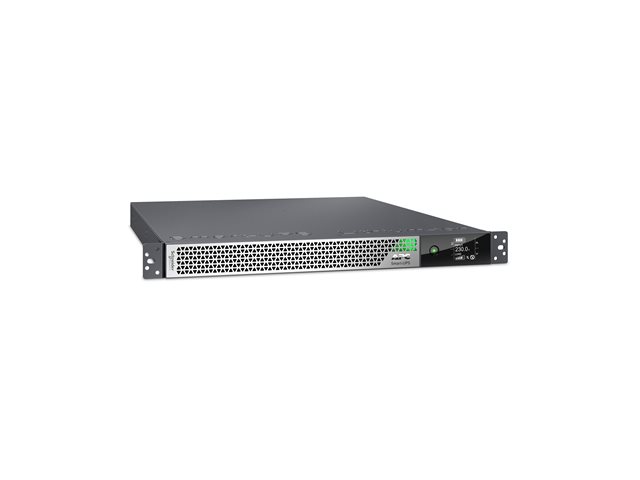

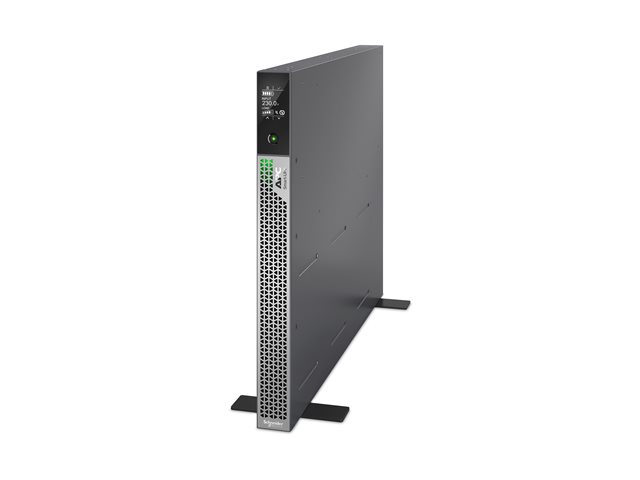

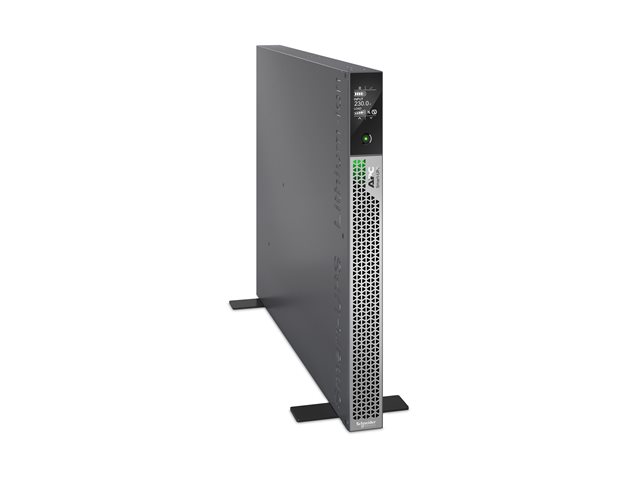

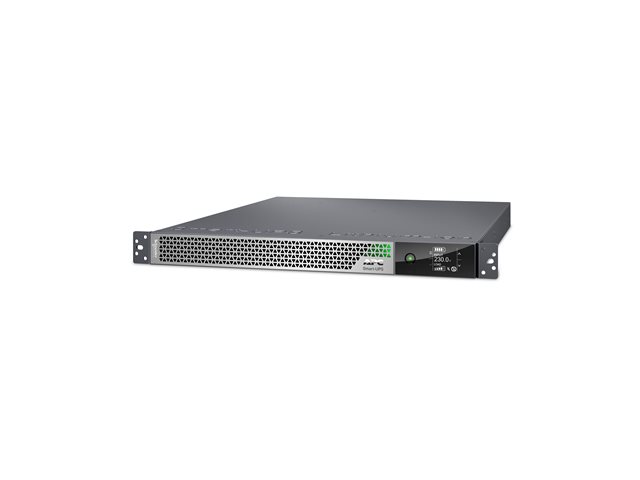

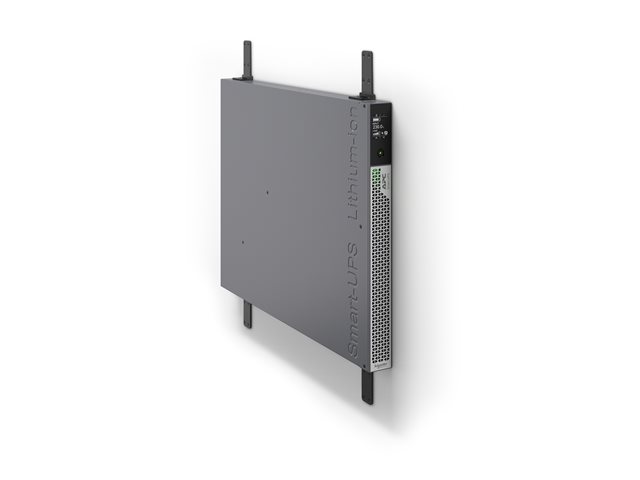

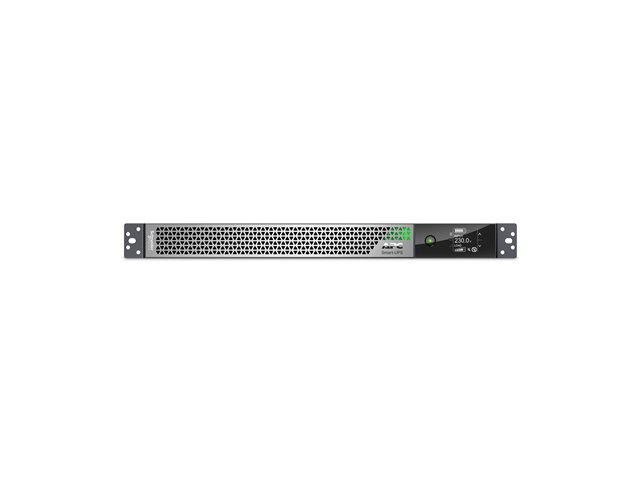

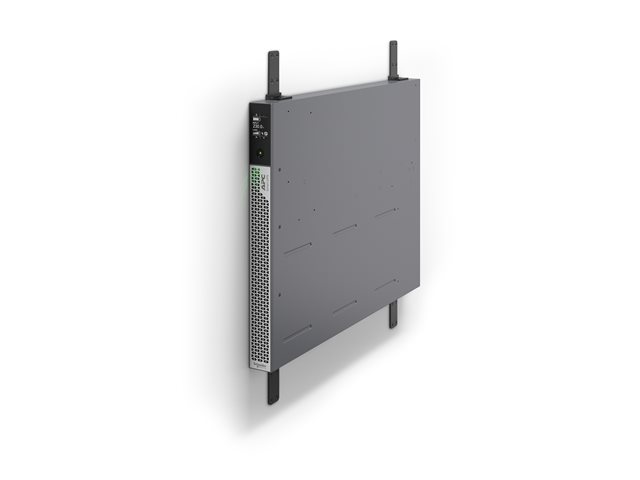

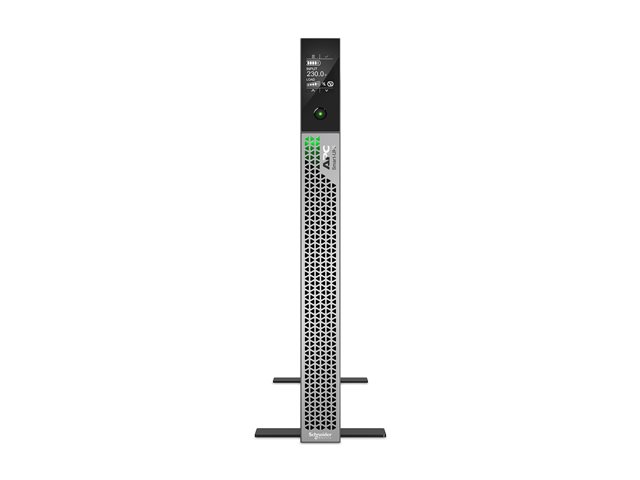

With Smart-UPS Ultra you can put up to 2200W of power protection in places never before possible. At half the size and weight of comparable UPS the mounting brackets can be used in any of the 5 mounting styles: rack (2 and 4 post), tower, wall, ceiling and desk under mount. The auto-rotating touch screen display makes switching between horizontal and vertical mounting options instantaneous. Lithium-ion batteries provide reduced maintenance cost with 3x the battery life. EcoStruxure Ready Smart-UPS provide visibility anywhere, anytime.

Features Summary

Software package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Communication port support
SmartConnect Ethernet port for cloud monitoring feature availability varies by terms of use

Specification Summary

Product Description

APC Smart-UPS Ultra SRTL2K2RM1UC - UPS - 2200 Watt - 2200 VA - Li-Ion

Device Type

UPS - rack-mountable

Rack Size

Weight

15.9 kg

Input Voltage

AC 230 V

Output Voltage

AC 230 V

Power Capacity

2200 Watt / 2200 VA

Input Connectors

Power IEC 60320 C20, power CEE 7/7, power BS 1363A

Output connectors

3 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19

Battery

Lithium ion expandable high density - Lithium Ion

Run Time (Up To)

6 min at full load

Networking

Ethernet, USB

Remote Management Protocol

Modbus, TCP/IP

Colour

Silver grey

Dimensions (WxDxH)

43.2 cm x 56 cm x 4.3 cm

Manufacturer Warranty

5-year warranty

Designed For

P/N: SRTL50RMBP1U-LI

Specifications

EAN / GTIN:

0731304573616

General

Device Type

UPS - rack-mountable

Height (Rack Units)

Colour

Silver grey

Power Device

UPS Technology

On-line

Input Voltage

AC 230 V

Input Voltage Range

AC 160 - 275 V

Frequency Provided

50/60 Hz ± 3Hz

Frequency Required

50/60 Hz ± 3Hz

Input Connectors

Power IEC 60320 C20, power CEE 7/7, power BS 1363A

Power Output Connectors Details

3 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19

Output Voltage

AC 230 V 50/60 Hz

Power Capacity

2200 Watt / 2200 VA

Output Waveform

Sinewave

Efficiency

97% Green mode

Battery

Type

Expandable high density

Technology

Lithium Ion lithium ion

Voltage Provided

50 V

Recharge Time

1.5 hours

Networking

Remote Management Interface

Ethernet, USB

Remote Management Protocol

Modbus, TCP/IP

Expansion / Connectivity

Interfaces

1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off)

Miscellaneous

Rack Mounting Kit

Included

Features

Vertical mount, horizontal mount, audible alarm, internal bypass, touch screen LCD display, visible alarm

Compliant Standards

RoHS, REACH, IP20, IEC 62040-1-2, China RoHS, UL 1778 5th edition, Mercury-free, ICES-003 issue 7, IEC 62040-2 2nd Ed., CAN/CSA C22.2 No. 107.3, FCC-15 (Class A)

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

55 dB

Dimensions & Weight

Width

43.2 cm

Depth

56 cm

Height

4.3 cm

Weight

15.9 kg

Dimensions & Weight (Shipping)

Shipping Width

56.4 cm

Shipping Depth

76.4 cm

Shipping Height

27.8 cm

Shipping Weight

24.18 kg

Compatibility Information

Designed For

P/N: SRTL50RMBP1U-LI
