APC Smart-UPS On-Line 1000VA - UPS - 900 Watt - 10

Images Manuals

Images for illustrative purposes

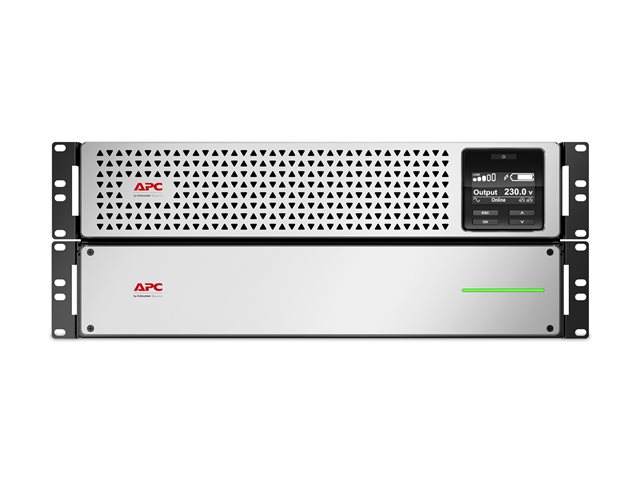

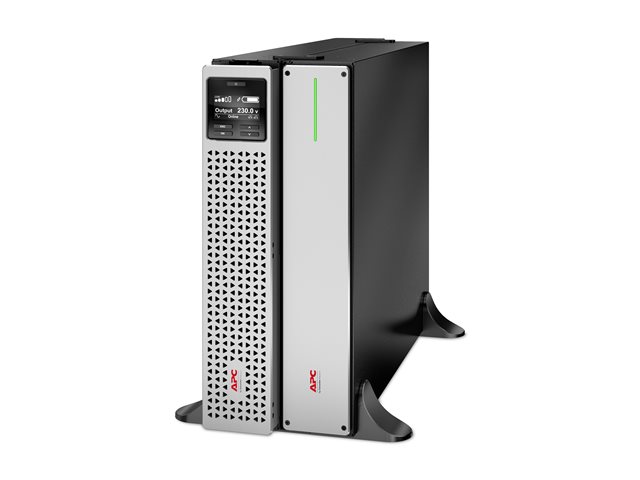

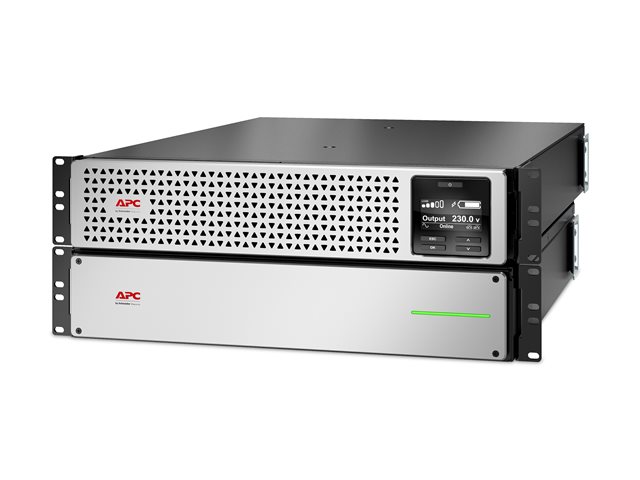

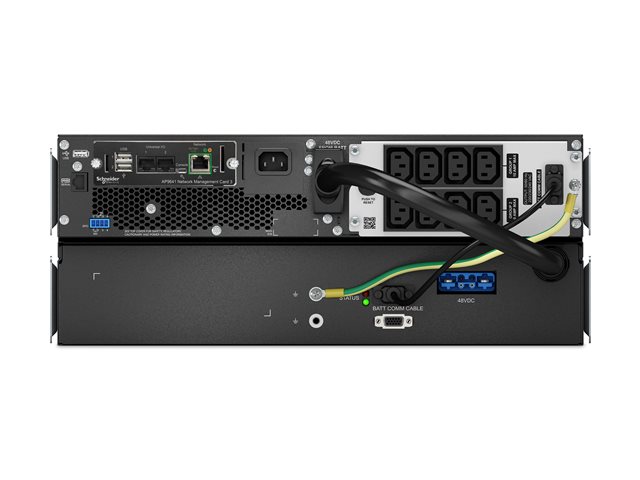

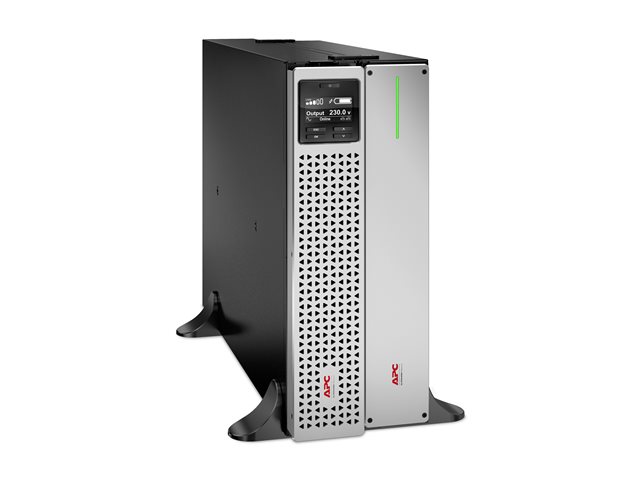

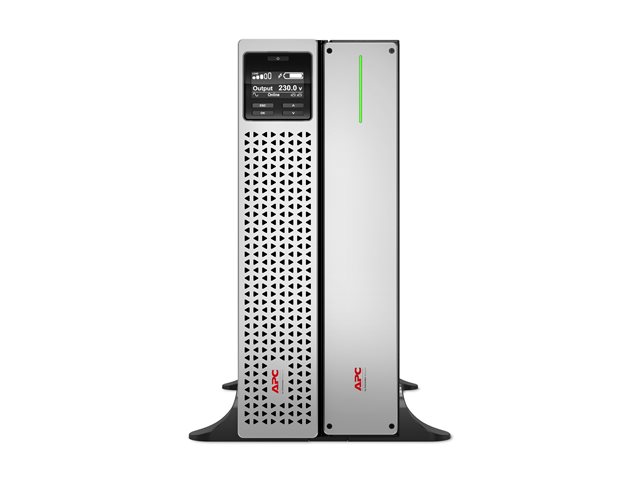

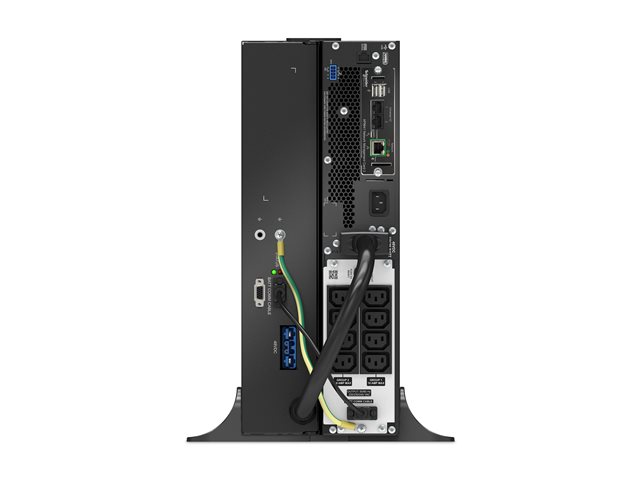

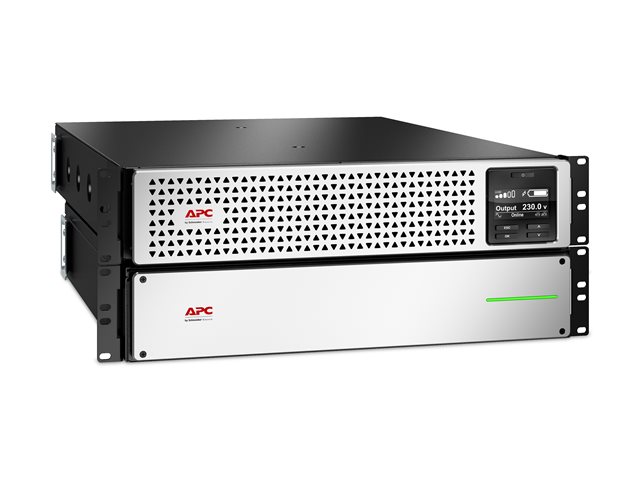

APC Smart-UPS On-Line 1000VA

Name: APC Smart-UPS On-Line 1000VA
Brand: APC
SKU: ECE7798310
Price: 4065.37 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SRTL1000RM4UXLI-NC) - (ECE7798310)

Model: APC Smart-UPS

Please contact sales for freight costs

LCD graphics display
Lithium-ion battery
Rack/Tower convertible

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 23-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€5412.00~~

€4065.37 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

At 900W/1000VA this Smart-UPS On-Line Lithium-Ion battery backup system provides high-density, double conversion on-line pure sine wave power, preinstalled Netwrok Management Card. In addition to cleaner, quieter power protection, this UPS is only around half size and weight of comparable UPS systems with similar runtime and has flexible rack and tower installation options. A new extended runtime battery pack provides longer runtime in a small 2U footprint while tripling the life expectancy of the UPS. SRTL 1-3kVA UPSs with this rong runtime battery pack is perfect for applications critical for runtime.

Features Summary

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Lithium-ion battery
Lithium-ion batteries provide twice the service life of a typical lead acid battery and are small, light and environmentally friendly.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Specification Summary

Product Description

APC Smart-UPS On-Line 1000VA - UPS - 900 Watt - 1000 VA - Li-Ion

Device Type

UPS - rack-mountable

Cord Length

1.83 m

Rack Size

Weight

40.7 kg

Input Voltage

AC 220/230 V

Output Voltage

AC 220/230 V ± 2%

Power Capacity

900 Watt / 1000 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

8 x power IEC 60320 C13

Battery

Lithium ion high density - Lithium Ion

Included Accessories

UPS Network Management Card, rail kit

Colour

Black, silver

Dimensions (WxDxH)

43.2 cm x 59 cm x 17.1 cm

Manufacturer Warranty

5-year warranty

Specifications

EAN / GTIN:

731304508946

General

Device Type

UPS - rack-mountable

Height (Rack Units)

Cord Length

1.83 m

Colour

Black, silver

Power Device

UPS Technology

On-line

Supported Battery Technology

Lithium Ion

Input Voltage

AC 220/230 V

Input Voltage Range

AC 160 - 275 V

Input Voltage Range (Adjustable)

AC 100 - 275 V

Frequency Provided

50/60 Hz ± 3Hz

Frequency Required

40 - 70 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

8 x power IEC 60320 C13

Output Voltage

AC 220/230 V ± 2% - 50/60 Hz

Power Capacity

900 Watt / 1000 VA

Output Waveform

Sinewave

Surge Suppression

Yes

Surge Energy Rating

340 Joules

Battery

Type

High density

Technology

Lithium Ion lithium ion

Voltage Provided

48 V

Miscellaneous

Included Accessories

UPS Network Management Card, rail kit

Cables Included

Power cable - external

Rack Mounting Kit

Included

Features

Horizontal mount, vertical mount, emergency power off, double conversion, internal bypass, LCD display, audible alarm

Compliant Standards

IP20

Manufacturer Warranty

Service & Support

Limited warranty - replace or repair - 5 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

50 dBA

Dimensions & Weight

Width

43.2 cm

Depth

59 cm

Height

17.1 cm

Weight

40.7 kg
