Input Connectors
Hardwire 3-wire (1PH + N + G)

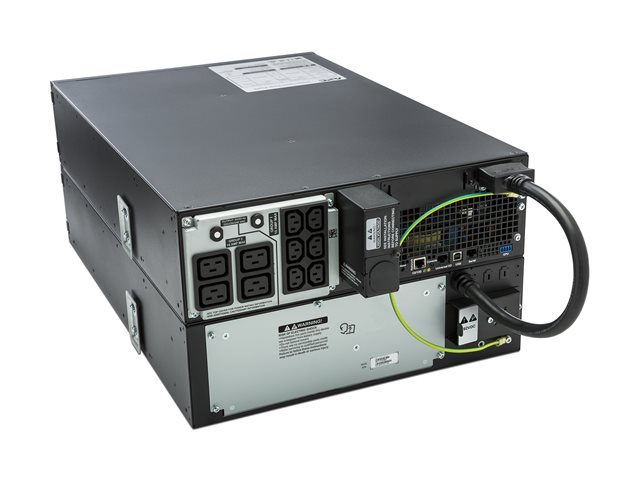

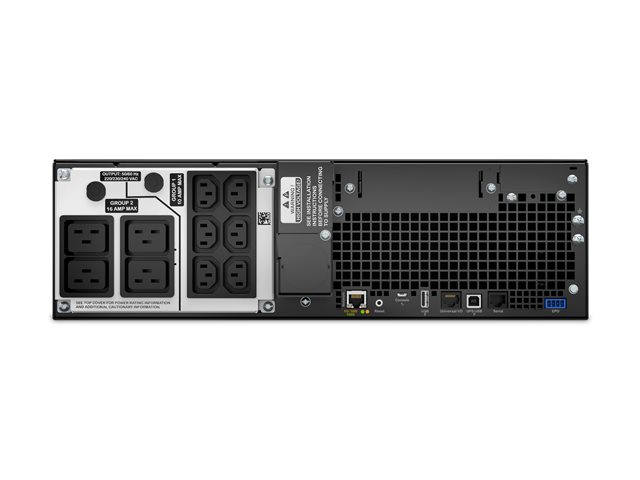

Power Output Connectors Details
6 x power IEC 60320 C13 ¦ 4 x power IEC 60320 C19 ¦ 2 x IEC connector
Run Time (Up To)
4 min at full load ¦ 11.8 min at half load
Features
Maintenance free, sealed, leak-proof
Remote Management Interface
USB
Interfaces
1 x serial - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Features

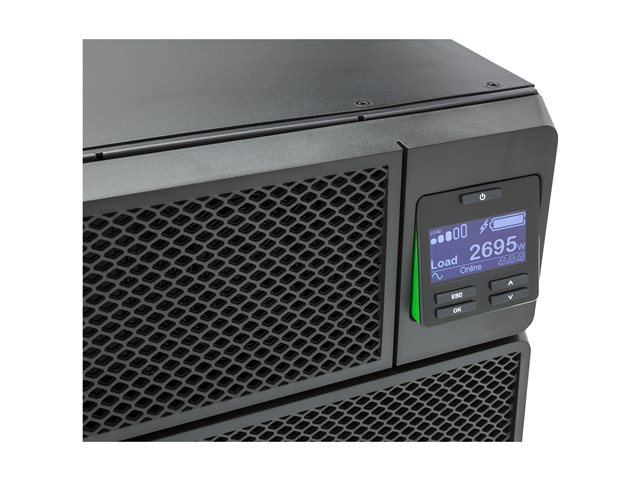

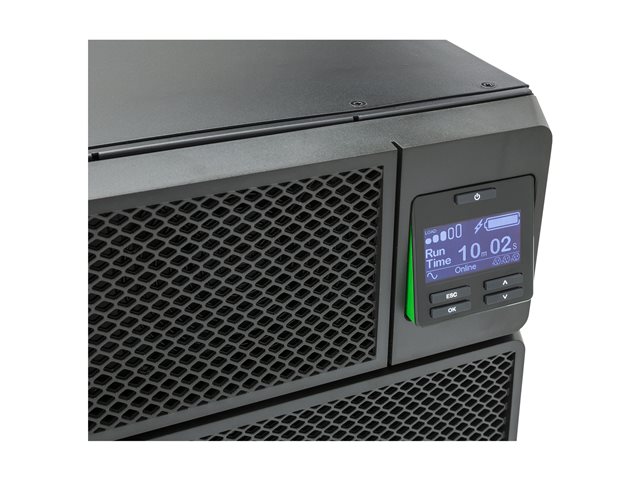

Audible alarm, LCD display
Compliant Standards
C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC
Software / System Requirements
Software Included
APC PowerChute Business Edition
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Dimensions & Weight (Shipping)
Compatibility Information
Designed For
P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2407, AR2480, AR2487, AR2487G, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR8135BLK, NBWL0356A
