APC Easy UPS SMV SMV750CAI - UPS - 525 Watt - 750

Images Manuals

Images for illustrative purposes

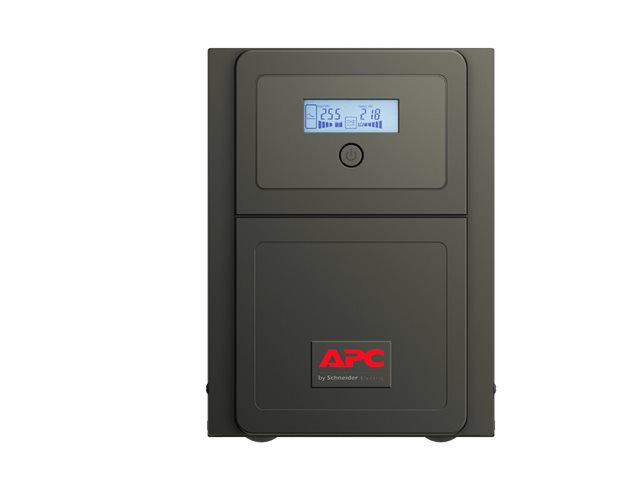

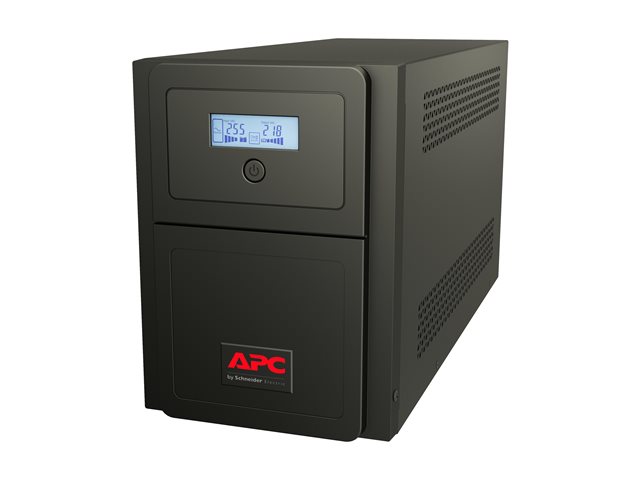

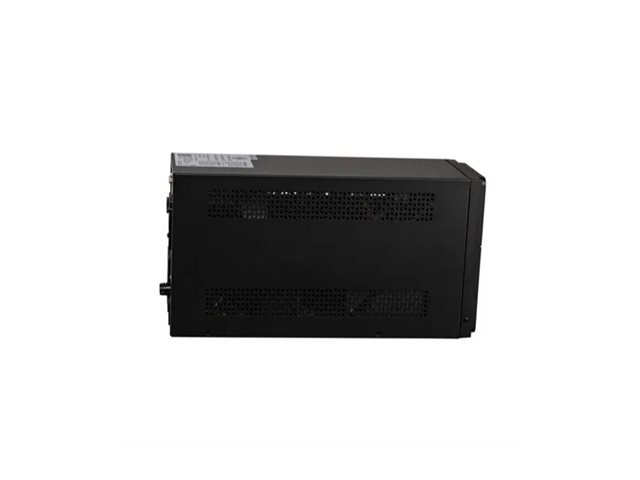

APC Easy UPS SMV SMV750CAI

Name: APC Easy UPS SMV SMV750CAI
Brand: APC
SKU: ECE5352077
Price: 322.75 EUR
Availability: OutOfStock

View all APC Uninteruptable Power Supply - Visit the APC Store (SMV750CAI) - (ECE5352077)

Model: APC Easy

Easy UPS SMV SMV750CAI - UPS - AC 220/230/240 V - 525 watt - 750 VA - 7 Ah - USB, RS-232 - output connectors: 6

LCD graphics display
Intelligent Card Slot
Automatic Voltage Regulation (AVR)
Pure sine wave output on battery
Cold-start capable

FREE Delivery on orders over €250

**Note: There may be an extra delivery charge on some very large UPS, we will notify you if this is the case. Please ensure you are buying the correct UPS or Battery, once a UPS or Battery is opened it cannot be returned. Please contact sales through email, chat or phone if you need to confirm.

0 Available to Ship
Restock 19-Jun-2026 Estimated, Out of Stock Prices are Estimated.

RRP ~~€381.29~~

€322.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 750VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV206.

Features Summary

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.
Intelligent Card Slot
Mini slot supports various optional management cards which provide basic or essential monitoring, management and control features for the UPS.
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Cold-start capable
Provides temporary battery power when the utility power is out.

Specification Summary

Product Description

APC Easy UPS SMV SMV750CAI - UPS - 525 Watt - 750 VA

Device Type

UPS - external

Weight

13.6 kg

Input Voltage

AC 220/230/240 V

Output Voltage

AC 230 V

Power Capacity

525 Watt / 750 VA

Input Connectors

1 x power IEC 60320 C14

Output connectors

6 x power IEC 60320 C13

Battery

Lead Acid - 7 Ah

Batteries Qty

Networking

USB, RS-232

Dimensions (WxDxH)

16 cm x 41 cm x 22 cm

Manufacturer Warranty

2-year warranty

Specifications

EAN / GTIN:

731304346562

General

Device Type

UPS - external

Power Device

UPS Technology

Line interactive

Input Voltage

AC 220/230/240 V

Input Voltage Range

AC 160 - 295 V

Frequency Provided

50/60 Hz ± 1Hz

Frequency Required

45 - 65 Hz

Input Connectors

1 x power IEC 60320 C14

Power Output Connectors Details

6 x power IEC 60320 C13

Output Voltage

AC 230 V 50/60 Hz

Power Capacity

525 Watt / 750 VA

Output Waveform

Sinewave

Circuit Protection

Fuse

Battery

Quantity

Technology

Lead Acid

Voltage Provided

12 V

Capacity

7 Ah

Recharge Time

4 hours

Transfer Time

2 ms

Features

Maintenance free, leak-proof, sealed

Networking

Remote Management Interface

USB, RS-232

Expansion / Connectivity

Interfaces

1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9)

Miscellaneous

Cables Included

2 x power cable - external ¦ USB cable - external

Features

LCD display

Compliant Standards

IP20

Software / System Requirements

Software Included

APC Easy Ups Online SNMP Shutdown Wizard

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95% (non-condensing)

Sound Emission

45 dBA

Dimensions & Weight

Width

16 cm

Depth

41 cm

Height

22 cm

Weight

13.6 kg

Dimensions & Weight (Shipping)

Shipping Width

27.2 cm

Shipping Depth

50.8 cm

Shipping Height

33.9 cm

Shipping Weight

16.6 kg
