TP-Link Omada SG5452XMPP V1 - switch - 48 ports -

Images Manuals

Images for illustrative purposes

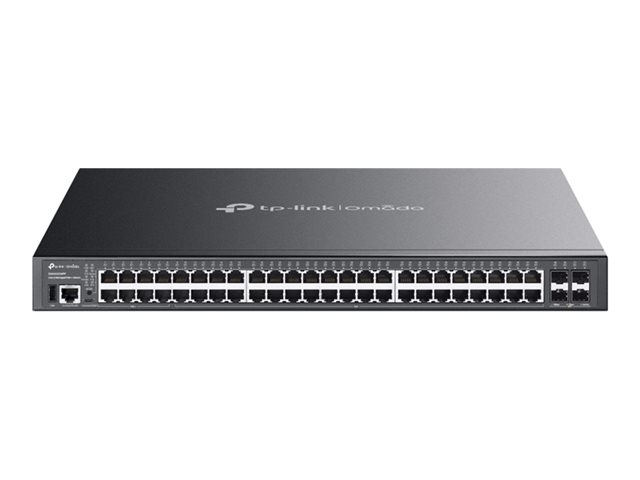

TP-Link Omada SG5452XMPP V1

Name: TP-Link Omada SG5452XMPP V1
Brand: TP-LINK
SKU: ECE11508424
Price: 1254.27 EUR
Availability: InStock

View all TP-LINK Network Switches - Visit the TP-LINK Store (SG5452XMPP) - (ECE11508424)

Model: TP-Link Omada

Omada SG5452XMPP V1 - Switch - L3 Lite - Managed - 48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+ - rack-mountable - PoE++ (770 W) - for TP-Link MC200CM, MC210CS, TL-MC210CS, TL-SM331T

Robust performance
Extensive management capabilities
High port density
Environmentally resilient
Advanced security features

FREE Delivery on orders over €250

3 Available to Ship
Order within 10Hrs 17Mins for: FREE Delivery (8 Jun or 9 Jun)

€1254.27 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

The TP-Link Omada SG5452XMPP V1 is a versatile switch designed to meet the demanding needs of modern networks. With 48 10/100/1000 ports and 4 10Gb Ethernet SFP+ uplinks, it delivers performance and flexibility for high-speed connectivity. The unit supports features such as Layer 3 Lite switching, quality of service, and VLANs, which enhance traffic management, security, and network efficiency. Its stackable design allows for scalability, accommodating up to 4 units in a stack, making it suitable for growing network infrastructures. Equipped with a power budget of 770 W for PoE++, this switch efficiently powers connected devices while maintaining reliable operation in various environmental conditions.

Features Summary

Robust performance
The switch has a total switching capacity of 40 Gbps, ensuring fast and efficient data transfer across the network, while the stacking bandwidth of 176 Gbps ensures seamless communication between stacked units.
Extensive management capabilities
With support for multiple remote management protocols like SNMP, HTTP, and Telnet, this switch allows for efficient network management and monitoring from various platforms.
High port density
Featuring 48 ports, this switch caters to high connection demands in busy network environments, supporting a wide range of devices with stable and secure connections.
Environmentally resilient
Designed to operate in temperatures ranging from -5°C to 45°C, the TP-Link Omada SG5452XMPP V1 ensures reliability even in challenging environments, complemented by a wide humidity range for various operating conditions.
Advanced security features
Equipped with robust security protocols including SSH and RADIUS, this switch provides essential authentication methods to safeguard data and manage access securely.

Specification Summary

Product Description

TP-Link Omada SG5452XMPP V1 - switch - 48 ports - Managed - rack-mountable

Device Type

Switch - 48 ports - L3 Lite - Managed - stackable

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+

Power Over Ethernet (PoE)

PoE++

PoE Budget

770 W

Performance

Switching capacity: 176 Gbps ¦ Packet forwarding rate: 130.94 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Forwarding bandwidth: 88 Gbps

Capacity

Buffer capacity (MB): 12 ¦ Priority queues: 8 ¦ IPv4 interfaces: 128 ¦ IPv6 interfaces: 128 ¦ Maximum host route table: 1024 ¦ IPv4 routes (static): 512 ¦ IPv6 routes (static): 128 ¦ RIP routes: 1796 ¦ OSPFv2 routes: 1796 ¦ OSPFv3 routes: 450 ¦ Static ARP entries: 512 ¦ Dynamic ARP: 3600 ¦ DHCP pool: 64 ¦ Binding entries: 1000 ¦ Maximum L2 multicast table: 2000 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 60 ¦ VLAN VPN (QinQ) entries: 256 ¦ IP MAC port binding entries: 1024 ¦ IPv6 MAC port binding entries: 1024 ¦ MAC addresses per port: 64

MAC Address Table Size

16K entries

Jumbo Frame Support

9KB

Routing Protocol

Static IP routing, RIP-1, RIP-2, OSPFv2, OSPFv3, L2PT, MLD, IGMP, MLDv2, MSTP, PPPoE, RIPng, RSTP, STP

Remote Management Protocol

DHCP, HTTP, HTTPS, CLI, SNMP 1, SNMP 2c, SNMP 3, BOOTP, RMON 1, MIB, Telnet, TFTP

Features

DHCP relay, DHCP server, ACL support, DoS attack prevention, Port Security, ERPS, SDN, DAI, MAB, ZTP, metal housing, 3 fans, bandwidth control, port priority, QoS, rate limit, Storm Control, Voice VLAN, flow control, IGMP snooping, IP multicast, Link Aggregation, loopback detection, MLD snooping, port mirroring, RSPAN, STP support, fast leave, MVR, Multicast filtering function, DLDP support, DDM, sFlow, GVRP, port isolation, DHCP snooping, DHCPv6 snooping, AAA, Broadcast Storm Control, Guest VLAN, Multicast Storm Control, Unknown Storm Control, LLDP-MED, EEE, store and forward, 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), security slot (Kensington security lock compatible)

Compliant Standards

IEEE 802.1x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Power

AC 100-240 V (50/60 Hz)

Dimensions (WxDxH)

44 cm x 33 cm x 4.4 cm

System Requirements

Apple MacOS, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Novell NetWare, UNIX

Designed For

TP-Link MC200CM, MC210CS, TL-MC210CS, TL-SM331T

Specifications

EAN / GTIN:

1210002611169

General

Device Type

Switch - 48 ports - L3 Lite - Managed - stackable

Enclosure Type

Rack-mountable

Subtype

Gigabit Ethernet

Ports

48 x 10/100/1000 + 4 x 10Gb Ethernet SFP+

Power Over Ethernet (PoE)

PoE++

PoE Budget

770 W

Performance

Switching capacity: 176 Gbps ¦ Packet forwarding rate: 130.94 Mpps ¦ Stacking bandwidth: 40 Gbps ¦ Forwarding bandwidth: 88 Gbps

Capacity

MAC Address Table Size

16K entries

Jumbo Frame Support

9KB

Max Units In A Stack

Routing Protocol

Static IP routing, RIP-1, RIP-2, OSPFv2, OSPFv3, L2PT, MLD, IGMP, MLDv2, MSTP, PPPoE, RIPng, RSTP, STP

Remote Management Protocol

DHCP, HTTP, HTTPS, CLI, SNMP 1, SNMP 2c, SNMP 3, BOOTP, RMON 1, MIB, Telnet, TFTP

Encryption Algorithm

SSL 3.0, TLS 1.0

Authentication Method

Secure Shell (SSH), RADIUS, RADSEC, PAP, EAP-MD5, EAP-PEAP, EAP-TLS, EAP-TTLS

Features

Compliant Standards

IEEE 802.1x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Processor

X ARM: 1.2 GHz

RAM

2 GB DDR4 SDRAM

Status Indicators

Port status, power, speed, stack, system, PoE, PoE activity

Expansion / Connectivity

Interfaces

40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 8 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W ¦ 4 x 1000Base-X/10GBase-X SFP+ ¦ 1 x console RJ-45 console ¦ 1 x USB-C console ¦ USB 2.0

Power

Power Device

Internal power supply

Voltage Required

AC 100-240 V (50/60 Hz)

Miscellaneous

Included Accessories

Rubber feet, 8 screws, mounting brackets

Cables Included

1 x console cable

Rack Mounting Kit

Included
