EAN / GTIN:
8885020620863

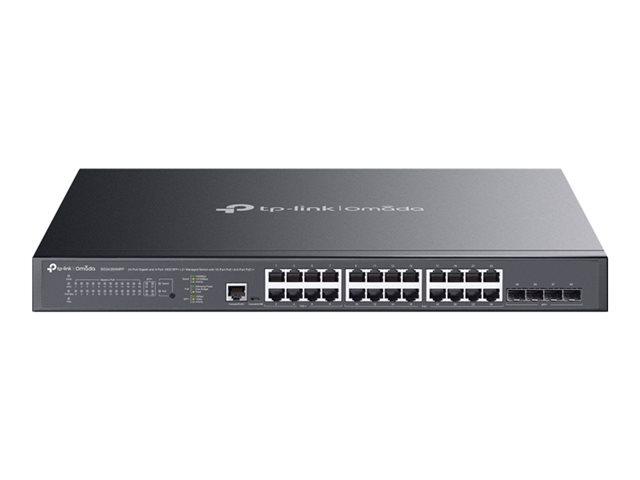

Device Type
Switch - 24 ports - L2+ - Managed
Enclosure Type
Rack-mountable
Ports
16 x 10/100/1000 (PoE+) + 8 x 10/100/1000 (PoE++) + 4 x 10Gb Ethernet SFP+
Power Over Ethernet (PoE)
PoE++
Performance
Switching capacity: 128 Gbps ¦ Packet forwarding rate: 95.23 Mpps ¦ Packet buffer size: 12 Mbit
Capacity
Priority queues: 8 ¦ IPv6 interfaces: 128 ¦ IPv4 interfaces: 128 ¦ IPv4 routes (static): 48 ¦ IPv6 routes (static): 48 ¦ Static ARP entries: 128 ¦ ARP entries: 512 ¦ IGMP groups: 1000 ¦ Layer 2 multicast filtering profiles: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 30 ¦ VLAN templates: 16 ¦ IP MAC port binding entries: 512 ¦ Port security entries: 64
MAC Address Table Size
16K entries
Routing Protocol
Static IP routing, STP, L2PT, PPPoE, MLD, MLDv2, IGMP, IGMPv2, IGMPv3, RSTP, MSTP
Remote Management Protocol
CLI, SNMP, RMON, OAM, DHCP, TCP/IP, UDP, HTTP, HTTPS, ICMP, Telnet, SSH, SSH-2, TFTP, MIB, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, BOOTP, RSTP, IPv4, IPv6
Encryption Algorithm
SSL 3.0, TLS 1.2
Authentication Method
TACACS+, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Features
VLAN support, ACL support, QoS, IGMP snooping, DDM, ERPS, metal housing, ZTP, security lock slot (cable lock sold separately), CoS, DSCP prioritisation, SP, WRR, bandwidth control, rate limit, proxy ARP, ARP support, DHCP server, DHCP relay, Link Aggregation, loopback detection, flow control, port mirroring, MVR, MLD snooping, automatic device discovery, firmware upgradable, schedule reboot, ISP, DLDP support, sFlow, tagged VLAN, Private VLAN, Voice VLAN, ToS, IPMB, DHCP snooping, ARP inspection, DoS protection, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, MAB, Guest VLAN, AAA, port isolation, NDP, path MTU discovery, LLDP-MED, Cable Diagnostics Function, EEE, SNTP support, 802.1x authentication, queue scheduling support, system log, Port Security, GVRP, BPDU Filter, HOL Blocking Prevention, fast leave, store and forward
Compliant Standards
IEEE 802.3at, IEEE 802.3af, IEEE 802.3bt, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3i, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3z
Built-in Devices
3 x fans
Status Indicators
Power, system, PoE max, fan, link/activity
Interfaces
16 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 8 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x console (micro-USB)
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Stand by
16.9 Watt
Included Accessories
Rubber feet
Rack Mounting Kit
Included
Compliant Standards
FCC, RoHS
Software / System Requirements
OS Required
Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% RH (non-condensing)
