EAN / GTIN:
4897098689752

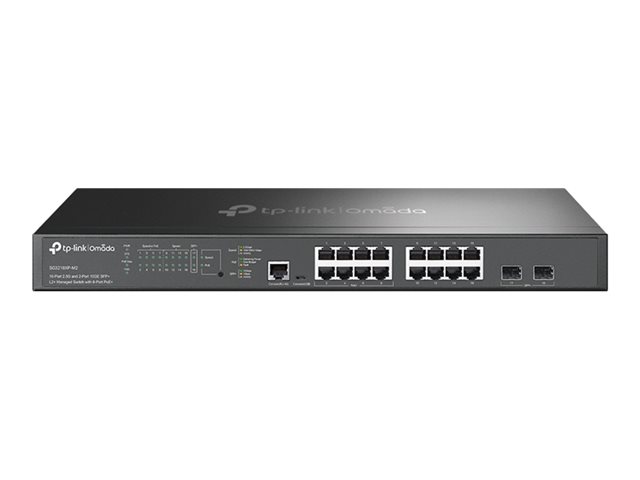

Device Type
Switch - 16 ports - L2+ - Managed
Enclosure Type
Rack-mountable
Subtype
2.5 Gigabit Ethernet
Ports
8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
Performance
Switching capacity: 120 Gbps ¦ Packet forwarding rate: 89.28 Mpps ¦ Packet buffer size: 12 Mbit
Capacity
Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 48 ¦ Static ARP entries: 128 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 256 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ IPv6 source guard entries: 100 ¦ MAC addresses per port: 64
MAC Address Table Size
16K entries
Routing Protocol
Static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
Remote Management Protocol
IPv4, IPv6, RSTP, TCP/IP, UDP, DHCP, CLI, SSH, SSH-2, ICMP, Telnet, SNMP, HTTP, HTTPS, TFTP, MIB, RMON, RMON 2, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 3, RMON 9, OAM
Encryption Algorithm
SSL 3.0, TLS 1.2
Authentication Method
TACACS+, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Features
2 fans, CoS, QoS, DSCP prioritisation, queue scheduling support, SP, WRR, rate limit, proxy ARP, ARP support, DHCP server, DHCP relay, VLAN support, Link Aggregation, BPDU Filter, TC/Root protection, loopback detection, flow control, HOL Blocking Prevention, port mirroring, IGMP snooping, fast leave, IGMP filtering, MLD snooping, MVR, device discovery, firmware upgradable, schedule reboot, GVRP, Voice VLAN, ACL support, ToS, DHCP snooping, ARP inspection, ND detection, DoS attack prevention, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Guest VLAN, MAB, AAA, port isolation, path MTU discovery, cloud managed, ZTP, BOOTP support, LLDP-MED, Cable Diagnostics Function, EEE, SNTP support, system log, IPMB
Compliant Standards
IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3ah
Status Indicators
Power, system, link/activity, PoE max, fan, SFP+
Interfaces
8 x 2.5GBase-T RJ-45 PoE+ - 30 W ¦ 8 x 2.5GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ uplink ¦ 1 x console RJ-45 ¦ 1 x console (micro-USB)
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Included Accessories
Rubber feet
Rack Mounting Kit
Included
Compliant Standards
FCC, RoHS
Software / System Requirements
OS Required
Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% RH (non-condensing)
