EAN / GTIN:
6935364021634

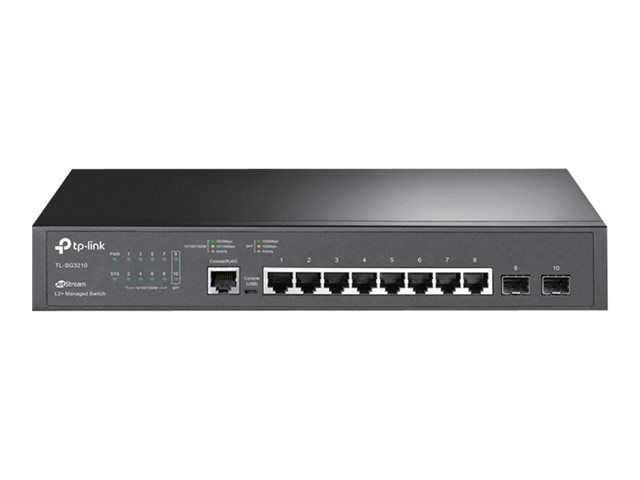

Device Type
Switch - 8 ports - L2+ - Managed
Enclosure Type
Rack-mountable
Ports
8 x 10/100/1000 + 2 x Gigabit SFP
Performance
Switching capacity: 20 Gbps ¦ Forwarding performance: 14.89 Mpps ¦ Packet buffer size: 4.1 Mbit
Capacity
IP interfaces: 16 ¦ Static routes: 48 ¦ ARP entries: 316 ¦ Static ARP entries: 128 ¦ ARP entries: 316 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ IGMP groups: 511 ¦ MAC VLAN address entries: 12 ¦ Priority queues: 8 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ IPv6 source guard entries: 100
MAC Address Table Size
8K entries
Routing Protocol
IGMPv2, IGMP, IGMPv3, MLDv2, MLD
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, CLI, ICMP
Encryption Algorithm
SSL 3.0, TLS 1.2
Authentication Method
TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)
Features
BOOTP support, ARP support, DoS attack prevention, firmware upgradable, SNTP support, STP support, RSTP support, MSTP support, TFTP support, QoS, DHCP server, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, DHCP relay, DHCP client, GVRP, port isolation, CoS, SP, Storm Control, system log, IP source guard, ARP inspection, BPDU, Link Aggregation, dual image support, MAC address authentication, AAA, LLDP-MED, proxy ARP, ZTP, EEE, WRR, loopback detection, schedule reboot, device discovery, HTTP support, store and forward
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Status Indicators
Power, system, link/activity/speed, SFP+
Interfaces
8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 ¦ 1 x micro-USB console
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Stand by
1.91 Watt
Included Accessories
Rubber feet
Rack Mounting Kit
Included
Compliant Standards
FCC, RoHS
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% RH (non-condensing)
