Startech Cisco GLC-FE-100FX Compatible SFP Module, 100BASE-FX, 100Mbps Multimode Fiber MMF Optic Transceiver, 100 Mbps, LC Connector, 2km, 1310nm, DDM

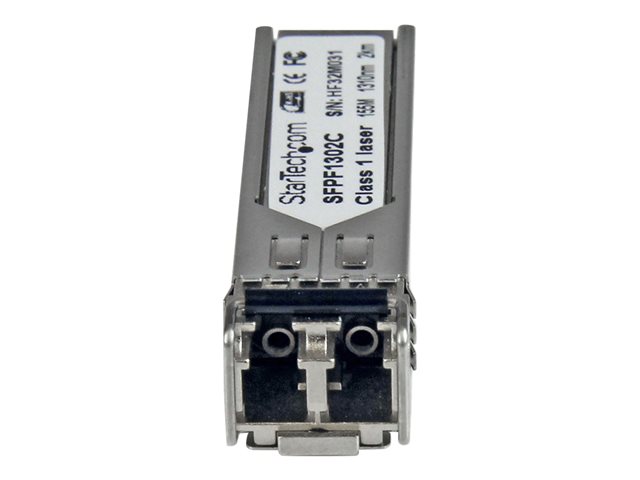

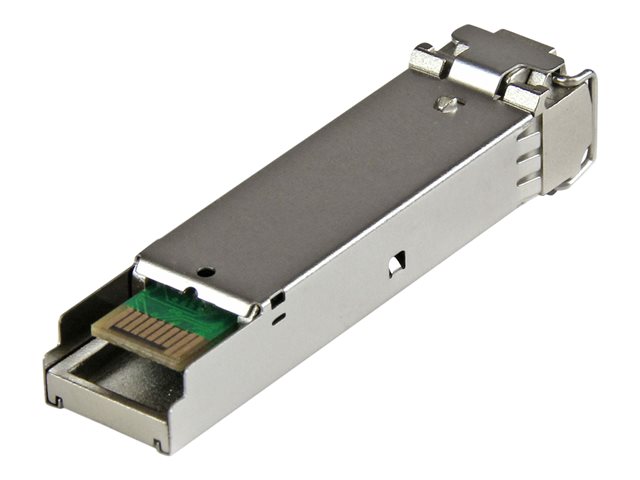

Images for illustrative purposes

Startech Cisco GLC-FE-100FX Compatible SFP Module, 100BASE-FX, 100Mbps Multimode Fiber MMF Optic Transceiver, 100 Mbps, LC Connector, 2km, 1310nm, DDM

Name: Startech Cisco GLC-FE-100FX Compatible SFP Module, 100BASE-FX, 100Mbps Multimode Fiber MMF Optic Transceiver, 100 Mbps, LC Connector, 2km, 1310nm, DDM
Brand: STARTECH.COM
SKU: MMEV931908
Price: 51.24 EUR
Availability: InStock

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (SFPF1302C) - (MMEV931908)

Startech Cisco GLC-FE-100FX Compatible SFP Module, 100BASE-FX, 100Mbps Multimode Fiber MMF Optic Transceiver, 100 Mbps, LC Connector, 2km, 1310nm, DDM, Cisco ASR920, IE2000, IE4000 - Lifetime Warranty (SFPF1302C) - SFP (mini-GBIC)

FREE Delivery on orders over €250

5 Available to Ship
Order within 10Hrs 55Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€67.55~~

€51.24 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

100 Mbps | Multi Mode Fiber | LC | 2 km (1.2 mi) | Lifetime Warranty. The SFPF1302C is a Cisco GLC-FE-100FX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 100 Mb connectivity over fiber cable, for 100BASE-FX compliant networks, with a maximum distance of up to 2 km (1.2 mi).

Technical Specifications:

Wavelength: 1310nm

Maximum Data Transfer Rate: 155 Mbps

Type: Multimode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 2 km (1.2 mi)

MTBF: 1,472,572 hours

Power Consumption: Less than 1 Watt

Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specification Summary

Product Description

Device Type

SFP (mini-GBIC) transceiver module - LC multi-mode

Form Factor

Plug-in module

Cabling Type

100Base-FX

Data Transfer Rate

155 Mbps

Optical Wave Length

1310 nm

Data Link Protocol

100Mb LAN

Max Transfer Distance

2 km

Dimensions (WxDxH)

0.9 cm x 6.5 cm x 1.4 cm

Weight

25 g

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0065030846370

General

Device Type

SFP (mini-GBIC) transceiver module

Form Factor

Plug-in module

Networking

Connectivity Technology

Wired

Cabling Type

100Base-FX

Data Link Protocol

100Mb LAN

Data Transfer Rate

155 Mbps

Optical Wave Length

1310 nm

Max Transfer Distance

2 km

Features

Full duplex capability, half duplex mode, Digital Diagnostics Monitoring Interface (DDMI)

Compliant Standards

IEEE 802.3u

Expansion / Connectivity

Interfaces

1 x Ethernet 100Base-FX - LC multi-mode

Compatible Slots

1 x SFP (mini-GBIC)

Miscellaneous

Compliant Standards

FCC, RoHS, MSA

Dimensions & Weight

Width

0.9 cm

Depth

6.5 cm

Height

1.4 cm

Weight

25 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C
