Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

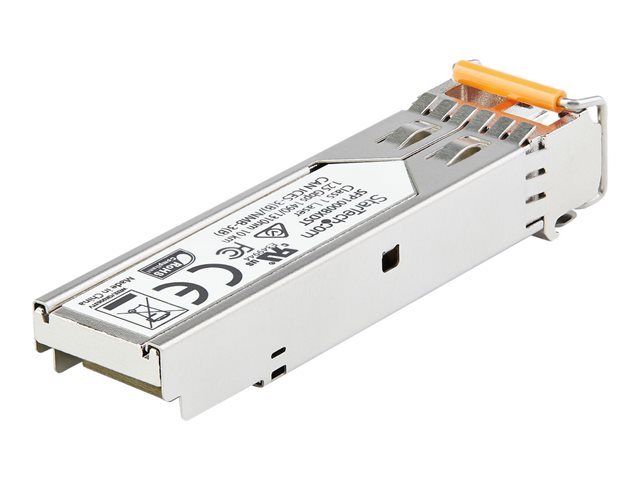

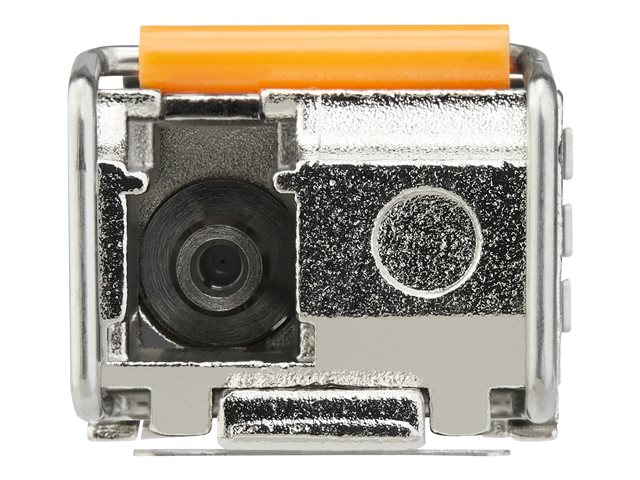

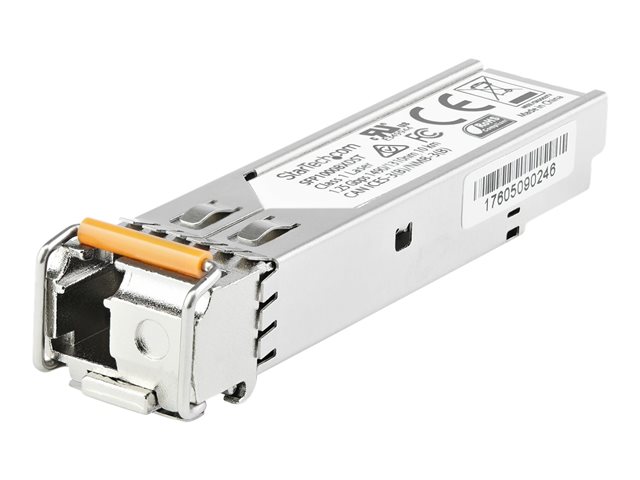

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The SFP1GBX10DES is a Dell EMC SFP-1G-BX10-D compatible downstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX10UES. They are designed, programmed and tested to work with 1000Base-BX10 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1490nmTx/1310nmRx
Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,713,222 hours
Power Consumption: < 1.3W
DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specification Summary
Product Description
Startech Dell EMC SFP-1G-BX10-D Compatible SFP Module, 1000BASE-BX-D, 1 Gigabit Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP, LC 10km, Mini GBIC Transceiver SFP, Downstream - Lifetime Warranty (SFP1GBX10DES) - SFP (mini-GBIC) transceiver module - 1GbE
Device Type
SFP (mini-GBIC) transceiver module - LC single-mode
Form Factor
Plug-in module
Cabling Type
1000Base-BX10-D
Data Transfer Rate
1 Gbps
Optical Wave Length
1490 (TX) / 1310 (RX) nm
Max Transfer Distance
10 km
OEM Manufacturer Equivalent Part Number
Dell EMC SFP-1G-BX10-D
Dimensions (WxDxH)
5.84 cm x 1.39 cm x 1.26 cm
Manufacturer Warranty
Limited lifetime warranty
