Startech MSA Uncoded Compatible SFP Module, 100BAS

Images Manuals

Startech MSA Uncoded Compatible SFP Module, 100BASE-LX, 100MbE Single Mode (SMF) Fiber Optic Transceiver, 100Mb Ethernet SFP, LC Connector, 10km, 1310

Images for illustrative purposes

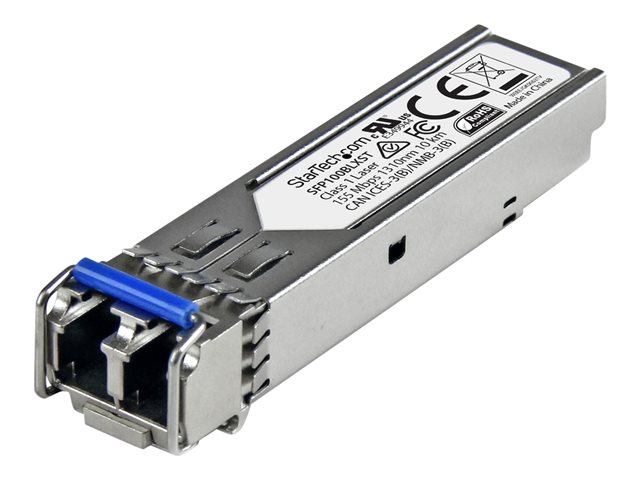

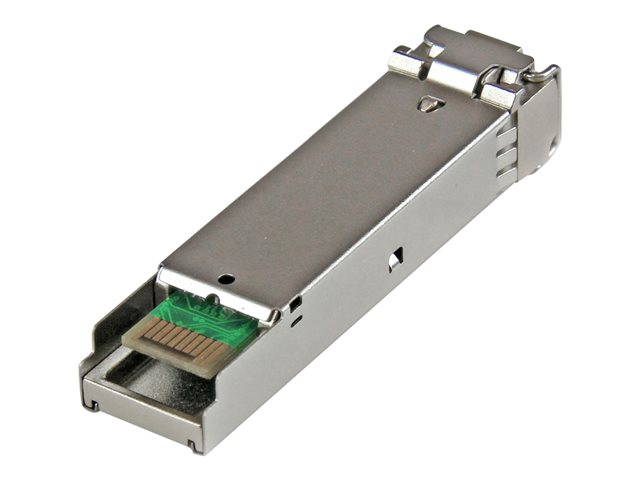

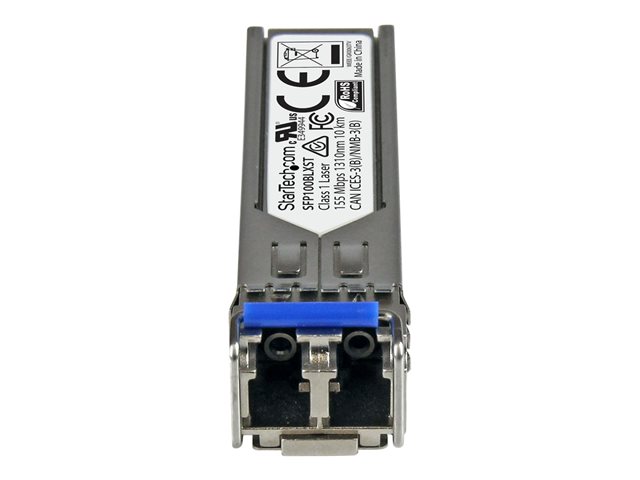

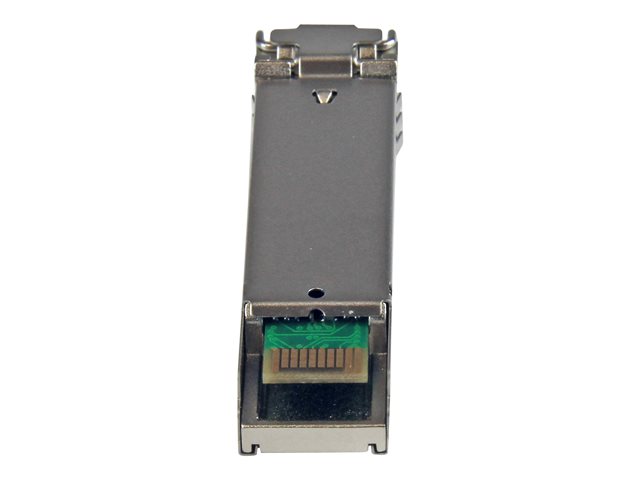

Startech MSA Uncoded Compatible SFP Module, 100BASE-LX, 100MbE Single Mode (SMF) Fiber Optic Transceiver, 100Mb Ethernet SFP, LC Connector, 10km, 1310

Name: Startech MSA Uncoded Compatible SFP Module, 100BASE-LX, 100MbE Single Mode (SMF) Fiber Optic Transceiver, 100Mb Ethernet SFP, LC Connector, 10km, 1310
Brand: STARTECH.COM
SKU: MMEV934154
Price: 58.66 EUR
Availability: InStock

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (SFP100BLXST) - (MMEV934154)

Startech MSA Uncoded Compatible SFP Module, 100BASE-LX, 100MbE Single Mode (SMF) Fiber Optic Transceiver, 100Mb Ethernet SFP, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module, 100Mbps - Lifetime Warranty (SFP100BLXST) -

FREE Delivery on orders over €250

5 Available to Ship
Order within 11Hrs 54Mins for: Delivery (8 Jun or 9 Jun)

RRP ~~€76.36~~

€58.66 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The SFP100BLXST is an MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1310nm

Maximum Data Transfer Rate: 155 Mbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

Power Consumption: Less than 1 Watt

DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Specification Summary

Product Description

Device Type

SFP (mini-GBIC) transceiver module - LC single-mode

Form Factor

Plug-in module

Cabling Type

100Base-LX

Data Transfer Rate

100 Mbps

Optical Wave Length

1310 nm

Data Link Protocol

100Mb LAN

Max Transfer Distance

10 km

Dimensions (WxDxH)

1.39 cm x 5.84 cm x 1.26 cm

Weight

30 g

Manufacturer Warranty

Limited lifetime warranty

Designed For

P/N: US100A20SFP

Specifications

EAN / GTIN:

0065030873468

General

Device Type

SFP (mini-GBIC) transceiver module

Form Factor

Plug-in module

Colour

Silver

Networking

Connectivity Technology

Wired

Cabling Type

100Base-LX

Data Link Protocol

100Mb LAN

Data Transfer Rate

100 Mbps

Optical Wave Length

1310 nm

Max Transfer Distance

10 km

Features

Half duplex mode, full duplex mode, Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)

Compliant Standards

IEEE 802.3u

Expansion / Connectivity

Interfaces

1 x Ethernet 100Base-LX - LC single-mode x 2

Miscellaneous

Compliant Standards

FCC, RoHS, WEEE, MSA, RCM

Dimensions & Weight

Width

1.39 cm

Depth

5.84 cm

Height

1.26 cm

Weight

30 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Humidity Range Operating

5 - 95%

Compatibility Information

Designed For

P/N: US100A20SFP
