Startech MSA Uncoded SFP Module, 100BASE-BX, 100Mb

Images Manuals

Startech MSA Uncoded SFP Module, 100BASE-BX, 100Mb Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP Transceiver (SMF), LC 10km , Mini GBIC Trans

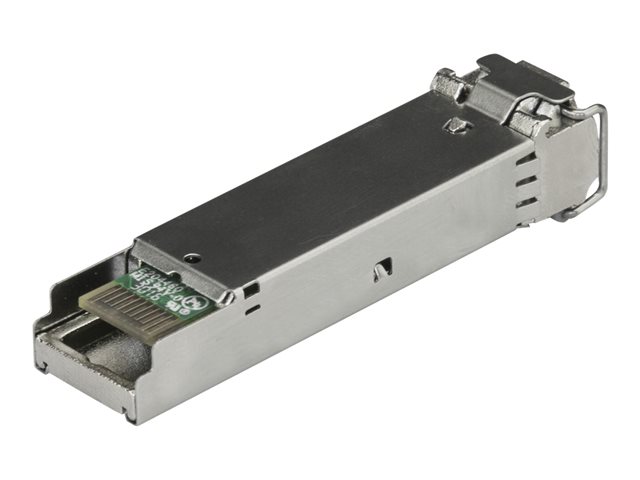

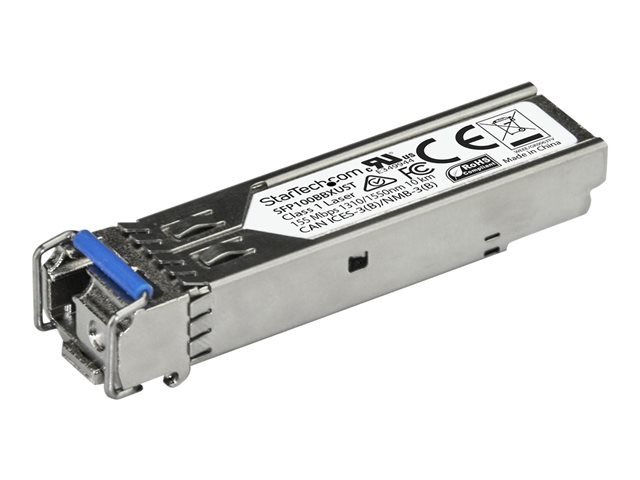

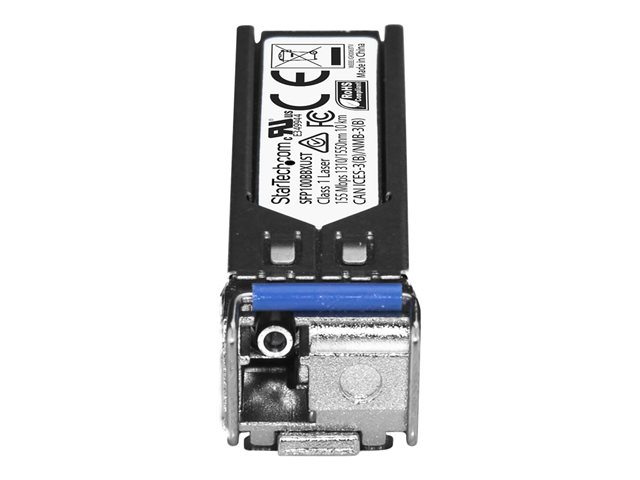

Images for illustrative purposes

Startech MSA Uncoded SFP Module, 100BASE-BX, 100Mb Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP Transceiver (SMF), LC 10km , Mini GBIC Trans

Name: Startech MSA Uncoded SFP Module, 100BASE-BX, 100Mb Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP Transceiver (SMF), LC 10km , Mini GBIC Trans
Brand: STARTECH.COM
SKU: ECE10370972
Price: 15.73 EUR
Availability: OutOfStock

View all STARTECH.COM Repeaters | Tranceivers - Visit the STARTECH.COM Store (SFP100BBXUST) - (ECE10370972)

Startech MSA Uncoded SFP Module, 100BASE-BX, 100Mb Ethernet Bi-Directional (BiDi) Fiber Single Strand SFP Transceiver (SMF), LC 10km , Mini GBIC Transceiver SFP Module, Upstream BiDi - Lifetime Warranty (SFP100BBXUST) - SFP (mini-GBIC) transceiver module

FREE Delivery on orders over €250

0 Available to Ship
Restock 22-Jun-2026 Estimated, Out of Stock Prices are Estimated.

€15.73 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The SFP100BBXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP100BBXDST. They are designed, programmed and tested to work with 100BASE-BX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

Wavelength: 1310nmTx/1550nmRx

Maximum Data Transfer Rate: 155 Mbps

Type: Single Mode Fiber

Connection Type: LC Connector

Maximum Transfer Distance: 10 km (6.2 mi)

Power Consumption: Less than 1 Watt

DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Specification Summary

Product Description

Device Type

SFP (mini-GBIC) transceiver module - LC single-mode

Form Factor

Plug-in module

Cabling Type

100Base-BX

Data Transfer Rate

100 Mbps

Optical Wave Length

1550 (RX) / 1310 (TX) nm

Data Link Protocol

100Mb LAN

Max Transfer Distance

10 km

Dimensions (WxDxH)

1.39 cm x 5.84 cm x 1.26 cm

Weight

30 g

Manufacturer Warranty

Limited lifetime warranty

Specifications

EAN / GTIN:

0065030873512

General

Device Type

SFP (mini-GBIC) transceiver module

Form Factor

Plug-in module

Colour

Silver

Networking

Connectivity Technology

Wired

Cabling Type

100Base-BX

Data Link Protocol

100Mb LAN

Data Transfer Rate

100 Mbps

Optical Wave Length

1550 (RX) / 1310 (TX) nm

Max Transfer Distance

10 km

Features

Digital Optical Monitoring (DOM) support, Digital Diagnostics Monitoring (DDM)

Compliant Standards

IEEE 802.3u

Expansion / Connectivity

Interfaces

1 x Ethernet 100Base-BX - LC single-mode

Miscellaneous

Compliant Standards

cUL, FCC, RoHS, WEEE, MSA

Dimensions & Weight

Width

1.39 cm

Depth

5.84 cm

Height

1.26 cm

Weight

30 g

Manufacturer Warranty

Service & Support

Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

70 °C

Humidity Range Operating

5 - 95%
