Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty. The SFP1000LXST is an MSA compliant fiber SFP transceiver that's designed, programmed and tested to work with 1000BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
Power Consumption: Less than 1 Watt
DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Features Summary
- Reliable connectivity

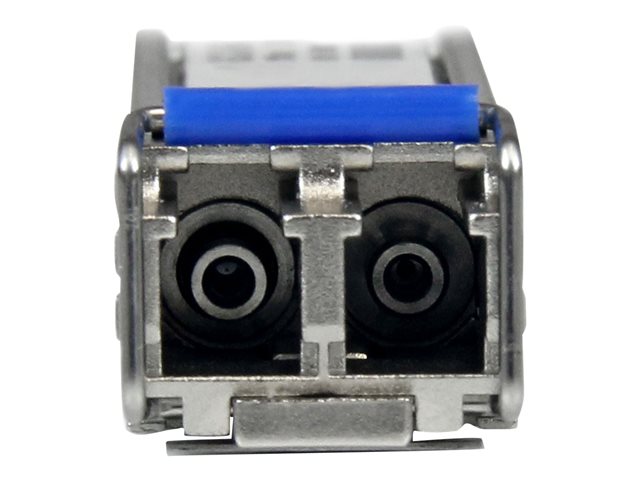

The MSA Uncoded Compatible SFP Module features dual LC single-mode connectors, ensuring a stable and efficient connection for your networking needs. - Wide operating range
This module functions effectively in a temperature range of 0°C to 70°C and a humidity range of 5% to 95%, making it suitable for various settings. - High data transfer rate
With a data transfer rate of 1.25 Gbps, this transceiver module supports smooth data communication for optimal network performance. - Long-distance support
The module can transmit data over distances of up to 10 km, allowing for flexible network designs without compromising on speed. - Advanced monitoring capabilities
This product includes features like Digital Optical Monitoring and Digital Diagnostics Monitoring to enhance performance management and reliability.
Specification Summary
Product Description
Startech MSA Uncoded Compatible SFP Module, 1000BASE-LX, 1GbE Single Mode (SMF) Fiber Optic Transceiver, 1GE Gigabit Ethernet SFP, LC Connector, 10km, 1310nm, DDM, Mini GBIC Module - Lifetime Warranty (SFP1000LXST) - SFP (mini-GBIC) transceiver module - 1GbE
Device Type
SFP (mini-GBIC) transceiver module - LC single-mode
Form Factor
Plug-in module
Data Transfer Rate
1.25 Gbps
Optical Wave Length
1310 nm
Max Transfer Distance
10 km
Dimensions (WxDxH)
1.39 cm x 5.84 cm x 1.26 cm
Manufacturer Warranty
Limited lifetime warranty
Designed For
P/N: US1GA30SFP, US1GC30SFP
