Zyxel SFP-SX-E - SFP (mini-GBIC) transceiver modul

Images Manuals

Images for illustrative purposes

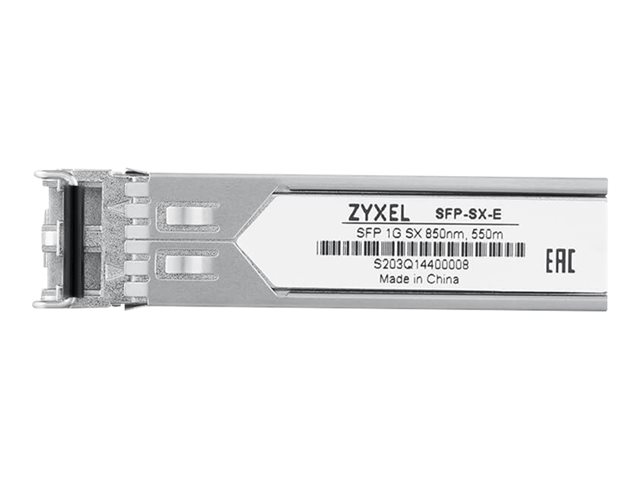

Zyxel SFP-SX-E

View all ZYXEL Repeaters | Tranceivers - Visit the ZYXEL Store (SFP-SX-E-ZZBD01F) - (MMECB33165)

SFP-SX-E - SFP (mini-GBIC) transceiver module - 1GbE

Hot-pluggable with maximum flexibility
Supports digital diagnostics monitoring interface (DDMI)

FREE Delivery on orders over €250

1 Available to Ship
Order within 22Hrs 30Mins for: FREE Delivery (9 Jun or 10 Jun)

€295.72 Incl Vat

Wishlist Compare

Overview

1000BASESX SFP MTHDULE SHORT RANGE 550M (10 PCS)

Features Summary

Hot-pluggable with maximum flexibility
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.
Supports digital diagnostics monitoring interface (DDMI)
DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.

Specification Summary

Product Description

Zyxel SFP-SX-E - SFP (mini-GBIC) transceiver module - 1GbE

Device Type

SFP (mini-GBIC) transceiver module - LC multi-mode

Packaged Quantity

10 (specifications are for single item)

Form Factor

Plug-in module

Cabling Type

1000Base-SX

Data Transfer Rate

1 Gbps

Optical Wave Length

850 nm

Data Link Protocol

1GbE

Max Transfer Distance

550 m

Manufacturer Warranty

5-year warranty

Specifications

EAN / GTIN:

4718937619214

General

Packaged Quantity

10 (specifications are for single item)

Device Type

SFP (mini-GBIC) transceiver module

Form Factor

Plug-in module

Networking

Connectivity Technology

Wired

Cabling Type

1000Base-SX

Data Link Protocol

1GbE

Data Transfer Rate

1 Gbps

Optical Wave Length

850 nm

Max Transfer Distance

550 m

Features

Digital Diagnostics Monitoring Interface (DDMI)

Expansion / Connectivity

Interfaces

1 x Ethernet 1000Base-SX - LC multi-mode

Manufacturer Warranty

Service & Support

Limited warranty - 5 years
