Range/Series Overview
IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

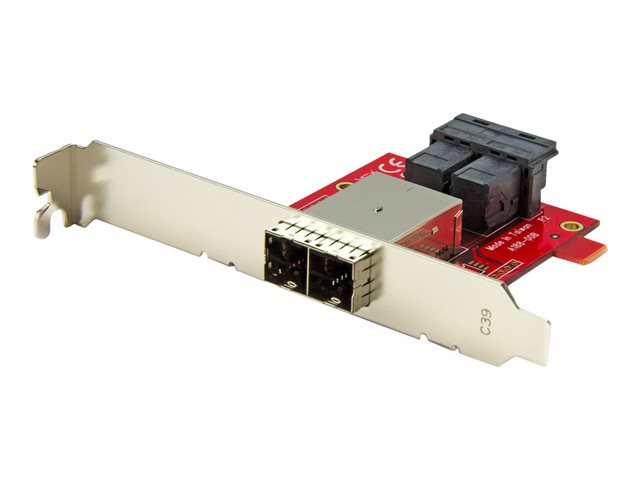

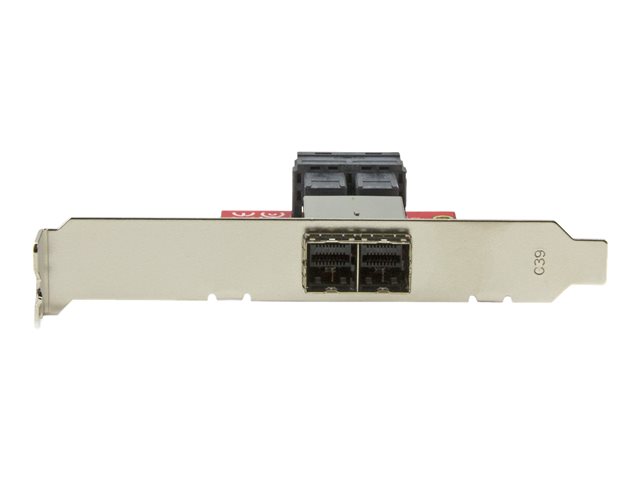

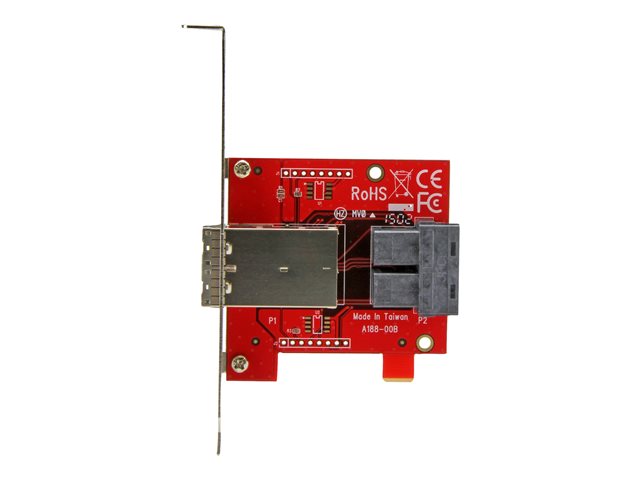

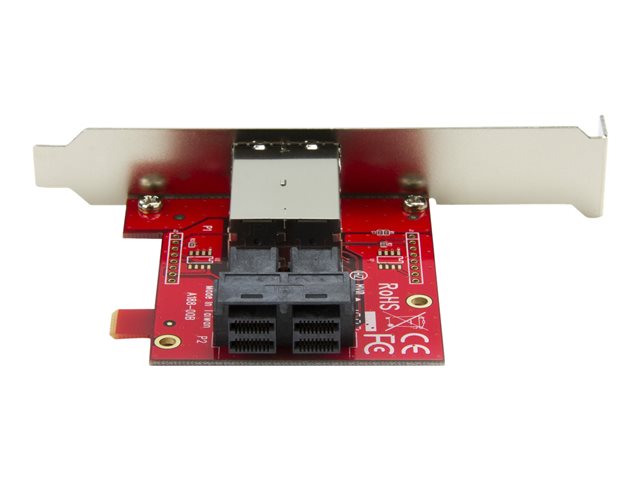

Convert two internal SFF-8643 ports into two external SFF-8644 ports. This Mini-SAS adapter lets you convert two internal SFF-8643 ports on a controller card into two external SFF-8644 ports. This enables you to connect external SAS or SATA drives in devices such as a Direct Attached Storage (DAS) device to an internal backplane or SAS controller for additional storage.
The adapter can connect up to eight drives in total and is compatible with 12Gbps SAS drives as well as 6Gbps SATA drives. For a hassle-free installation, you can mount the adapter into any new or legacy desktop expansion slot, including: PCI, AGP, and PCIe. To ensure compatibility with most computer cases, full-profile and low-profile mounting brackets are included.
Specification Summary
Product Description

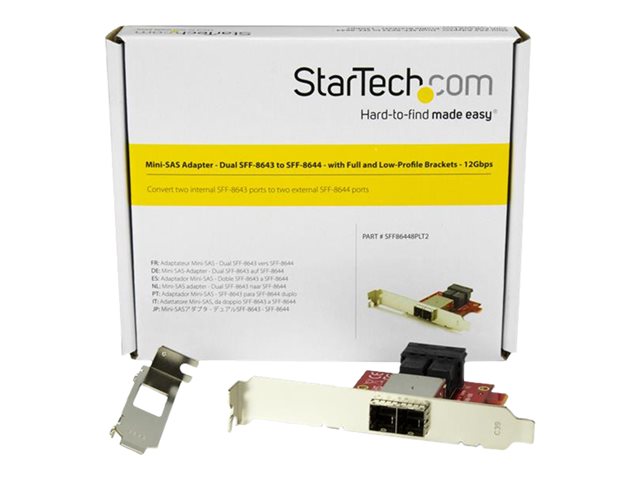

StarTech Mini-SAS Adapter - Dual SFF-8643 to SFF-8644 - with Full and Low-Profile Brackets - 12Gbps - SAS internal to external panel
Type
SAS internal to external panel
Interface Speed
SAS 12Gbit/s
Connector
2 x 36 pin 4x Mini SAS HD (SFF-8643) - female
Connector (Second End)
2 x 36 pin 4x Mini SAS HD (SFF-8644) - female
Manufacturer Warranty
2-year warranty
