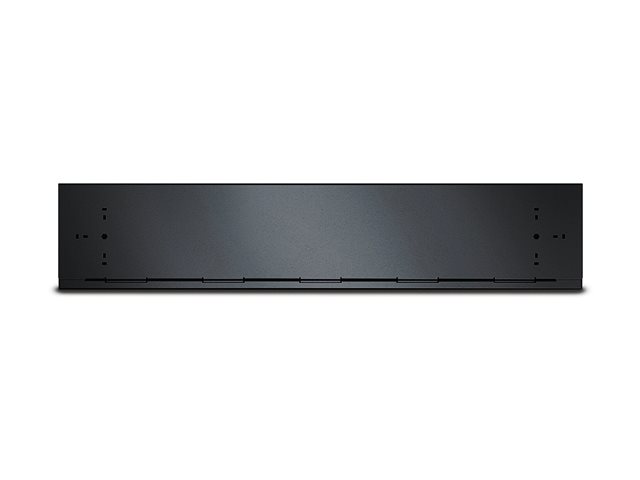

APC Service Bypass Panel

View all APC Power Strips | Adapters - Visit the APC Store (SBP3000RMI) - (MME2709216)

Service Bypass Panel - power distribution unit - 3000 VA

Quick Transfer Rate
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load

FREE Delivery on orders over €250

11 Available to Ship
Order within 10Hrs 0Mins for: FREE Delivery (8 Jun or 9 Jun)

€469.75 Incl Vat

Wishlist Compare

Overview

Range/Series Overview

IMPORTANT: This Range/Series overview section describes the range of which this product belongs. Features of different versions might be mentioned and may not apply to the specific product on this page. Please view Specs for specification of product.

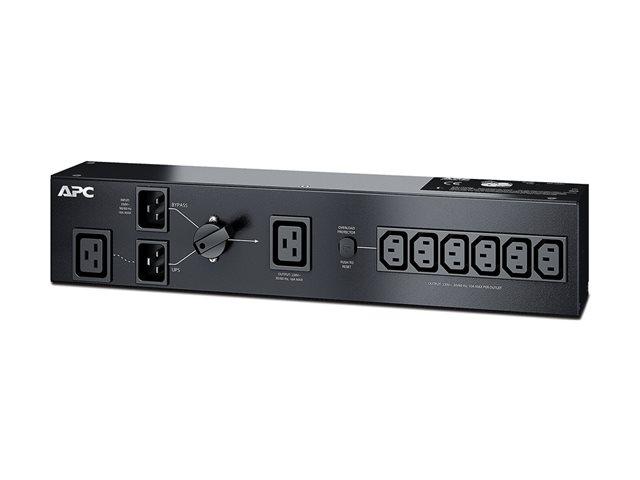

The APC SBP3000RMI Service Bypass Panel is a reliable solution designed to ensure uninterrupted power to your critical equipment during UPS maintenance or upgrades. Engineered for compatibility with APC Smart-UPS and Smart-UPS On-Line, this panel requires IEC C20 input and offers (6) IEC C13, (1) IEC C19 outlets. The panel is 2U in height with 230V input and output voltage. This panel comes with a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.

Features Summary

Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
(3) Breaker maintenance bypass panel to isolate the UPS from the critical load
Load test port provides simple connection for full testing of a Symmetra PX UPS

Specification Summary

Product Description

APC Service Bypass Panel - power distribution unit - 3000 VA

Device Type

Power distribution unit - rack-mountable

Rack Size

Weight

2.1 kg

Input Voltage

AC 230 V

Output Voltage

AC 230 V

Power Capacity

3000 VA

Input Connectors

2 x power IEC 60320 C20

Output connectors

2 x power IEC 60320 C19 ¦ 6 x power IEC 60320 C13

Colour

Black

Dimensions (WxDxH)

43.2 cm x 7.6 cm x 8.9 cm

Manufacturer Warranty

2-year warranty

Designed For

P/N: AR3003, AR3003SP, AR3357X674, SMT2200I-AR, SMT2200R2I-AR, SMT3000I-AR, SMT3000R2I-AR, SMX1500RMNCUS, SMX1500RMUS, SMX750US, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT1500XLI, SRT2200XLI-KR, SRT5KRMXLW-TW, SRTL2K2RM1UWC, SRTL3KRM1UIC, SRTL3KRM1UINC, SRTL3KRM1UWC, SRTL3KRM1UWNC

Specifications

EAN / GTIN:

0731304266747

General

Device Type

Power distribution unit - rack-mountable

Height (Rack Units)

Colour

Black

Power Device

Input Voltage

AC 230 V

Input Voltage Range

AC 220 - 240 V

Frequency Required

50/60 Hz

Input Connectors

2 x power IEC 60320 C20

Power Output Connectors Details

2 x power IEC 60320 C19 ¦ 6 x power IEC 60320 C13

Output Voltage

AC 230 V

Max Electric Current

16 A

Power Capacity

3000 VA

Circuit Protection

Circuit breaker

Miscellaneous

Cables Included

Power cable 2.5 m

Rack Mounting Kit

Included

Features

Built-in bypass switch, overload protection

Compliant Standards

VDE, RoHS, REACH

Manufacturer Warranty

Service & Support

Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature

0 °C

Max Operating Temperature

40 °C

Humidity Range Operating

0 - 95%

Dimensions & Weight

Width

43.2 cm

Depth

7.6 cm

Height

8.9 cm

Weight

2.1 kg

Dimensions & Weight (Shipping)

Shipping Width

46.3 cm

Shipping Depth

29.5 cm

Shipping Height

15.1 cm

Shipping Weight

3 kg

Compatibility Information

Designed For

P/N: ACF600, AR3003, AR3003SP, AR3180G, AR3357X674, DLT3000RMI2U, NBES0302, NBPD0121, NBPD0160, NBPD0160A, NBPD0171, NBPD0172, NBPD0180, NBRK0201, NBRK0551, NBWL0355, NBWL0355A, NBWL0356A, SMC1000, SMC1000-2U, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC1500, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500IC, SMC2000I, SMC2000I-2U, SMC3000I, SMC3000RMI2U, SMT1000RM2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200I, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2U, SMT2200RMI2U, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2U, SMT3000RMI2U, SMT3000RMI2UC, SMT3000RMI2UNC, SMT750RM2U, SMX1000, SMX1000I, SMX1000US, SMX1500RM2U, SMX1500RM2UNC, SMX1500RMI2U, SMX1500RMNCUS, SMX1500RMUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV2U-BR, SMX3000RMHV2U, SMX3000RMHV2UNC, SMX750, SMX750I, SMX750-NMC, SMX750US, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500XLI, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT2200XLI-KR, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000RMXLW-IEC, SRT3000XLI, SRT3000XLW-IEC, SRT5KRMXLW-TW, SRT6KRMXLI, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SRTL2K2RM1UWC, SRTL3KRM1UIC, SRTL3KRM1UINC, SRTL3KRM1UWC, SRTL3KRM1UWNC, SUA2200ICH-45, SUA2200UXICH, SUA2200XL-NETPKG, SUA3000ICH, SUA3000ICH-45, SUA3000I-IN, SUA3000UXI, SUA3000UXICH, SUA3000XL-NETPKG, SURT10000RMXLT6U, SURT10KRMXL6U-TF5, SURT15KRMXLT, SURT15KRMXLT-TF5, SURT20KRMXLT, SURT20KRMXLT-TF5, SURT3000XLICH, SURT3000XLI-ET, SURT6000RMXLT3U, SURT6KRMXL3U-TF5, SURT8000RMXLT6U, SURT8KRMXL6U-TF5, SURTA1500RMXL2U, SURTA2200RMXL2U, SURTA3000RMXL3U, SURTD3000RMXLI, SURTD3000RMXLT3U, SURTD3000XLI, SURTD3000XLI-CC, SURTD3KRMXL3U-TF5, SURTD5000RMXLP3U, SURTD5000RMXLT3U, SURTD6000RMXLP3U, SYA12K16RMICH, SYA16K16RMICH, SYA8K16RMICH, SYAF16KRMICH
